2 Level Push In Din Rail PE Ground Terminal Block JPTTB 1.5 PA66 V0

Categories Push In Terminal Block
Brand Name: WKDQ
Model Number: JPTTB 1.5/S-PE
Certification: CE/RoHS/CQC/ISO 9001
Place of Origin: China
MOQ: 50 PCS
Payment Terms: T/T, Paypal, Western Union, etc
Delivery Time: 2-7 days
Packaging Details: box
Model No.: JPTTB 1.5/S-PE
Color: Creen-Yellow
Connection method: Push-in connection
Country of origin: China
Standard: IEC 60947-7-1
Material: Flame resistant Nylon /PA66 V0
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

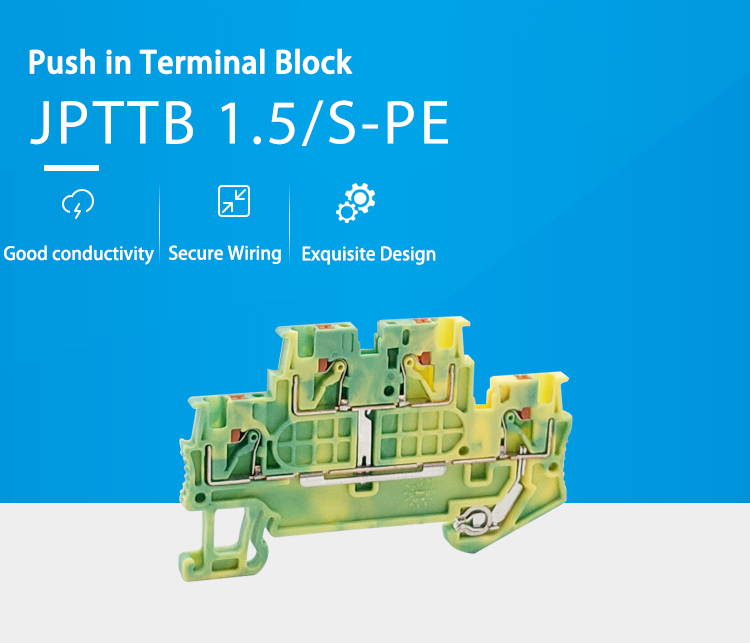

2 Level Push In Din Rail PE Ground Terminal Block JPTTB 1.5 PA66 V0

JPTTB 1.5/S-PE 2 Level Push in Din Rail PE Ground Terminal Block


1. DESCRIPTION:

2 Level ultra-thin thickness saving space.With advanced push in technology, wiring easily and quickly, just push in directly and realse wire just push the orange button. Insert forces reduced by 50%. V0 Flame resistant PA66 material and copper conductor.

it is suitable for various applications.


l The Tool- Free design and the push in modular terminal block and the direct push-in connection enable easy

l Convenient insertion, thanks to 50% lower insertion force.

l Safe wiring and operation, thanks to the color-coded push button.

l The push button permits easy conductor release using any type of tool, without direct contact with live parts.


Technical Parameters

Model No.JPTTB 1.5/S-PE
ColorGreen-yellow
Length/Height/Wide (mm)66*41*3.5
Connection methodPush-in connection
MaterialFlame resistant Nylon PA66 V0
Rated Voltage/Current500V/16A
Cross section, solid/soft Cable0.14-1.5mm²
Conductor Size26-16AWG
Mounting TypeDIN Rail NS 35
StandardIEC 60947-7-1
LOGOWKDQ, LOGO can be customized
Packing Detail6.4g/pc, 50PCS/BOX
CertificationCE/RoHS/CQC/ISO 9001
Place of originZheJIang, China
