Hot Side Seal Machine 180bpm 12kw Photoelectric Control LDPE HDPE

Categories Sealing Bag Making Machine
Brand Name: XINLEI
Model Number: XLRQ-600
Certification: Letters Patent
Place of Origin: JIANGYIN
MOQ: 1set
Price: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 2 set per month
Delivery Time: 20-30 work days
Packaging Details: Wrapping Film
Speed: 180pcs/min
Material: LDPE,HDPE
Voltage: 380V50Hz
Function: Make hot cutting bags
Condition: New
Dimension(l*w*h): 9050*2800*1600mm
Weight: 2800kg
Power: 12kw
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Hot Side Seal Machine 180bpm 12kw Photoelectric Control LDPE HDPE

Hot Sealing Machine For Bag Making Of Hot Sealing And Cutter 180bags/min


The machine is center controller by PLC,display and operation in touch screen,photoelectric control,main drive and feeding control by servo motor,with functions of automatic counting,punching,conversion of white bag and color bag,and with alarm when have no material in machine.The machine is equipped with pearlised film,ultrasonic,tap and bottom gusset functions.The machine fits for making many kinds of hot cutting bag.


Main Technical Paremeters

MaterialLDPE,HDPE,etc.
Machine Speed200pcs/min
Unwinding Width≤1200mm
Unwinding Diameter≤800mm
Bag Speed180pcs/min
Bag Width≤600mm
Bag Length≤550mm
Power Supply380V50Hz
Total Power12KW
Dimension9050*2800*1600mm
Machine Weight2800KG

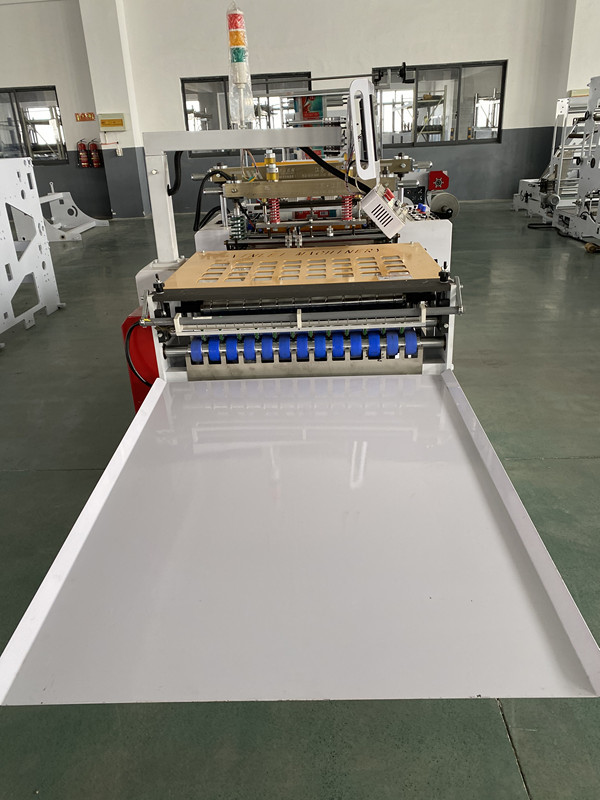

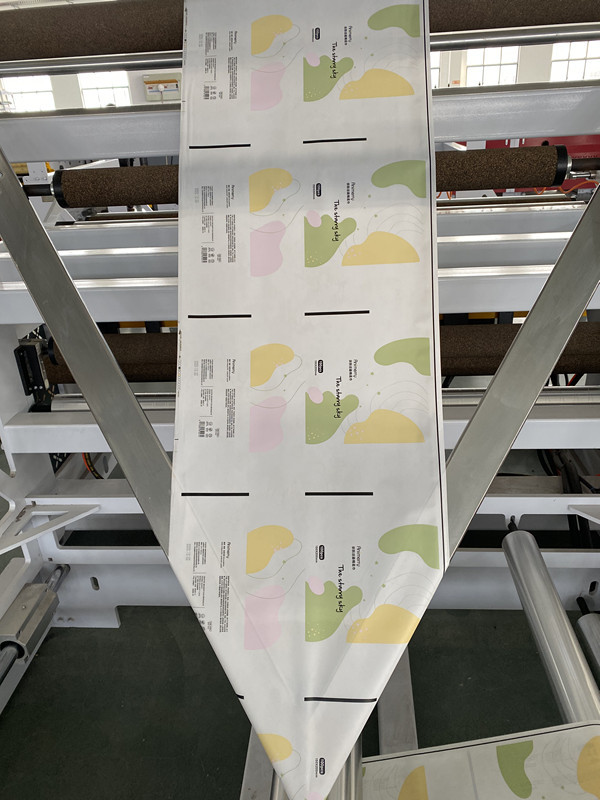

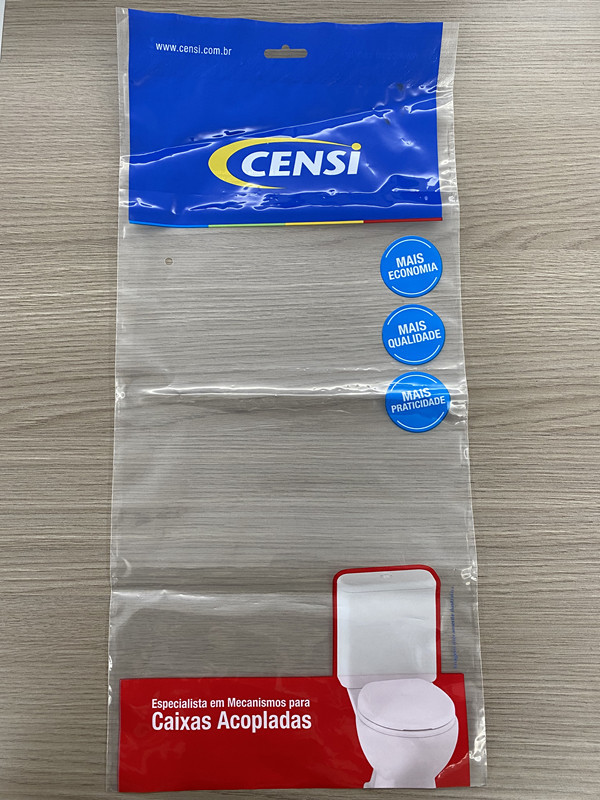

Pictures as reference


Detailed Images
