Rectangle Stainless Steel Japanese Teppanyaki Grill Table Built in Griddle

Categories Teppanyaki Grill Table
Brand Name: GREENARK
Model Number: TR05-02-21-90-00
Certification: CE, CSA
Place of Origin: Shanghai, China
MOQ: 1set
Price: Negotiable
Payment Terms: T/T, L/C, West Union
Supply Ability: 500 units per month
Delivery Time: Within 15 to 30 Work Days
Packaging Details: Standard Exporting Wooden Case
Diameter: 1200/1600/2000/2400mm
Width: 850mm
Height: 800mm
Material: Food Grade Special Alloy Steel
Temperature Range: 50-300℃
Heating: Electric/LPG/Natural Gas/Induction
Voltage: 380V/220V
Power: 8KW/5KW
Heating Area: 500*380 mm
Exhaustion: Optional built-in air blower
Purification: Built-in fume purifier
Thickness of griddle plate: 20mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

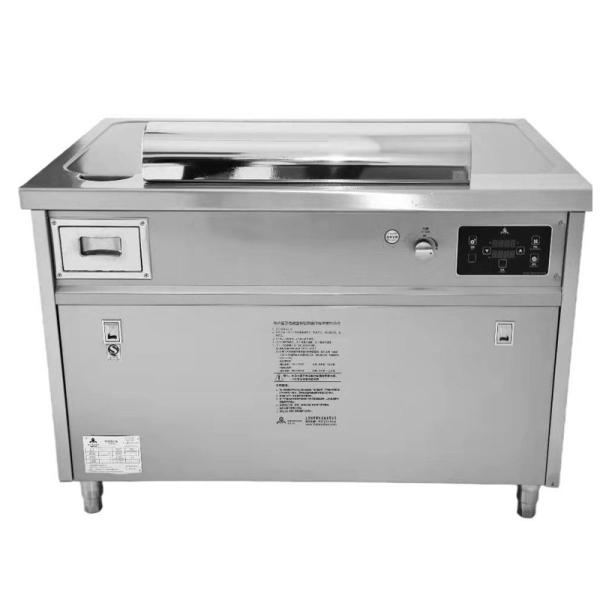

Rectangle Stainless Steel Japanese Teppanyaki Grill Table Built in Griddle

Rectangle Stainless Steel Japanese Teppanyaki Grill Table Built in Griddle

GREENARK Electromagnetic (Induction) Teppanyaki Grill Tables is the most attractive and valuable TEPPANYAKI GRILL TABLE SERIES among the whole CHUANGLV products. Why say this? The market has tested the electromagnetic teppanyaki grill table for us and certified that whoever regards customers' real requirement as the first position will win the market.
The electromagnetic system is the exclusive design by Chuanglv Group and we are also the only manufacturer and exporter in China producing the electromagnetic plate and motor for teppanyaki equipment by ourselves. The electromagnetic or induction heating system contains the German Infinon power module and NEC rectifier. The circuit board material is in conformity with UL and Rohs certification, the master chip is with imported 32's DSP digital processing unit, and the 6-layered heat resistant insulative
material makes the motor work for a much longer time. Electromagnetic radiation is only 18k-35k, which is much lower than the European standard limit of 100k. The circuit board material is in conformity with UL and Rohs certification, the master chip is with imported 32's DSP digital processing unit, and the 6-layered heat resistant insulative material makes the motor work for a much longer time. Electromagnetic radiation is only 18k-35k, which is much lower than the European standard limit of 100k.

The grill body is made of German 304 stainless steel, heating plate made of special alloy steel with thickness of 20mm, one-piece unibody, no deformation or discoloration after long time use. Operation panel, waste container and filter made of 1.0mm stainless steel, and the air inlet made of 1.5mm mirror surface stainless steel. Amazing craftmanship of cutting, bending and polishing by imported intelligent processing machines.
The built-in air blower for customers' option has a high temperature resistant and makes the teppanyaki grill equipment with low noise. And the other option of built-in Taiwan Electrostatic Fume Purifier can absorb fume particles with diameter of over 0.1mm with processing efficiency of 93%-97%. High and low voltage dust collecting plate separation technology, easy for cleaning.
Advanced point discharging technology. Power-off protection device for output disorder. Certification: ISO 9001-2008; CE; CSA; UL certification is in process.The cooking plate is made of special alloy steel of 20mm thickness. The one unibody mould to avoids deformation or color change.


Product NameRectangle Stainless Steel Japanese Teppanyaki Grill Table Built in Griddle
HeatingElectric/LPG/Natural Gas/Induction
MaterialStainless Steel 304/ Food Grade Special Alloy Steel
Rated Heat Power380V/220V, 8KW/5KW
Cooking Area500*380 mm
Capacity7/8/9/10 Seats
Grill Dimension1200×850×800 mm/1600*850*800mm/2000*850*800mm/customized
Optional Configurationbuilt-in air blower & fume purifier
PurificationElectrostatic Fume Purifier
Table DecorationRegular design/customization
ApplicationOutdoor barbecue, restaurant, hotel, food plazza, buffet car, etc.
Cookable FoodBeef, mutton, chicken, fish, shellfish, vegetables, rice, noodles, etc.
Lead Time15-30 working days
PackagingStandard Shipping Wooden Case
BrandGREENARK/OEM
CertificationISO9001-2008, CE available; CSA, UL in progress

FAQ: Why choose Chuanglv GREENARK Teppanyaki?


§ Operation panel, waste container and filter made of 1.0mm stainless steel, and the air inlet made of 1.5mm mirror surface stainless steel.


§ Amazing craft of cutting, bending and polishing by imported intelligent processing machines.


§ The circuit board material is in conformity with UL and ROHS certification, the master chip is with imported 32's DSP digital processing unit, and the 6-layered heat-resistant insulative material makes the motor work for a much longer time;


§ Gas consumption: LPG 0.29m3/h (0.6kgs), pipeline gas 0.8m3/h.


§ Built-in Taiwan Electrostatic Fume Precipitator:
High and low voltage dust collecting plate separation technology, easy to clean;


§ Certification: ISO 9001-2008; CE; CSA & UL certification in progress.



Comparison Of Three Heating Methods
Heating MethodElectromagnetic/InductionLPGPipeline Natural Gas
Regular Parameter380v/50hz/8kw/3-Phase8kw(≈23mj/m³)8kw(≈41mj/m³)
Rated Pressure/2800pa±500pa2000pa±10%
Consumption10kwh0.29m³/0.6kgs/h0.8m³/h
Cooking Area450*400mmφ500mmφ500mm
Enlarged Cooking Area600*400mm//
Temp Rising6min to Reach 260℃15min to Reach 260℃15min to Reach 260℃
Temp Difference Between Real Temp & Indicator Temp±5℃±20℃±20℃
HomeothermyGoodPoorPoor
AdventageSafe, high efficiency, easy operation and temperature control; electromagnetic radiation only 18-30kThermostat control, automatic electronic ignition device, automatic flame failure protection deviceThermostat control, automatic electronic ignition device, automatic flame failure protection device

Comparison Of Three Heating Methods

Cold starting to preheat(til reaching gradient range of 250 in the center of elliptical surface of table)

Project/ParameterElectric TypeGas type
ElectromagneticElectric heating tubeAtmospheric burner
Manufactured GasLPGNatural gas
Input Power
KW(m/h
8KW8KW
2.28m³/h0.285m³/h0.8m³/h
Preheating time8MIN25MIN30MIN
Consumptian
(kw/m³)
1.073.334/0.143m³(average)
Cost(RMB)1.183.662.23
Note:Costs in above table calculated based on charges as below
Electricity charge:RMB 1.10/kw,Gas charge:RMB 7.33/kgs(0.47m²)
