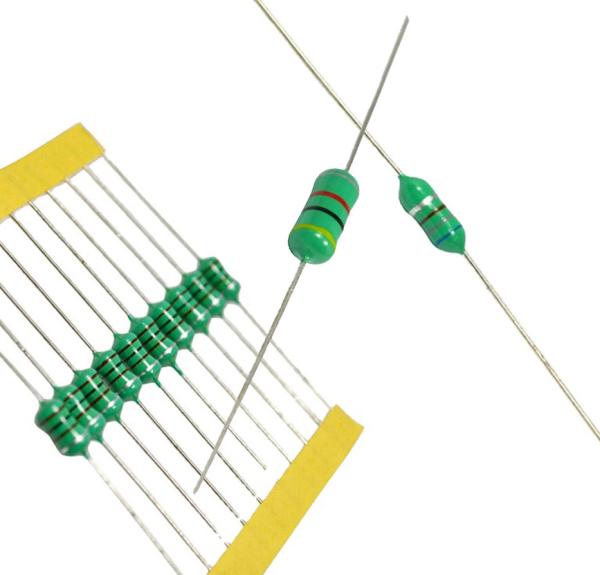

Coated Power Axial Leaded Inductors 0.1uH Inductance Range

Axial Leaded Power Inductors With Inductance Range Of 0.1uH To 39mH

Features:

• Compact design, small and lightweight
• Contribute to high Q and self-resonant frequencies
• Coating: epoxy resin ensures humidity resistance for long life
• Taping type is convenient for automatic equipment

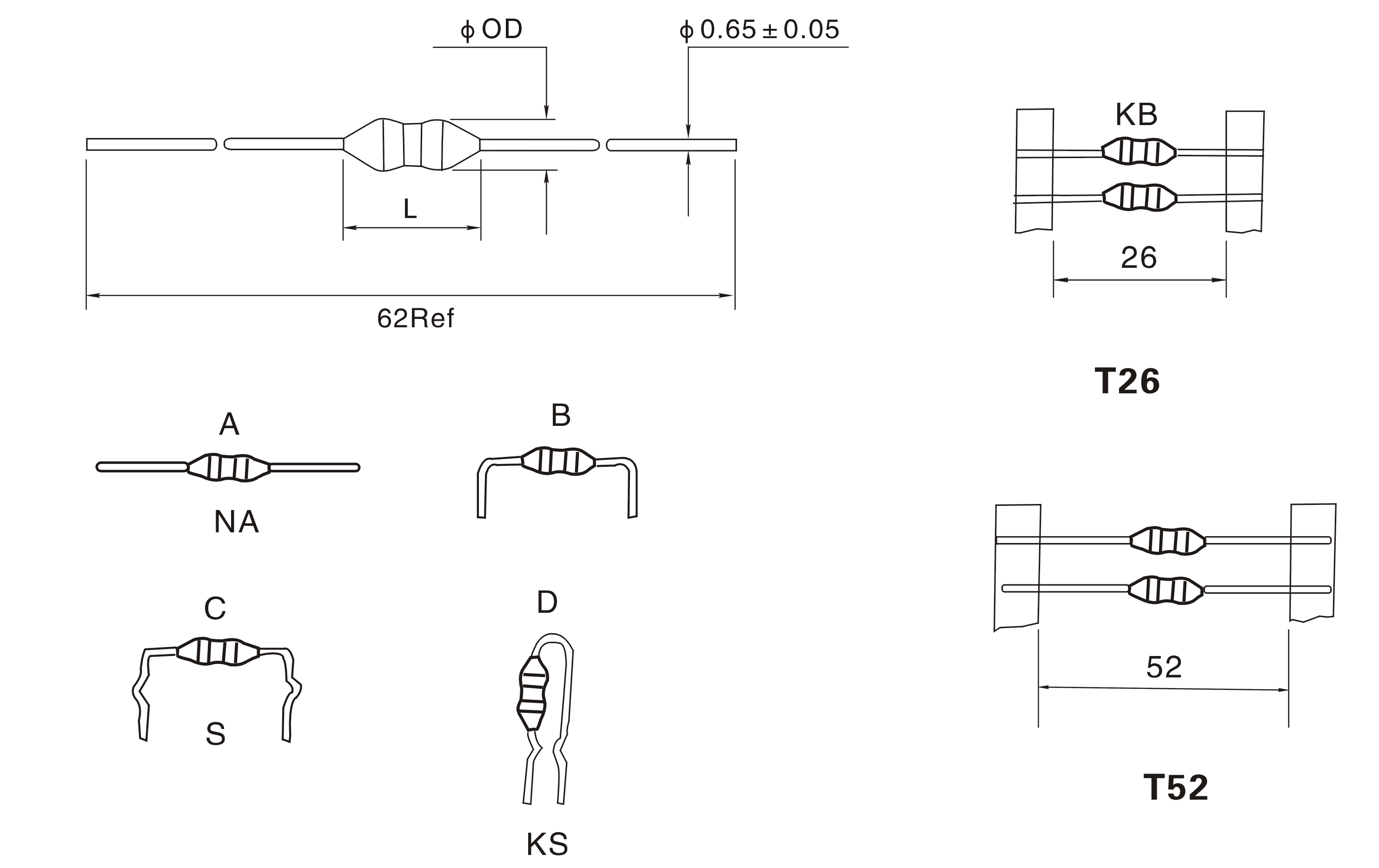

• Size: 0204 ,0305, 0307, 0410, 0510, 0512, 0612
• Inductance: 0.1uH to 39mH

Applications:

• Consumer electronics such as VCRs, TVs, audio equipment
• Mobile communications
• Portable communication equipment
• Notebook computers
• DC/DC converters,etc.
• LCD television

Electrical specification​:

1. Testing: (Equivalent acceptable) lnductance:HP4342A HP4284A
2. RDC:QuadTech 1880 Milliohmmeter
3. DC current is decreased 10% against its initial value
4. Operating temperature: -25℃ to +105℃
5. Storage Temperature: -40℃ to +85℃

Note: Product specifications can be customized.

    Shaanxi Shinhom Enterprise Co.,Ltd is one large-sized key enterprise in producing magnetic components and supplying OEM`high quality magnetics components in China ,It has been approved for the certification ISO9001&QS9000.Shinhom has grown rapidly by supplying high quality magnetic components on-time, offering competitive pricing, and providing strong customer service, It`s products can be widely used in personal computer, computer peripherals, automotive electronics, consumer electronics, elecommunication equipment ,test equipment, GPS equipment, medical appliances and cellular Phone to name just a few . It has annual capacity reaches 300 Million Pieces and has more than 20 year of experience in producing inductors & transformers,Current transformers, filters.

    Since its inception in 1998, shinhom has become a major supplier of inductors & transformers and Product Solutions for its professional R&D Department, accurate market positioning and high quality products.
