30tons Continuous PLC Automatic Control Waste Tyre/Plastic To Oil Furnace Unit

30tons Continuous PLC Automatic Control Waste Tyre/Plastic To Oil Furnace Unit​

Continuous Tyre Pyrolysis Plant is controlled automatic mode from the operator’s touch screen. Process data is controlled and monitored by various instruments and a control system. Safety interlock system monitoring deviations from main process parameters ensures the plant’s safe operation and long life. The plant is supplied with air cooling system that cools media (cooling water). Continuous Tyre Pyrolysis Plant include the following assemblies: pyrolysis assembly, condensation assembly, control system equipped with safe start devices.

Specification

Working processing of PLC control continuous pyrolysis plant

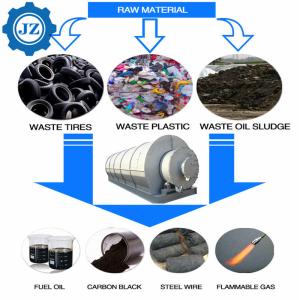

Pollution-Free Continuous Waste Tyre Pyrolysis Plant will be shattered fragments of the tire after a belt conveyor, belt scale, screw conveyor, etc to the negative pressure in the continuous pyrolysis system through pyrolysis, in system after the gas phase reaction temperature 450-550 ℃ under the condition of vacuum fast pyrolysis reaction, generate the pyrolysis oil, carbon black, pyrolysis wire and combustible gas, combustible gas by separation of oil and gas recovery unit after enter into the hot blast stove burning, for the whole production system to provide the reaction heat, achieve self-sufficiency in energy; After the high temperature oil and gas are cooled into liquid state by the spray condensation system, the oil and gas separation and recovery unit will finally enter the tank for storage. Carbon black and pyrolysis iron wire are first recovered by cooling devices such as spiral conveyor, and the recovered carbon black and steel wire are stored in storage tanks. Subsequently, carbon black and pyrolysis iron wire can be separated by magnetic separation and other devices for wire recovery.

Advantages

1.It can working continuous 24 hours in a day,improve working efficiency

2.Precision machining of all parts that can improve service life.

3.No odor,no residue,no emission,no pollution

4.High oil rate,improve oil rate 40% to 45%

5.Our machine can produce high quality carbon black,no impurity in it and no steel wire in it.

6.Special explosion-proof system,high safety system.

Protection system:

1.Over temperature protection:Due to faulty operation,the temperature of reactor is higher than the theoretical temperature, the console displays an alarm and automatically adjust the temperature.

2.Over pressure protection:Due to faulty operation leads to excessive pressure on reactor,the console displays an alarm and releases pressure automatically.

3.Leakage protection:Due to faulty operation leads to oil and gas leakage,the console display and alarm.

Quality And Warranty

1.Quality warranty period: One year warranty for the main reactor of pyrolysis machines

and lifetime maintenance for complete set of machines.

2.Our company sends engineers for installation and commissioning in buyer's site including the training of skills of buyer's

workers on operation, maintenance, etc.

3. Supply layout according to buyer's workshop and land, civil works information, operation manuals, etc. to the buyer.

4. For the damage caused by the users, our company provides the parts and accessories with cost price.

5. Our factory supplies the wearing parts with the cost price to clients.

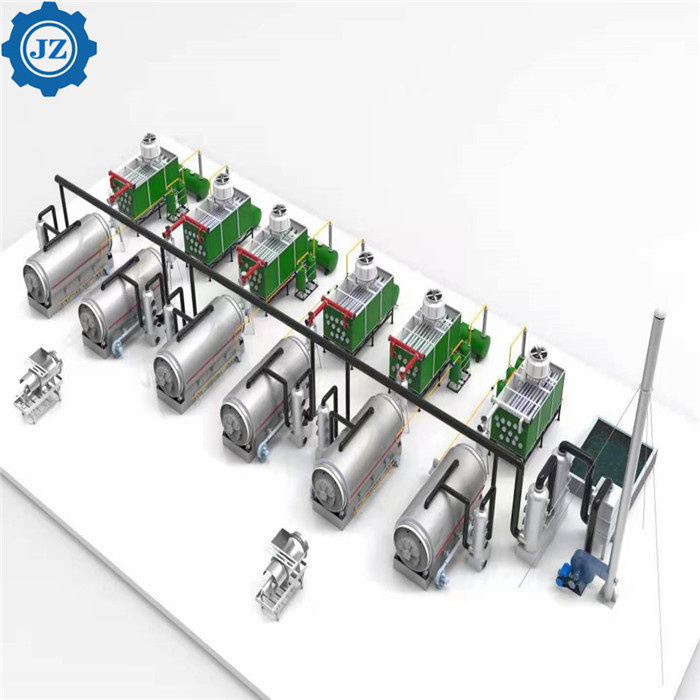

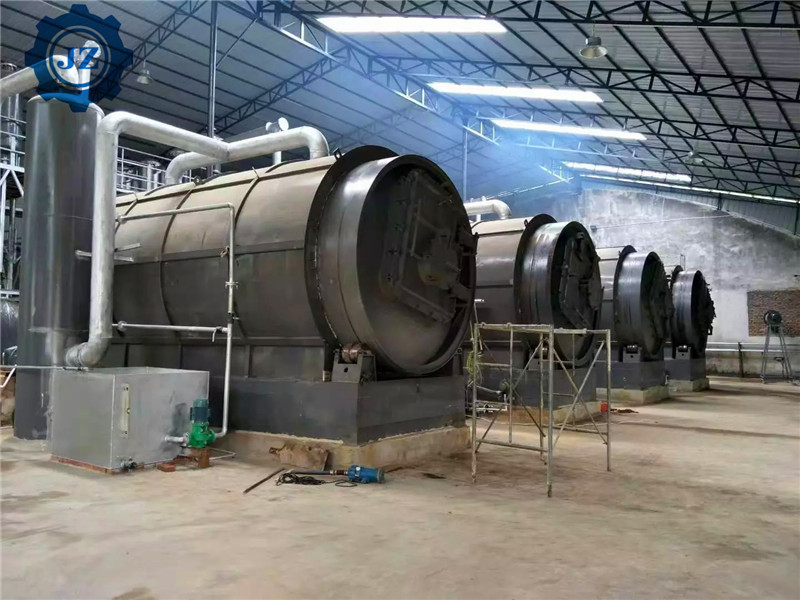

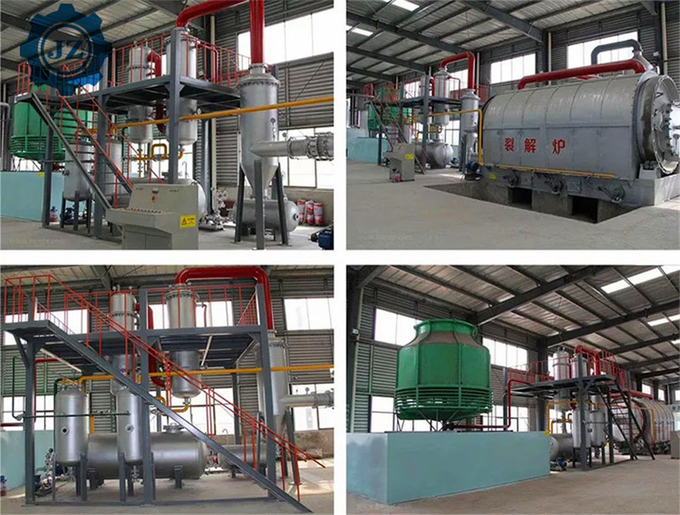

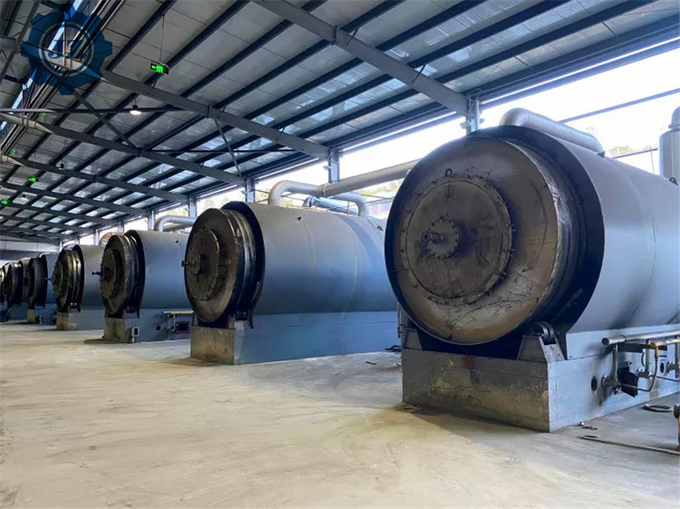

Picture Details

Henan Jinzhen Boiler Co., Ltd is a professional industrial boiler manufacturer that specialized in the environment-friendly steam boiler, hot water boiler, thermal oil boiler and pressure vessels’ design, manufacture, installation, maintenance. Jinzhen Boiler factory is located in beautiful Zhoukou City which nearby Zhengzhou Airport, Shangqiu Railway Station, gets convenient traffic.We have over 6,000sq.m. building area, 105 employees, annual sales amount exceeds 25,000,000USD which includes 25% export amount in worldwide.

Jinzhen boilers include more than 150 kinds. There are:
(1) DZL coal/biomass fired steam boiler(1-20ton/h;)
(2) DZH wood fired steam boiler(0.5-6ton/h;)
(3) SZL biomass/coal fired steam boiler(4-25ton/h;)
(4) WNS series gas/oil fired steam boiler(0.5-20ton/h;)
(5) YLL(W) series coal/biomass fired thermal oil boiler(150,000-16,000,000Kcal)
(6) YY(Q)W gas /oil fired thermic fluid heater(150,000kcal-12,000,000Kcal)

All industrial boilers comply with GB/T quality standards and are greatly appreciated in a variety of markets throughout the world.Well-equipped facilities and excellent quality control throughout all production stages to totally guarantee customers' satisfaction.

As a result of high quality boiler and outstanding customer service, we have gained a global sales network reaching America, Australia, Mexico, Vietnam, Russia, Kazakhstan, South Africa, Syria,South Africa, Ethiopia, etc.
