Black / White Epoxy Coated Supporting Steel Wire Mesh For Filter Elements

Categories	Epoxy Coated Wire Mesh
Brand Name:	Xingkuan Tech
Model Number:	Epoxy Coated Supporting Wire Mesh Woven Mesh
Certification:	Bv ,sgs , ce , Iso
Place of Origin:	Hebei ,China
MOQ:	1 roll
Price:	Negotiable
Payment Terms:	L/C, T/T
Supply Ability:	20000 Square Meters per Day
Delivery Time:	5-8 working days
Packaging Details:	Paper tube inside and waterproof paper outside, then put into plywood pallets.
Item:	Epoxy Coated Supporting Wire Mesh Woven Mesh
Material:	Plain steel ,Aluminum , Stainless Steel wire mesh
Surface:	Epoxy spray
Mesh:	12x10,16x14,18x14,18x16 ,etc
Wire diameter:	0.1-0.3mm
Width:	50-1300mm( can be into customized short width）
Length:	10m-400m
Application:	pleating and as support layer inside of filter process

Contact Now

Add to Cart

Company Info.

Hebei Xingkuan wire mesh Tech co .,ltd

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

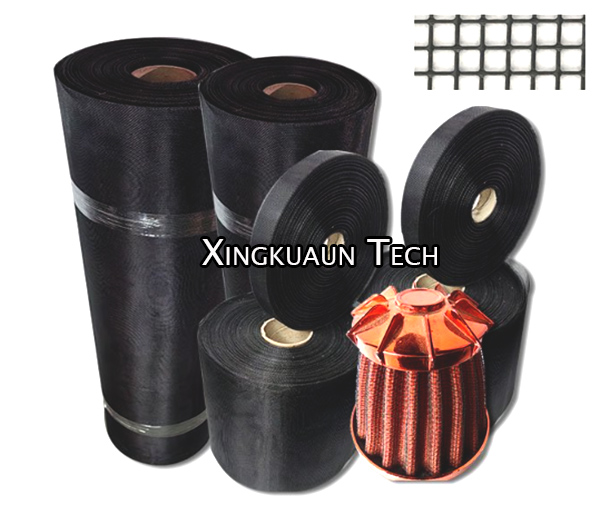

Black / White Epoxy Coated Supporting Steel Wire Mesh For Filter Elements

Epoxy Coated Supporting Wire Mesh Woven Mesh

Material: Plain steel, Stainless steel, Aluminum 5052 etc.
Color: Black,White ,Gray ,etc
Mesh size:18x14mesh(hole size 1.4mmx1.8mm), 24x22mesh(hole size 0.8mmx1.0mm),28x24mesh(hole size 0.7mmx0.8mm)
Wire diameter: 0.008inch(0.20mm)
Width: 50mm(2inches)-1500mm(60inches)
Length: 30m(100ft)-700m(2000ft)
Xingkuan can also produce other materials (such as stainless steel, aluminum) and other colors (such as dark gray) epoxy coated steel screening according to customer requirements.

Material	Color	Mesh	Wire Dia.	Width
Plain steel wire mesh,stiainless steel wire mesh ,aluminum alloy wire mesh	Normally Black grey and white,other colors are also available	14 x 14	BWG 31/32	0.6 - 1.5 m


		16 x 14	BWG 31/32	0.6 - 1.5 m
		16 x 16	BWG 31/32	0.6 - 1.5 m
		18 x 14	BWG 33/34	0.6 - 1.5 m
		18 x 16	BWG 31/32	0.6 - 1.5 m
		18 x 18	BWG 31/32	0.6 - 1.5 m
		20 x 20	BWG 32/33	0.6 - 1.5 m
		22 x 22	BWG 32/33	0.6 - 1.5 m
		24 x 24	BWG 33/34	0.6 - 1.5 m
		28 x 28	BWG 33/34	0.6 - 1.5 m
		30 x 30	BWG 33/34	0.6 - 1.5 m

Characteristics

1. Even and square hole

2. Not easy to loosen and deform, the supporting force is strengthened

3. Soft mesh surface and easy to be shaped.

4. Different colors of powder can be coated.

5. Even and consistent color.

Application
This product can be used for pleated filter element supports, which can be used in hydraulic systems as well as in the automotive industry, such as hydraulic filters, air filters, etc

Packaging & Shipping

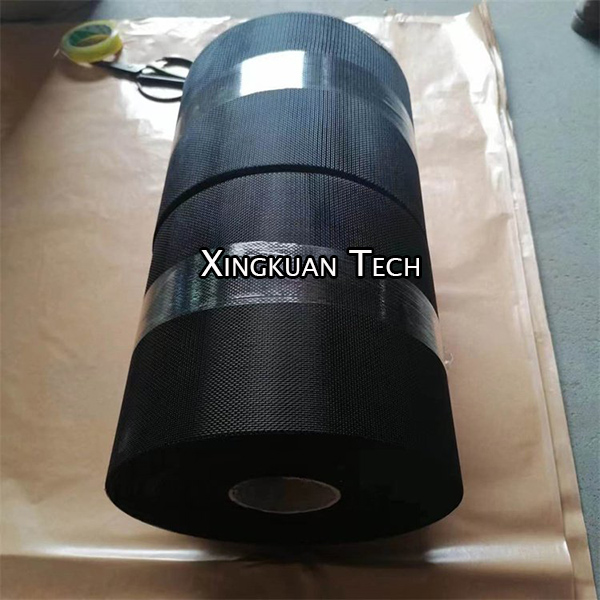

Packing

We normally pack this mesh with waterproof paper, then in plywood pallets.
