| Categories | Hex Mesh Refractory |
|---|---|
| Brand Name: | Hebei xingkuan |
| Model Number: | Lance Type Flex Metal, Flexmetal with Lances, Flex Metal for Refractory Lining |
| Certification: | Bv ,sgs , ce , Iso |
| Place of Origin: | Hebei ,China |
| MOQ: | 1 square meter |
| Price: | Negotiate |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000M2/day |
| Delivery Time: | 5-8 working days |
| Packaging Details: | Pallet , or wooden case |
| Item: | Lance Type Flex Metal, Flexmetal with Lances, Flex Metal for Refractory Lining |
| Material: | Carbon steel Q235,0Cr13, 1Cr13, 0Cr18Ni9, 1Cr18Ni9Ti, Stainless steel 304 304 L 316 316 L 310 s. |
| Sheet thickness: | 1.0mm-3.0mm (12Ga,14Ga,16Ga ) |
| Hole size: | 30-100mm |
| Hole type: | lance or bonding hole |
| Mesh deepth: | 10-30mm |
| Processing: | Hole punching , mold shape punching , Manual assembly |
| Applications: | for refractory linings in furnaces, reactors, cyclones, ducts, and flues. |
Lance Type Flex Metal, Flexmetal with Lances, Flex Metal for
Refractory Lining
Descriptions :
Flex metal refractory lining is the direct counterpart of hex metal, it performs all the same functions of reinforcement of thin wall refractory linings, while its design allows free form rolling to very small diameters. Hex metal becomes impractical to use when the section of plant being protected is of small diameter, the free rolling capabilities of flex metal allows plant as small as 150mm to lined. Typical applications include air distributors, cyclone diplegs, fan cases and all plants where the practicality of free rolling material is beneficial to maintenance activities
Refractory lining situations that have attendant high live loads occur in plant such as Rotary Kilns, where deep roof and side wall lining of dense refractories require maximum support during operating conditions or heavy weight pre-cast blocks are retained by bolt through, weld on and slip on systems.
Common Specifications:
| Material | A3/Q235,SS304,310S,1Cr18Ni9Ti,0Cr13,Q345… |
| Gauge | 1.0mm / 1.2mm / 1.5mm / 1.8mm /2.0mm / 2.5mm / 3.0mm |
| Thickness | 10mm~70mm |
| Aperture | 40-100mm |
| Panel size | 0.96mx1.05m(according to the raw material size) |
| Note | Customers/other requirement is available for us |
| Thickness | Hole size | Height | Weight |
| mm | mm | mm | Kg/M2 |
| 1 | 50X50 | 10 | 3.3 |
| 1.2 | 45X45 | 10 | 4.5 |
| 1 | 50X50 | 15 | 5.2 |
| 1.5 | 50X50 | 15 | 7 |
| 1.5 | 60X60 | 15 | 6.2 |
| 1.75 | 50X50 | 20 | 11.5 |
| 2 | 50X50 | 20 | 13 |
| 2 | 50X50 | 25 | 17 |
Process plant which is subject to the passage of erosive gas streams, especially at high temperature,benefit by cladding with Hexmetal infilled with erosion resistant refractories. Typical applicationsinclude Cyclones, Flue Gas Lines, Reactor Vessels, Windboxes, Fan Casings, Burner Quarls: in fact any vessel or section that is subject to erosion or abrasion

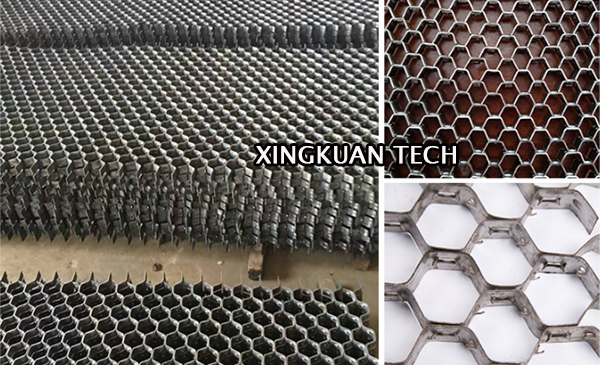

Photo Gallery :
Customized :we can design as your needs. many of mainframe factories cooperate with us to produce metal parts; We has already supplied kinds of liner metal fabric parts for many petrifaction equipment making enterprise. Our products can be used for petrol chemical; It is favorable to catalyst equipment as one of liner structures
|
