Butt Fusion HDPE Reducer Fitting For Joining Pipe Lines Sdr17.6 Sdr17

Sdr17.6 sdr17 butt fusion hdpe pipe fittings HDPE reducer

Description

HDPE reducer can resist the corrosion of a variety of chemical media, and the chemicals in the soil will not degrade the pipeline.

It has aging resistance and long service life. The polyethylene pipe containing 2-2.5% carbon black evenly distributed can be stored outdoors or used for 50 years without being damaged by ultraviolet radiation.

Specification

Color:Black

Material:HDPE/MDPE

Usage:For Natural gas and Water supply

Dimension:DN20mm – DN630mm,1/4” – 24”

Standards:GB/EN/ANSI/ASTM/ISO/ASNZS/DIN

Size:SDR11/SDR13. 6/SDR17/SDR21/SDR26 etc.

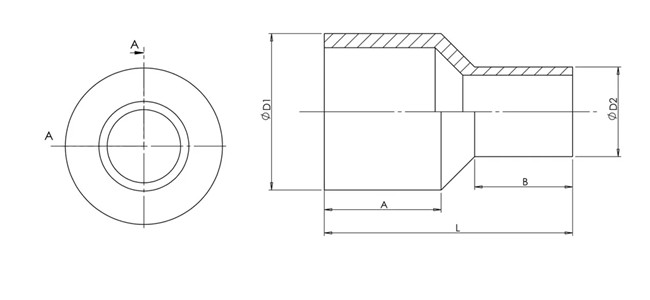

Technical data sheet

Sdr17.6 sdr17 butt fusion hdpe pipe fittings HDPE reducer technical data sheet as below:

Characteristic

HDPE reducer is made of pure raw material polyethylene, which has excellent low temperature resistance, good flexibility, impact resistance, wear resistance, smooth inner wall and improved medium mass flow velocity.

Designed and produced according to national standards, with high interface strength. Hot melt connection with the same type of pipe, easy installation. The connection is firm and watertight.

According to the strict selection of raw materials and the production of advanced equipment and technology, the pressure of 16KG of pipe fittings can be guaranteed, and the use is more safe and assured.

Application

HDPE reducer can be used in the field of food and chemical industry, with unique corrosion resistance;

It can be used for the transportation or discharge of various acids and salts, resulting in long service life, low cost and low maintenance cost.

It can also be used for conveying ore and slurry. It has unique wear resistance, which is 4 times that of steel pipe;

It can be widely used to transport mineral sand, fly ash from power plants, mud for river dredging, etc.

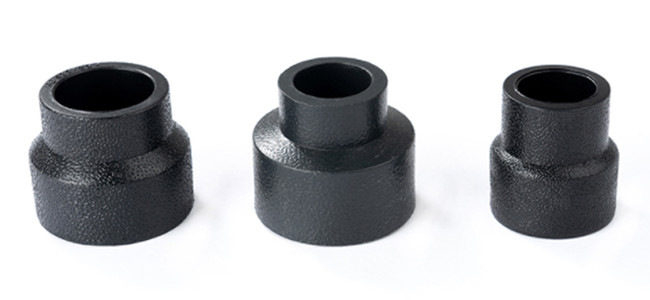

Product picture
