Glass Jar Container With Lid Servo Piston Bottle Filling Machine For Syrup And Honey

Automatic glass jar container with lid servo piston bottle filling machine for syrup and honey

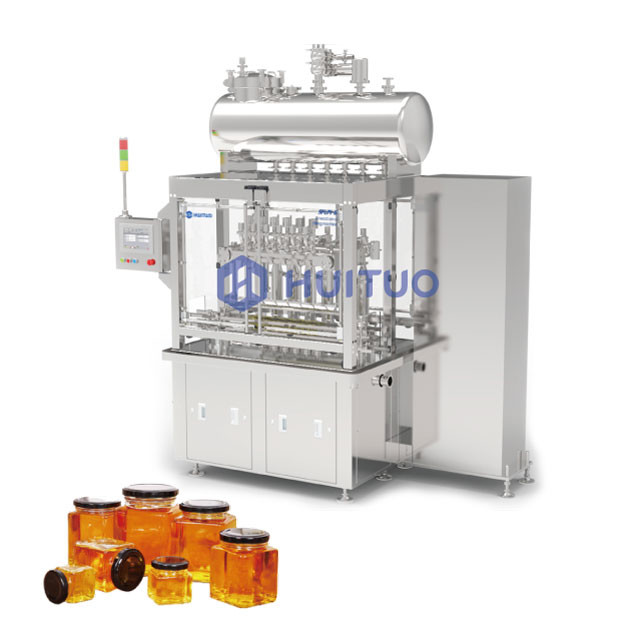

Huituo SFL filling machine is mainly composed of control system, conveying device, photoelectric detection, feeding device, storage tank, liquid level control device, filling device, diving device, bottle holding device, bottle blocking device, etc.

Huituo linear liquid filling machine

1. Suitable for different bottles

2. Suitable for different filling materials

3. CIP

4. Tool-free changeover

5. High filling accuracy

6. Siemens control system

Storage tank

The storage tank is composed of two spray balls to achieve no dead-angle cleaning. The liquid level uses an ultrasonic liquid level sensor for continuous monitoring, and a pneumatic drain valve is used for tailing emptying, and cleaning water draining.

Filling nozzle

Specially designed filling nozzle with high precision and long service life.

CIP

The filling cleaning head is located on the back side of the conveyor and the front side of the servo stopper. When performing CIP, remove the leaking liquid container under the filling nozzle first. The leaking liquid container is fixed with a quick release pin, which can be removed by removing the quick release pin. After removing the leaking liquid container, adjust the filling head to move the adjusting handle, and adjust the filling nozzle to the cleaning port position.

Changeover

The change-over adjustment parts include guardrail, filling nozzle spacing adjustment, bottle-in photoelectric adjustment, stop position adjustment, etc. Please check the changeover video for the specific adjustment positions.

Common troubleshooting

Here are examples of commonly occurring faults and troubleshooting methods.

1) Inaccurate bottle-in count

Check the sensor position, whether it is adjusted to the position according to the changeover video.

2) Inaccurate filling accuracy

Check the parameter settings, such as whether the filling volume setting is correct, filling valve opening delay (1000ms), valve closing delay (800ms)

3) Unstable filling volume of single head

Check whether there is any problem with the setting parameters, if there is no problem, check whether the electric cylinder synchronous wheel set is loose.
