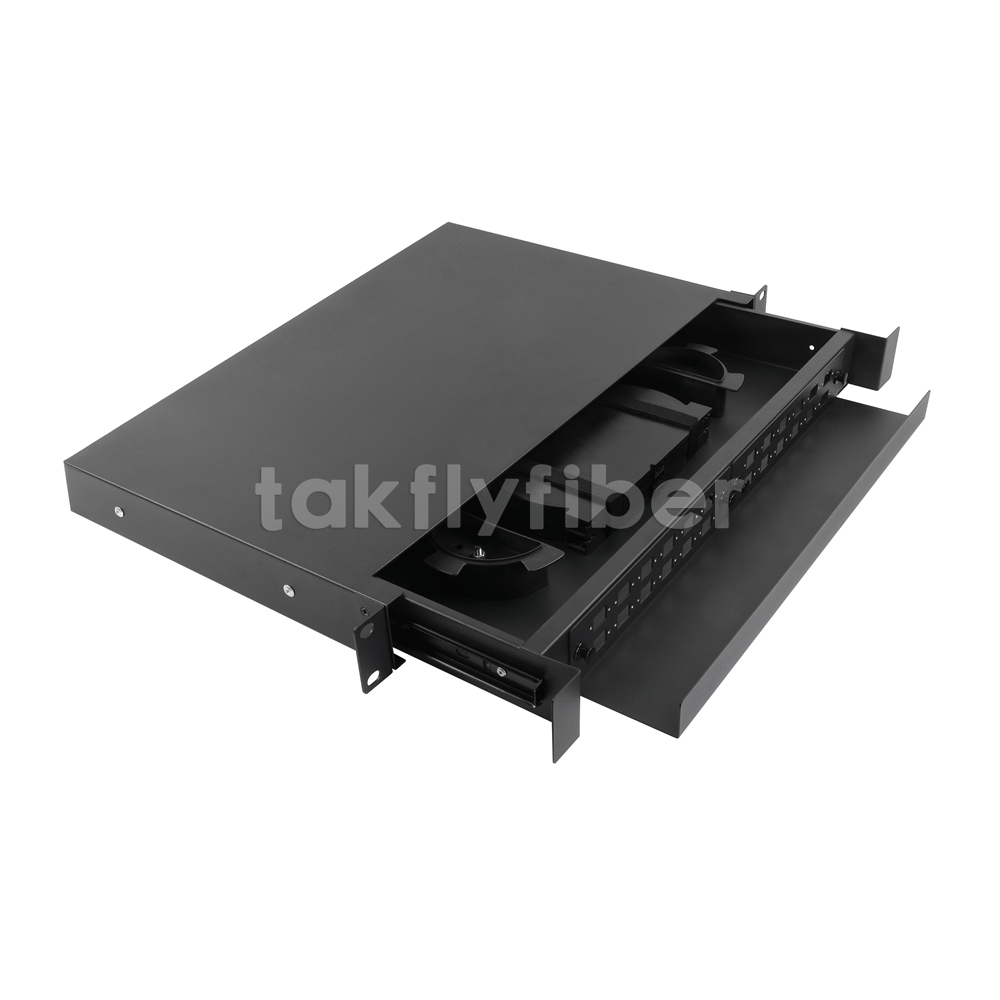

SC Adapter Pigtail 1U Chassis Drawer SC Simplex Patch Panel Rack Mounted

19" Rack mounted Slidable style full loaded SC adapter and Pigtail 1U Chassis Drawer 24 port SC simplex patch panel

Details:
Slidable Rack-mount Fiber Optic Distribution Frame has steel sliding fittings with self-locking functions prevent the drawer from falling when moved; 19-inch rack mount for ST, SC, LC, FC, E2000 adapters. The drawer is the holding board for splicing, easy to withdraw the fibers when testing and distributing.


Application:
1. Telecommunications subscriber loop
2. Fiber to the home (FTTH)
3. LAN/ WAN
4. CATV


Conditions of Use:
1. Operation Temperature: -20 ° C to +45 ° C
2. Storage temperature: -25 ° C to +55 ° C
3. Relative humidity: ≤ 85% (+30 ° C)
4. Atmospheric pressure: 70kPa ~ 106Kpa



Electrical Properties:
1.Nominal operating wavelength: 850nm, 1310nm, 1550nm
2.Insertion loss: ≤ 0.3dB
3.Return Loss: PC ≥ 40dB, UPC ≥ 50dB APC ≥ 60dB
4.Dielectric strength: ≥ 3KV (DC) / 1min no breakdown, no arc
5.Insulation resistance: ≥ 1000MΩ/500V (DC)
6.Life: ≥ 1000 times
7.Hosting offer fiber bending radius: ≥ 40 mm

Specification:
