| Categories | Power NTC Thermistor |
|---|---|
| Brand Name: | ISTEC |
| Model Number: | DG |
| Certification: | UL DG series (File No. E340044) |
| Place of Origin: | KOREA |
| MOQ: | 10000PCS |
| Price: | 0.5 USD/PC |
| Payment Terms: | T/T IN ADVANCE |
| Supply Ability: | 900,000PCS PER MONTH |
| Delivery Time: | 10-20 Workdays |
| Packaging Details: | Bulk/Ammo/Reel |
| Name: | Glass Sealing Type NTC Thermistor |
| Operating temperature: | -50 ~ 300°C |
| Thermal time constant: | Max. 11sec(in still air) |
| Resistance tolerances: | ±0.5%, ±1.0%, ±2.0%, ±3.0%, Special |
| Dissipation constant: | 1.0 ~ 1.5mW/°C |
| Insulation resistance: | 500VDC Min 50Mohm (Between lead and glass) |
| Diameter: | 1.0mm/1.3mm/1.8mm/2.2mm |
| Certified UL DG series: | File No. E340044 |
| Company Info. |
| Dongguan Ampfort Electronics Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
IST DG Series 300Deg Glass Sealing Type NTC Thermistor DG1A103FB 2.2mm 10K 3977
Glass Sealing Type NTC Thermistor DG
Glass sealing type thermistor is designed for high environmental
reliability and wide temperature range of usage (-50°C ~ 300°C)
Features Of The Glass Sealing Type NTC Thermistor DG
- Glass size : Ø 1.0mm/1.3mm/1.8mm/2.2mm standard size
- Operating up to 300°C with high stability
- Excellent stability at high humidity condition (tight glass
sealing)
- Cost effective design
- Certified UL DG series (File No. E340044)

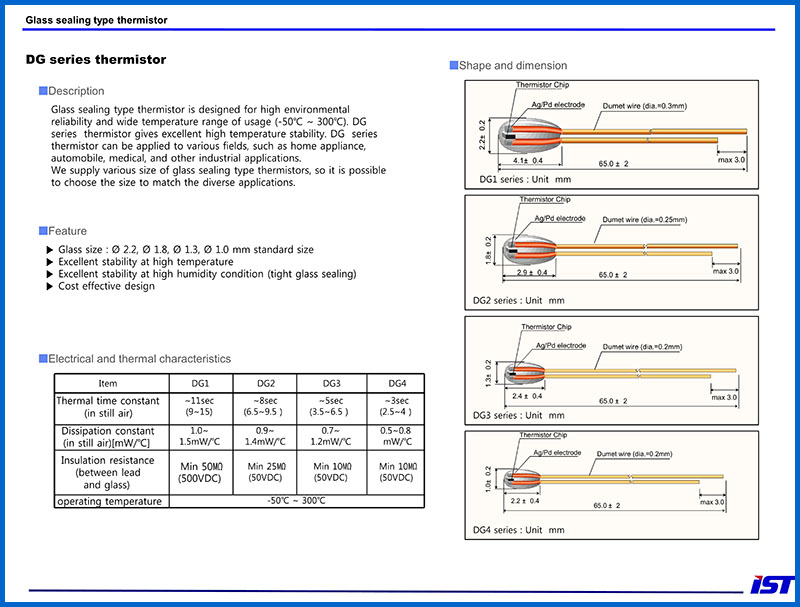

Dimension Of The Glass Sealing Type NTC Thermistor DG (mm)
Application Of The Glass Sealing Type NTC Thermistor DG
- High temperature sensing, control and compensation
- Automotive for temperature monitoring, controlling & Management
- HVAC & White goods applications
- Industrial Instrumentation
- Medical & Chemical Industry
Performances Of The Glass Sealing Type NTC Thermistor DG
| Operating temperature | -50 ~ 300°C |
| Thermal time constant | Max. 11sec(in still air) |
| Resistance tolerances | ±0.5%, ±1.0%, ±2.0%, ±3.0%, Special |
| Dissipation constant | 1.0 ~ 1.5mW/°C |
| Insulation resistance | 500VDC Min 50Mohm (Between lead and glass) |
Part Number Explanation Of The Glass Sealing Type NTC Thermistor DG
| DG1 | B | 103 | F | B | - | X |
| Type | RT Curve | Resistance | Tolerance | Reference temp.(°C) | Packing type | |
| Glass size of thermistors DG1 : Φ2.2mm | R-T curve characteristics | 502=50X100=5.0KΩ 303=30X1000=30.0KΩ 10.74 = 10.74KΩ | F : R±1%, B±1% G : R±2%, B±2% H : R±3%, B±2% J : R±5%, B±2% | A :0°C | Blank : Bulk | |
| B : 25°C | A : Ammo taping | |||||
| C : 50°C | B : Reel taping | |||||
| F : 100°C | ||||||
| G : 150°C | ||||||
| H : 200°C | ||||||
| Other ... |
Ordering Info Of The Glass Sealing Type NTC Thermistor DG
| Part No. | Temperature | Resistance | B value | |
| DG&A502xB | 25 | 5 | B25/85 | 3970, 3977 |
| DG&A103xB | 25 | 10 | ||
| DG&A203xB | 25 | 20 | ||
| DG&B103xB | 25 | 10 | B25/85 | 3435 |
| DG&B27.62xA | 0 | 27.62 | ||
| DG&C49.12xB | 25 | 49.12 | B25/85 | 3990 |
| DG&C503xB | 25 | 50 | B25/85 | 3990 |
| DG&C29.46x37 | 37 | 29.46 | ||
| DG&C17.59xC | 50 | 17.59 | B0/100 | 3970 |
| DG&C8.514xD | 70 | 8.514 | ||
| DG&C332xF | 100 | 3.3 | ||
| DG&C133.5xJ | 4 | 133.5 | ||
| DG&C135.5xJ | 4 | 135.5 | ||
| DG&D104xB | 25 | 100 | B25/85 | 4060 |
| DG&D14.20xS | 75 | 14.2 | B0/100 | 4000 |
| DG&D6.282xF | 100 | 6.282 | ||
| DG&D551xH | 200 | 0.55 | B100/200 | 4330 |
| DG&D983xB | 25 | 98.64 | B25/85 | 4066 |
| DG&E234xB | 25 | 230 | B25/85 | 4250 |
| DG&E104xB | 25 | 100 | ||
| DG&E103.9xB | 25 | 103.9 | ||
| DG&E133xF | 100 | 13.09 | B100/200 | 4537 |
| DG&E15.78xK | 95 | 15.78 | ||
| DG&E3.241xG | 150 | 3.241 | ||
| DG&E102xH | 200 | 1 | B100/200 | 4550 |
| DG&E1.175xH | 200 | 1.175 | B100/200 | 4550 |
| DG&E3.4513x114 | 114 | 3.4513 | B25/50 | 4200 |
| DG&F502xB | 25 | 5 | B25/85 | 3324 |
| DG&F13.29xA | 0 | 13.29 | B0/25 | 3200 |
| DG&G6.000xA | 0 | 6 | B0/100 | 3390 |
| DG&G2.186xB | 25 | 2.186 | B25/85 | 3420 |
| DG&J10.74xB | 25 | 10.74 | B0/100 | 3450 |
| DG&J3.485xC | 50 | 3.485 | ||
| DG&J1.325xJ | 90 | 1.325 | ||
| DG&M104xB | 25 | 100 | B25/85 | 3990 |
| DG&N135xB | 25 | 1.388 | B25/85 | 4550 |
| DG&N135xB | 25 | 1.3 | ||
| DG&M10.65xE | 85 | 10.65 | B25/50 | 3950 |
| DG&M6.71xF | 100 | 6.71 | ||
| DG&F5.369xB | 25 | 5.369 | B25/85 | 3480 |
| B0/100 | 3450 | |||
| DG&P153xA | 0 | 15 | B0/100 | 3450 |
| DG&J202xB | 25 | 2 | B25/50 | 3530 |
| DG&J103xB | 25 | 10 | B25/85 | 3520 |
| DG&B157xX | 180 | 0.1568 | B25/85 | 3435 |
| DG&B176xX | 180 | 0.176 | ||
| DG&H104xB | 25 | 100 | B25/85 | 4390 |
| DG&H1.196xG | 150 | 1.196 | ||
| DG&A272xB | 25 | 2.7 | B0/50 | 3880 |
| DG&K203xB | 25 | 20 | B25/85 | 3690 |
※ Where x – Maybe follow up by S, F, A, G, B, H, C, I or J for
resistance tolerance, refer to NOMENCLATURE for detailed.
※ Where y – maybe follow up by W or C for Type, refer to
NOMENCLATURE for detailed.
※ The information here can be downloaded from "SUPPORT"
※ ISTEC specializes in customized products. Please contect us for various options.
