Brand Name: | GREWIN/OEM |
Model Number: | R0.5-R6 |
Certification: | ISO, CQC |
Place of Origin: | Zhuzhou |
MOQ: | 10pcs for each |
Price: | USD1.15/pcs |
Payment Terms: | T/T, Western Union, Paypal, Alibaba |
Supply Ability: | 50000pcs/month |
Delivery Time: | 5-8 work days |
Packaging Details: | single box |
Product name: | solid carbide ball end mills |
Suitable for: | Carbon Steel,Cooper.Cast Iron.Carbon Steel.Mould Steel,Hardened Steel,Cast Iron.Carbon Steel.Alloy Steel.etc |
Flute: | 2/4 Flutes |
Machine type: | Milling Machine,ANCA,Five-axis grinding machine- Anca, from German |
Usage: | General High Speed Cutting,Metal,Cutting Machine |
Application: | CNC Process,milling,Solid Carbide End Mills,Wood |
Processing type: | Metal Cutting Tools,Casting,end mill |
Color: | black. |

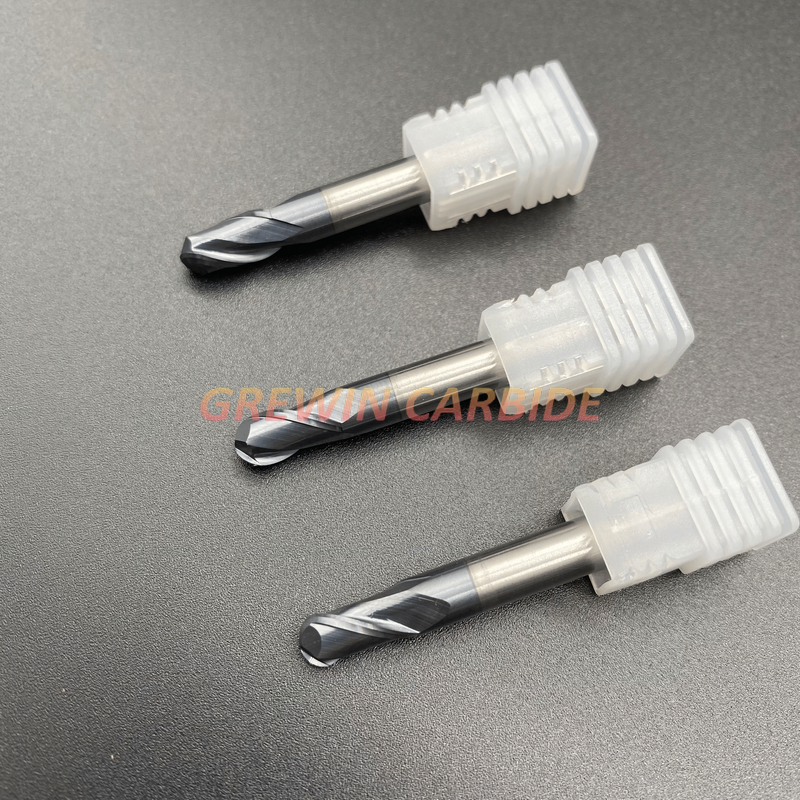

GREWIN CNC Machine Tools Solid Carbide HRC65 2F Ball Nose Black Coated End Mill
coating: TIAin
flutes: 2
HRC:65
Suitable for machine: CNC Grindng Center, Engraving Machine, high
speed machine, ECT.,
materials to be cut: carbon steel, high speed steel, stainess
steel, requeched steel and other difficulty matarials.
faetures:
The sharp and positive rake angles are sharpened and sharpened. The
4-blade geometry cutting design has a large capacity for chip
removal. It is a smoother cutting, non-stick knife, and achieves
efficient machining.
Specification:
HRC choice: HRC38-45, HRC45-50, HRC55-58, HRC60-62, HRC65-70
Coating choice: AITiN, AICrSiN, AITiCrSIN, TiSiN, NACO-BLUE
Materials to be cut: original steel, cast iron, Aluminum, copper,
graphite, plastics,
Titanium , alloy, harden steel, stainless steel, HSS etc.
Code No. | Diamter d | Cutting length l | Total length L | Shank D | Flutes Z |
2GW2-01002050 | 1 | 2 | 50 | 4 | 2 |
2GW2-01504050 | 1.5 | 3 | 50 | 4 | 2 |
2GW2-02050500 | 2 | 4 | 50 | 4 | 2 |
2GW2-02507050 | 2.5 | 5 | 50 | 4 | 2 |
2GW2-02008050 | 3 | 6 | 50 | 4 | 2 |
2GW2-04010050 | 4 | 8 | 50 | 4 | 2 |
2GW2-04015075 | 4 | 8 | 75 | 4 | 2 |
2GW2-04020100 | 4 | 8 | 100 | 4 | 2 |
2GW2-05012050 | 5 | 10 | 50 | 6 | 2 |
2GW2-06015050 | 6 | 12 | 50 | 6 | 2 |
2GW2-06020075 | 6 | 12 | 75 | 6 | 2 |
2GW2-06020100 | 6 | 12 | 100 | 6 | 2 |
2GW2-06020060 | 8 | 16 | 60 | 8 | 2 |
2GW2-08025075 | 8 | 16 | 75 | 8 | 2 |
2GW2-08025100 | 8 | 16 | 100 | 8 | 2 |
2GW2-010025075 | 10 | 20 | 75 | 10 | 2 |
2GW2-010040100 | 10 | 20 | 100 | 10 | 2 |
2GW2-012020075 | 12 | 24 | 75 | 12 | 2 |
2GW2-012040100 | 12 | 24 | 100 | 12 | 2 |
2GW2-014020080 | 14 | 28 | 80 | 14 | 2 |
2GW2-014100100 | 14 | 28 | 100 | 14 | 2 |
2GW2-016040100 | 16 | 32 | 100 | 16 | 2 |
2GW2-018040100 | 18 | 36 | 100 | 18 | 2 |
2GW2-020040100 | 20 | 40 | 100 | 20 | 2 |
2GW2-06040150 | 6 | 12 | 150 | 6 | 2 |
2GW2-08050150 | 8 | 16 | 150 | 8 | 2 |
2GW2-010050150 | 10 | 20 | 150 | 10 | 2 |
2GW2-012050150 | 12 | 24 | 150 | 12 | 2 |
2GW2-014060150 | 14 | 28 | 150 | 14 | 2 |
2GW2-016060150 | 16 | 32 | 150 | 16 | 2 |
2GW2-018060150 | 18 | 36 | 150 | 18 | 2 |
2GW2-020060150 | 20 | 40 | 150 | 20 | 2 |
Our Services
More than 2000 products are available. Assembly line production,
high standard and strict requirements.
OEM Services Offered
Customized Tools Offered
Free laser marking on tools and boxes Offered
Fast delivery time and Convenient Transportations. We have discount
on shipping cost from our courier companies, such as FedEx, DHL,
TNT, UPS etc.
![]() |
