| Categories | Salt Spray Test Chamber |
|---|---|
| Brand Name: | GSKA |
| Model Number: | Salt Spray Test Chamber |
| Certification: | CE SGS ROHS UL CE |
| Place of Origin: | Dongguan China |
| MOQ: | Negotiate |
| Price: | Negotiate |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100 Set / Sets per Month |
| Delivery Time: | 10-60days after confirmed payment or by contract stipulation |
| Packaging Details: | Export package |
| Brine Temperature: | 35℃+-1℃; 50℃+-1℃ |
| Keyword: | Salt Spray Test Chamber |
| Power Supply: | AC220V 1Phase 15A |
| Controller: | Programmable LCD Touch Screen Casters |
| Humidity Range: | 20%~98%RH |
| Air pressure: | 86~ 106Kpa |
| Brand: | GSKA |
| Testing room Capacity: | 60,120,270,480L / Customized |

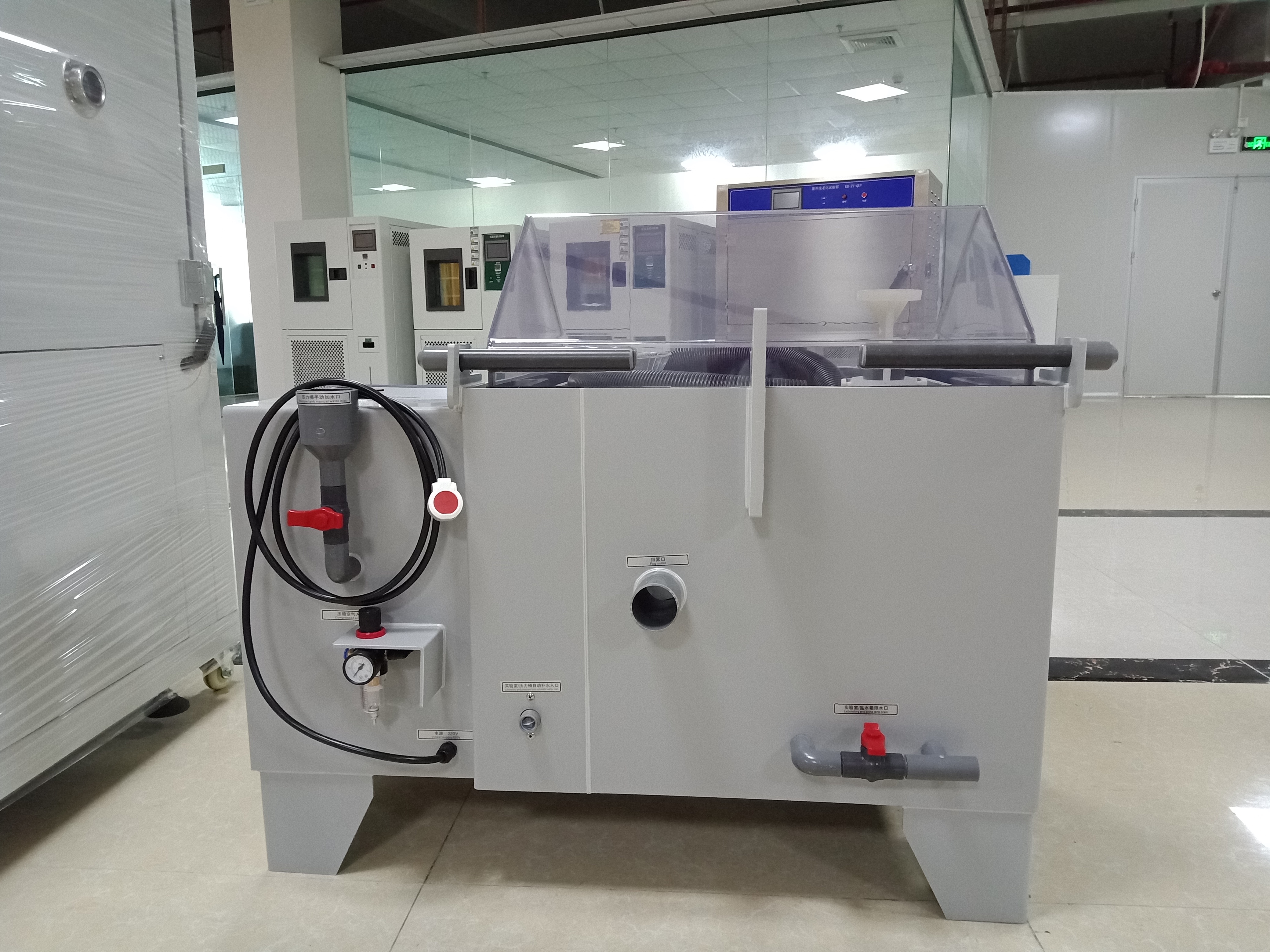

CE Compliant Salt Spray Test Chamber Combined Temperature / 270L
480L
Features:
1.Automatic / manual water system has automatically add the water level of the water level is low, the test is not interrupted. Water level is insufficient warning to ensure that the use of safety.
2.Precision glass nozzle (PYREX) made of special glass, mist spread
evenly and naturally fall on the specimen, and 4000 hours of
continuous use, and to ensure that no crystalline salt obstruction.
3.Inlet temperature controller using a digital display, PID
control, error of ± 0.1 ° C.
4.Laboratory using direct steam heating, heating up fast, and even
reduce the standby time, heating tubes with high
corrosion-resistant titanium tubing.
5.Laboratory basket rack using plane indexing rack, can arbitrarily
adjust the angle, four off the fog, and the fog direction
completely consistent.
Technical Parameters:
| Inside box size(cm) | 60x45x40 | 90x60x50 | 120x80x50 |
| Outside box size(cm) | 107x60x118 | 141x88x128 | 190x110x140 |
| Testing room temperature | Salt test (NSS ACSS)35℃±1℃/ Corrosion Test (CASS)50℃±1℃ | ||
| Pressure barrel temperature | Salt test (NSS ACSS)47℃±1℃/ Corrosion Test (CASS)63℃±1℃ | ||
| Brine temperature | 35℃±1℃ 50℃±1℃ | ||
| Testing room Capacity | 108L | 270L | 480L |
| Brine tank capacity | 15L | 25L | 40L |
| Salt concentration | The concentration of sodium chloride 5% or the 5% concentration of sodium chloride add 0.26g per liter of copper chloride (CuCl2 2H2O) | ||
| Air pressure | 1.00±0.01kgf/cm2 | ||
| Spray volume | 1.0~2.0ml/80cm2/h (working at least 16 hours, and then take the average) | ||
| Testing room relative humidity | 85% above | ||
| PH | 6.5~7.2 3.0~3.2 | ||
| Spray form | Programmable spray (Including continuous and intermittent spray) | ||
| power | AC220V1Φ10A | AC220V1Φ15A | AC220V1Φ20A |
Characters:
1. Use special machine structure which can meet temperature and humidity well distribution.
2. Use environment-friendly refrigerant which meets international standard.
3. LCD display screen uses dialog box operating easy and user-friendly.
4. When fault occurs, display failure causes to help troubleshooting.
5. Have safety protection equipment and power failure memory.
6. Connect with computer, recorder(under user needs)
Uses:
This product is used to provide large parts industry,semi-finished products of the large temperature and humidity test environment equipment.
Character:
Content product can be any enlargement,reduction,designed with the needs of the user environment.
Modualar library board,easy accessibility,simple structure with a zero coefficient of ozone green(HFC)refrigerants R404,R23.Spacious,bright and large windows proof room with high brightness,so that users can observe the walk-in constant temperature and humidity conditions indoors laboratory testers.A full range of security devices and power memory to ensure the safety of users using the machine itself and blow ceiling type,reduce testing indoor sample of wind speed on the sample able to do low-speed high uniformity requirements.It can be connected to the computer,the recorder.
We keep good quality and competitive price to ensure our customers
benefit ; We respect every customer as our friend and we sincerely
do business and make friends with them,no matter where they come
from. Each batch of parts is done quality sampling inspection
before into the warehouse, and Each product before delivery is
tested by the national authoritative third-party inspection agency
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
|
