CATV Usage 3 Port FWDM Splitter 1550nm With SC / UPC Connector

Categories Wavelength Division Multiplexer
Brand Name: Unifiber or OEM
Model Number: T1550 R1310/1490nm FWDM splitter
Certification: ROHS
Place of Origin: China
MOQ: 10
Price: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 500pcs/day
Delivery Time: 3~5 days
Packaging Details: Carton box

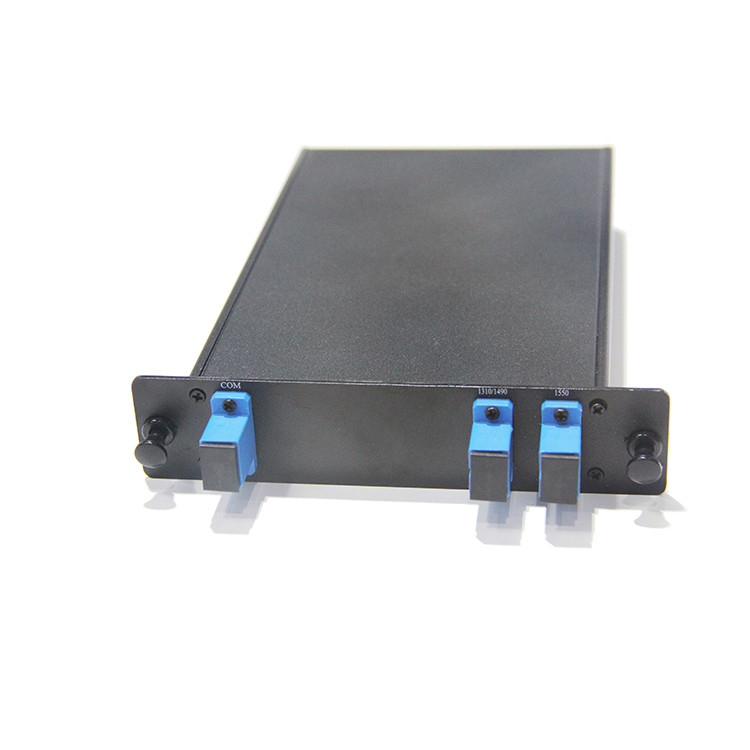

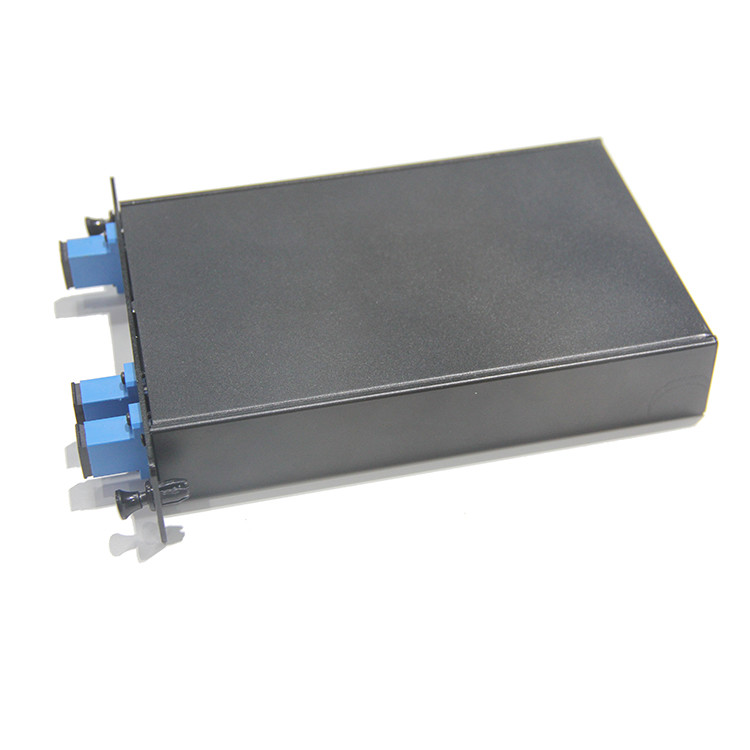

Product: 3 Port FWDM splitter Metal LGX Module
Wavelength: T1550 R1310/1490nm
Connector: SC/UPC
Fiber type: G657A1
Package: Metal LGX box
Application: CATV
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

CATV Usage 3 Port FWDM Splitter 1550nm With SC / UPC Connector

Features:
1. Low Insertion Loss
2. Flat and Wide Bandwidth
3. High Isolation4. High Stability And Reliability
4. Epoxy- Free on Optical Path


Applications:

1. FTTH; LAN
2. WDM system
3. Fiber optical amplifier
4. CATV system

5. Line Monitoring
6. Telecommunication


Parameters
T1550 R1310&1490
Pass wavelengths band[λc] (nm)
1515-1620
Reflection wavelengths band[λc] (nm)
1260-1500
Pass Channel Insertion Loss (dB)
≤0.6
Reflection Channel Insertion Loss (dB)
≤0.5
Channel Ripple (dB)
<0.3
Isolation (dB)
Pass Channel
>30
Reflection Channel
>20
Insertion Loss Temperature Sensitivity (dB/℃)
<0.005
Polariation Dependent Loss (dB)
<0.1
Polarization Mode Dispersion (ps)
<0.1
Return Loss (dB)
>50
Directivity (dB)
>55
Connector Type
SC/APC; SCUPC or Customized
Fiber Length (m)
1M / 1.5M / 2M or Customized
Fiber type
0.9mm 2.0mm 3.0mm
Maximum Optical Power (mw)
300
Operating Temperature (℃)
-20~+75
Storage Temperature (℃)
-40~+85
Package Dimension (mm)
90*20*10 ; 100*80*10mm; 34*5.5mm; Customized LGX Case
