AWWA C504 Ductile Iron DI Butterfly Valve For Steel Work

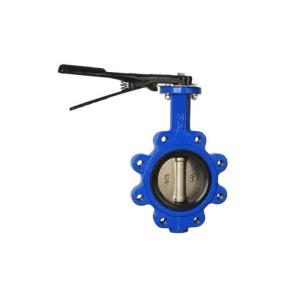

Lug Type Butterfly Valve

1. PROFUCT PROFILE

Lug type butterfly valve rubber lined is available to do the repair in the downstream pipelines and equipment directly, which is mounted between two matching flanges of the piping with bolts & nuts.They feature threaded tapped lugs positioned on the valve flanges for bolt connections. According to actual piping conditions, lug type butterfly valve can be manufactured according to different flanges standards, such as ASMEB16.1, EN1092, AS2129, DIN2501, BS4504, JIS10K. Lugged type butterfly valve can be mounted onto the piping ends as exhaust valve too. Prosper Flow can manufacture the lugged butterfly valve according the standards of EN593, API609 and ASME B16.34 with the sizes of 2″~24″ (DN50~600mm).

2. FEATURES

· Simple and compact construction
· Small in size and light in weight
· Quick 90° on-off operation, low torque
· Good sealing capability, no leakage
· It can be mounted wherever needed
· No need for any additional intermediary parts.
· In addition to its use as an on-off valve, can also be used for the purpose of proportional flow control.
· Can be installed in any desired position.
· Maintenance-free.
· The valve body and disc are accurately machined which results in low operating torque and long service life and reliability.

3. TECHNICAL SPECIFICATION

· PN10 / PN16 / 125LB / 150LB / JIS10K / 150PSI / 200PSI
· Size: 2″~24″ (DN50~600mm)
· Materials: cast iron A126 B (GG25), ductile iron A536 65-45-12 (GGG40/50)
· Epoxy coating with thickness ≥ 250μm
· Working temperature: 0℃~+80℃

4. STANDARD

· Design & manufacturing: ASME B16.34, EN593, API609
· Face to face: ANSI B16.10, EN 558-1, API609
· Matching flanges: ANSI B16.1, EN 1092, JIS10K, AS 2129
· Top flange: ISO 5211
· Inspection & testing: API598

5. APPLICATION

· Water works, water projects
· Environment protection
· Public facilities
· Power plant
· Real estate
· Petroleum, chemical industry
· Steel work, metallurgy
· Paper plant
· Food & beverage
· Water treatment plant

Anhui Prosper Flow Technology Co., Ltd. is located in Tongling City, Anhui Province, a famous ductile iron valve production base   in China.Such as the Giant AVK Valve and TALIS Spain,who all buy castings here.
This is a manufacturer of production and sales of valves and fittings. It has import and export license. Prosper flow has a high-quality professional team, and the team's core personnel have more than 10 years of experience in the valve industry. With extensive experience and continuous development and efforts, we understand the international standards and strict export quality requirements of ductile iron valves. We provide OEM services for the world-famous valve companies. Our valves cover British Standard (BS), German Standard (DIN), American Standard (AWWA), Australian Standard (AS), South African Standard (SABS) and National Standard (GB). Now it has its own valve logo ‘ZW’. We have won the favor of the market and customers with advanced management and technology, high quality products and excellent service.
