50mm Travel Motorized XY Stage

Precision XY Two Axis Micro Translation Table 50mm Travel Motorized XY Stage

Precision electric integral translation stage : PT-XY50S

The electric translation stage refers to the electric equipment driven by the motor, and the control surface moves in the horizontal direction (or X axis, Y axis). It can be controlled by a variety of motors, including: two-phase stepper motor, three-phase stepper motor, servo motor Motor, linear motor, direct drive motor (torque motor), etc.

Product description

The XY movement as a whole can be linked with two axes, and the XY stroke is 50MM.

It can be used with the corner of the rotary table and the lifting table.

Product specification

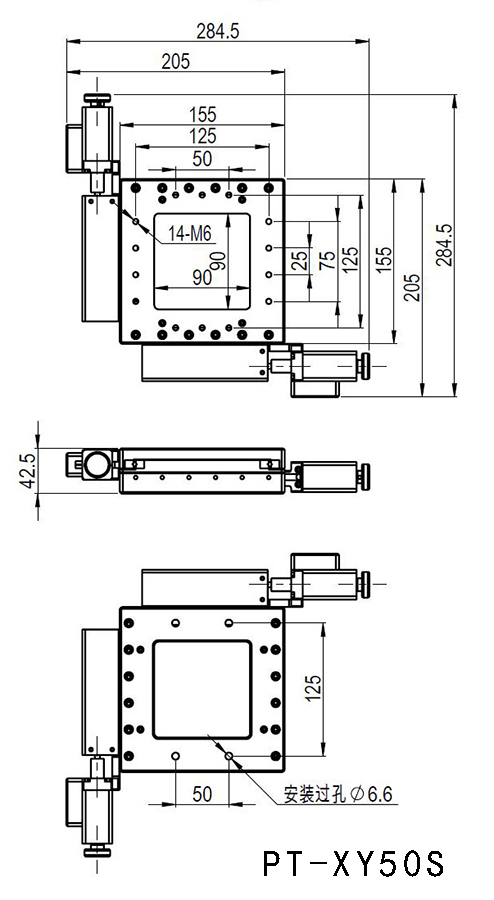

Product Dimension Map

Product features

1. The main material is hard aluminum alloy, the surface is black anodized, with good wear resistance and beautiful appearance.

2. High-quality finely ground screw drive, small lead, the same subdivision can achieve high resolution.

3. Using precision grade cross roller guide rail, high strength, strong load capacity and good durability.

4. The mounting surface of the guide rail adopts precision machining technology, which makes the product have high motion accuracy.

5. It adopts precision-grade cross-roller guide rail, which has high strength, strong load capacity and good durability. It is equipped with Japan's Shinano 28 (1.8°) motor, which can provide high resolution and positioning accuracy.

6. Optional: replace the servo motor, grating ruler, and then make the modification of the product.

Beijing PDV Instrument Co., Ltd is a collection of optics, precision machinery, automatic control technology independent high-tech research and development enterprises. Since 2005, we have been serving the scientific research institutes and universities. We have developed the hardware and software system (optical path construction, software development, mechanical circuit design, etc.) according to the needs of customers. Through long-term unremitting efforts, the process of building the system to control the optical path and excellent service to customers, we’ve grown into a well-known manufacturer among scientific research, colleges and universities, machinery automation and many other areas.

The company designs and produces telephoto lens, automatic mechanical console, manual console, ultra brightness light source and other products. The products focus on modularization and integration, and have formed mass production. They have complete specifications and good quality. At the same time, they provide customized services. With excellent quality, the products are widely used in electronic and precision industrial testing, laboratory and measuring instrument industries, scientific research institutions, and exported to overseas markets such as Japan, South Korea, Europe and the United States.

The company has strong technical force and has a group of professional teams engaged in R & D, production and sales of optoelectronic products for a long time. It has extensive professional experience in displacement precision adjustment, motion control, precision image measurement and so on.

We hope to become your reliable partner with perfect products and reasonable price, and win your support.
