Pure Zirconium Crucible Bar ASTMB551 Zr702 Solution Annealed

Categories Zirconium Bar
Brand Name: JINXING
Model Number: Zirconium
Certification: ISO 9001
Place of Origin: China
MOQ: 5kgs
Price: 30~150USD/kg
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10000kgs/M
Delivery Time: 10~25 work days
Packaging Details: Plywood case
Material: Zr 700,Zr 702.Zr 704,Zr 705
Standard: ASTM B551
Process: Grinding,Bending,Cutting
Heat Treatment: Solution Annealed
Surface: Polishing,Alkali Cleaning,Chemical Cleaning,Black Oxide,etc.
Density: 6.51g/cm3
Shape: straight or tapered,with or without cover,round or square
Size: Dia.:40 mm - 150mm Thickness:0.5-50mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Pure Zirconium Crucible Bar ASTMB551 Zr702 Solution Annealed

Pure Zirconium Crucible

Description:

Zirconium is a metal with strong corrosion resistance, which can form a dense oxide protective film almost instantaneously, which can cope with almost all acid corrosion. Pure zirconium crucibles have high purity (the content of zirconium is above 99.6%) and high melting point (up to 1855°C), which is an ideal material for melting other metals.Compared with nickel crucible and platinum crucible, pure zirconium crucibles have better mechanical strength at high temperature, better thermal stability, and higher cost performance.

Application:

Pure zirconium crucibles are often used as fluxes and fluxes in chemical processing, and are the most effective crucible materials for fusion using sodium carbonate or sodium peroxide. They must be used in an inert gas environment, which prolongs the life of the crucible and yields higher quality metal crystals, virtually eliminating sample contamination.The outstanding thermal conductivity and corrosion resistance of pure zirconium crucibles make them widely used in smelting industry, chemical corrosion resistant equipment and high temperature superconducting materials.


Machanical Properties:

MaterialStateRm (≥)/MPaRp0.2 (≥)/MPaA50mm (≥)/%
Zirconium 702 (UNS R60702)Annealed37920716
Zirconium 704 (UNS R60704)Annealed41324114
Zirconium 705 (UNS R60705)Annealed55237916

Zirconium Crucible Sizes
CapacityTop DiameterBottom DiameterHeight
35 mL40 mm33 mm40 mm
42 mL45 mm35 mm44 mm
50 mL45 mm40 mm42 mm
58 mL50 mm38 mm45 mm

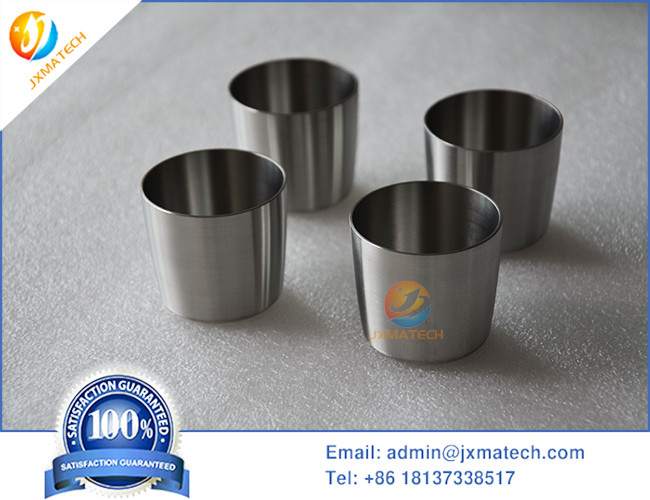

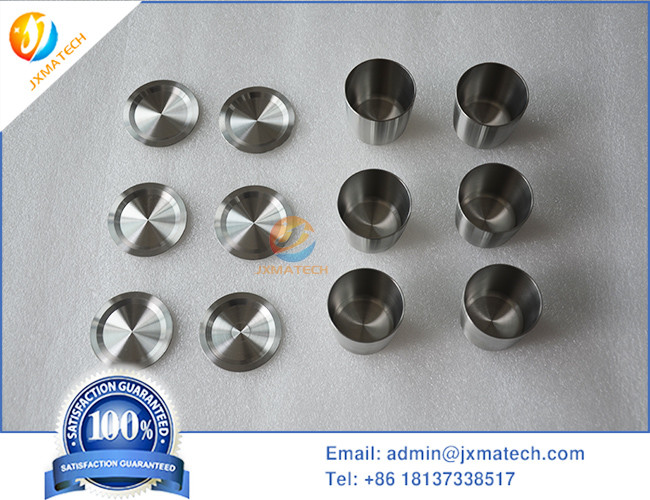

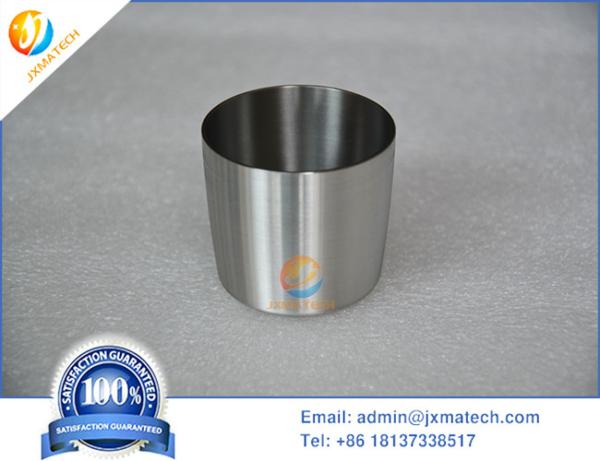

Pure Zirconium Crucible Pictures:
