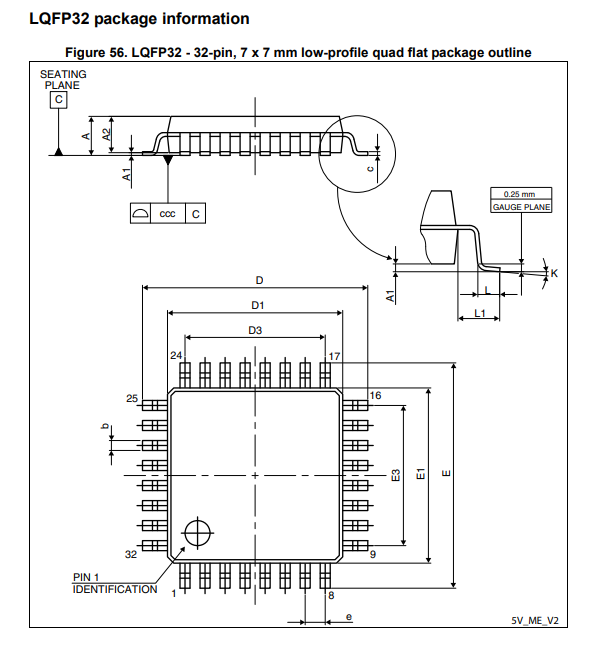

STM8S207K6T6C 8 Bit Microcontrollers MCU 24MHz Electronic Components LQFP-32

STM8S207K6T6C 8bit Microcontrollers MCU Performance Line 24MHz Electronic Components LQFP-32

Performance line, 24 MHz STM8S 8-bit MCU, up to 128 KB Flash, integrated EEPROM, 10-bit ADC, timers, 2 UARTs, SPI, I²C, CAN

Features

Core

– Max fCPU: up to 24 MHz, 0 wait states @ fCPU16 MHz

– Advanced STM8 core with Harvard architecture and 3-stage pipeline

– Extended instruction set

– Max 20 MIPS @ 24 MHz

Memories

– Program: up to 128 Kbytes Flash; data retention 20 years at 55 °C after 10 kcycles

– Data: up to 2 Kbytes true data EEPROM; endurance 300 kcycles

– RAM: up to 6 Kbytes

Clock, reset and supply management

– 2.95 to 5.5 V operating voltage

– Low power crystal resonator oscillator

– External clock input – Internal, user-trimmable 16 MHz RC

– Internal low power 128 kHz RC

– Clock security system with clock monitor

– Wait, active-halt, & halt low power modes

– Peripheral clocks switched off individually

– Permanently active, low consumption power-on and power-down reset

Interrupt management

– Nested interrupt controller with 32 interrupts

– Up to 37 external interrupts on 6 vectors
