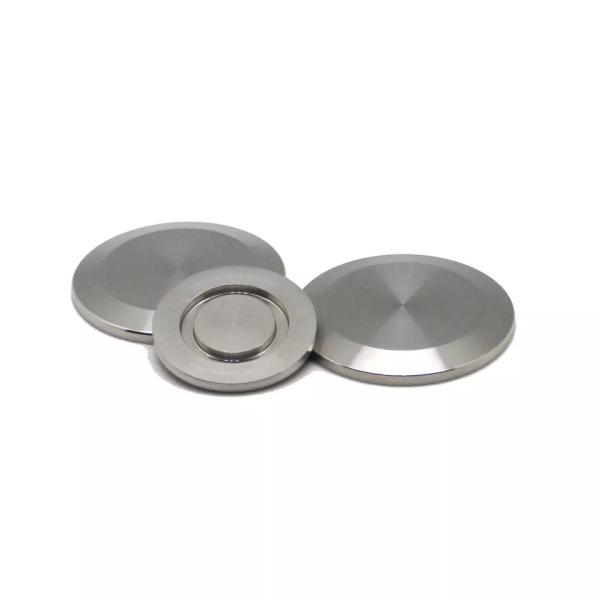

KF25 KF63 KF100 Blank Flange Vaccum Fittings

Overview

Quick Details

Place of Origin:

Zhejiang, China

Brand Name:

QiiMii

Model Number:

FBB

Technics:

Forged

Connection:

Flange

Shape:

Equal

Packaging & Delivery

Lead Time:

Quantity(pieces)	1 - 1000	>1000
Est. Time(days)	15	To be negotiated

Product Description

Applications

ISO-KF fittings can be used in a wide variety of applications including:

• Roughing and foreline plumbing

• Small systems

• Systems requiring frequent cleaning or modification

• Research and teaching laboratories

ISO-KF components are primarily designed for use at subatmospheric pressure.

Because of the large number of elastomer seals used.

Installation

The ISO-KF components are assembled by inserting a centering ring between the two flange faces, then securing the assembly with a flange encompassing clamp (see Figure 2).

Material and Size

• Flanges, Blanks, Fittings: Stainless Steel 304 or 316L
• Clamps: Aluminum or Stainless Steel 304
• Oring: Viton

Vacuum range

Elastomer seal: >= 1 x 10-8 Torr

Temperature range
Viton: -50°C to 200°C

Detailed Images

KF Flange Series

• Short / Long Flange Weld Stub

• Socket Weld Flange

• Blank Stubs Flange

• Blank Flange

• Bored Black Flange

• Center Ring with O-ring

• KF Bellow

• KF Double Pin Clamp

Short / Long Flange Weld Stub

Bellows

Center Ring with O-ring

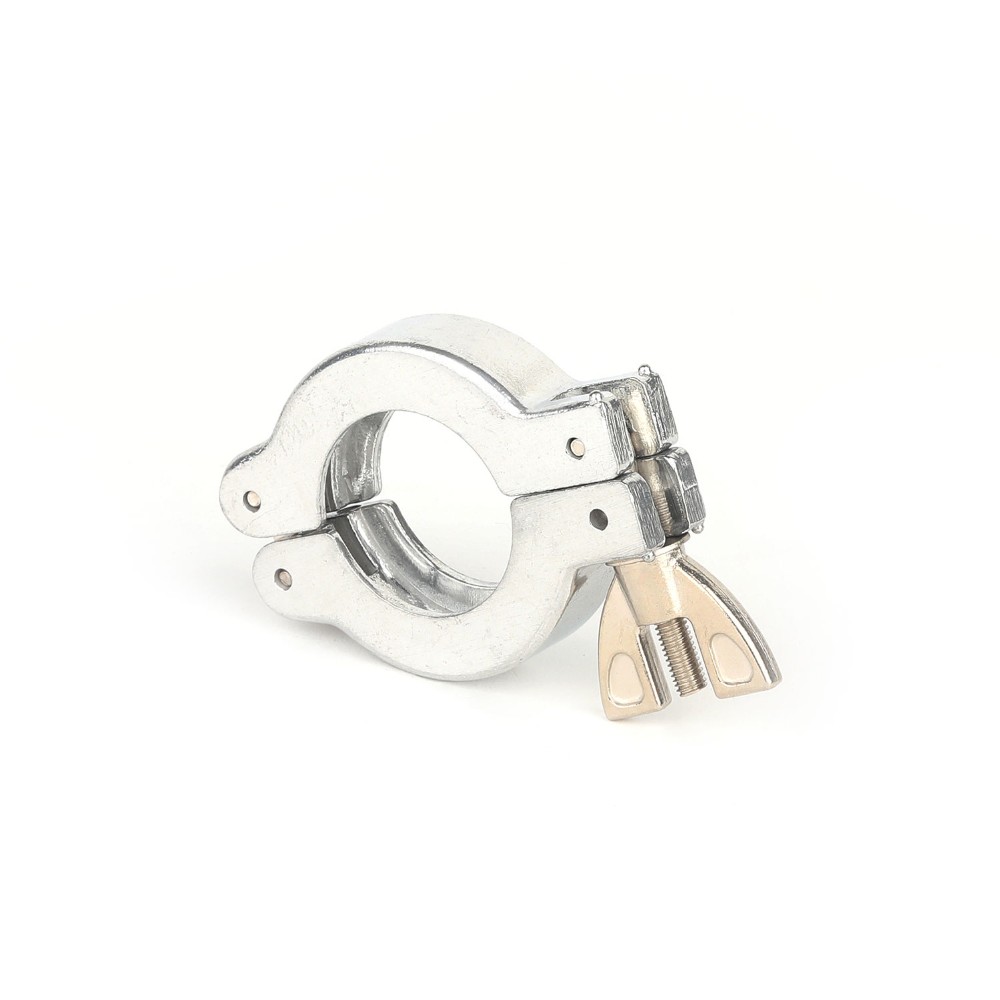

Double Pin Clamp

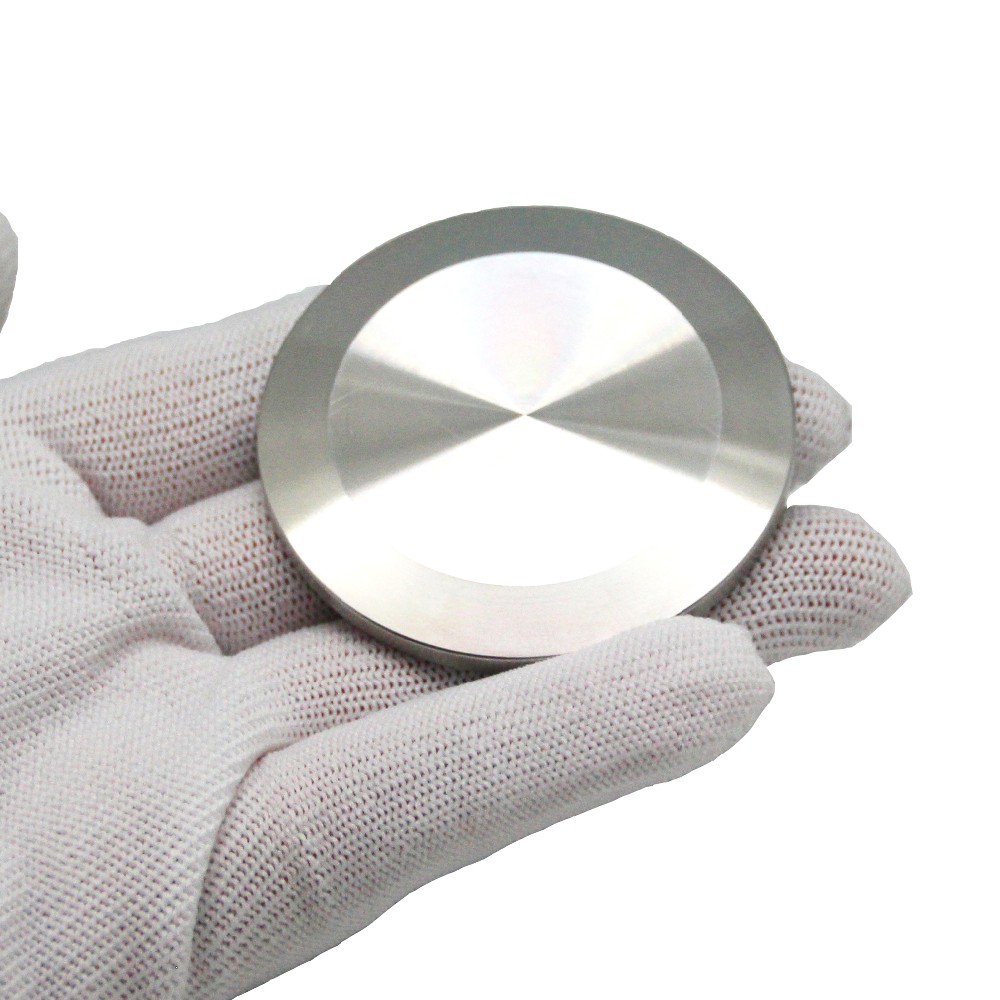

Blank Flange

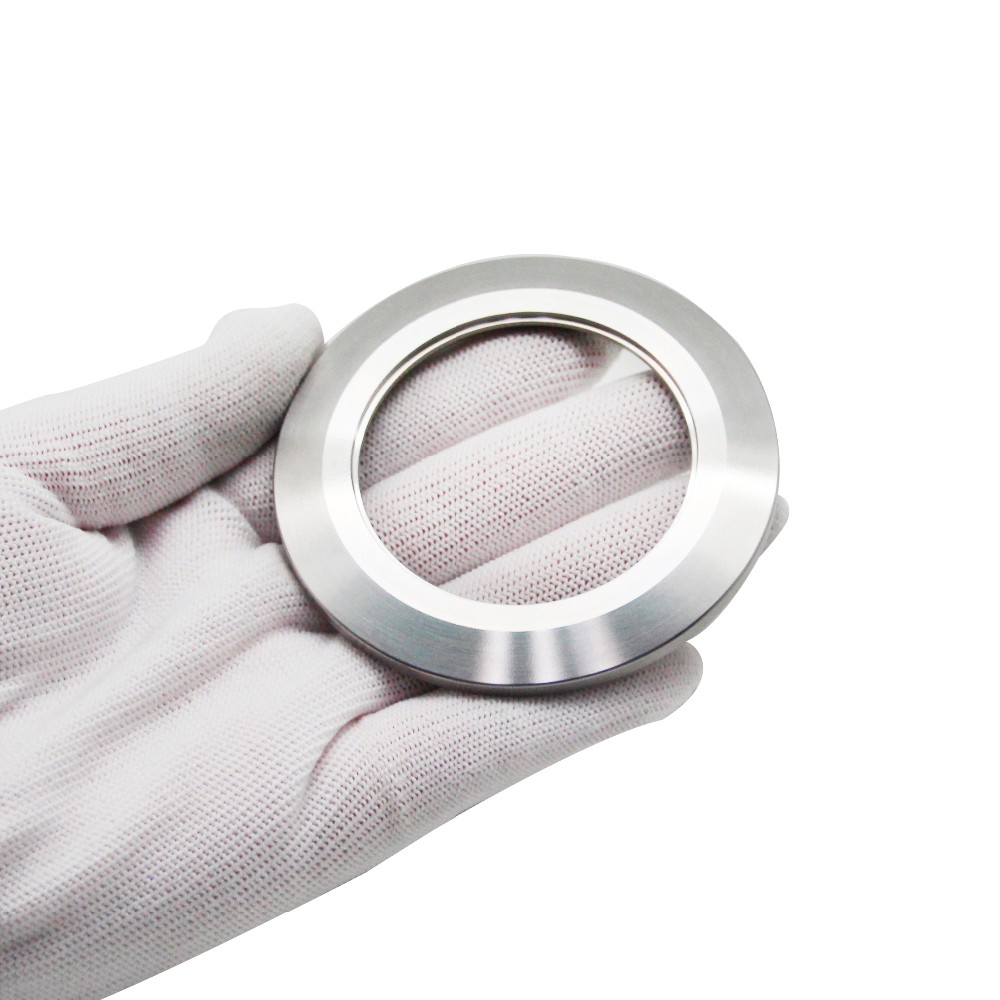

Bored Black Flange

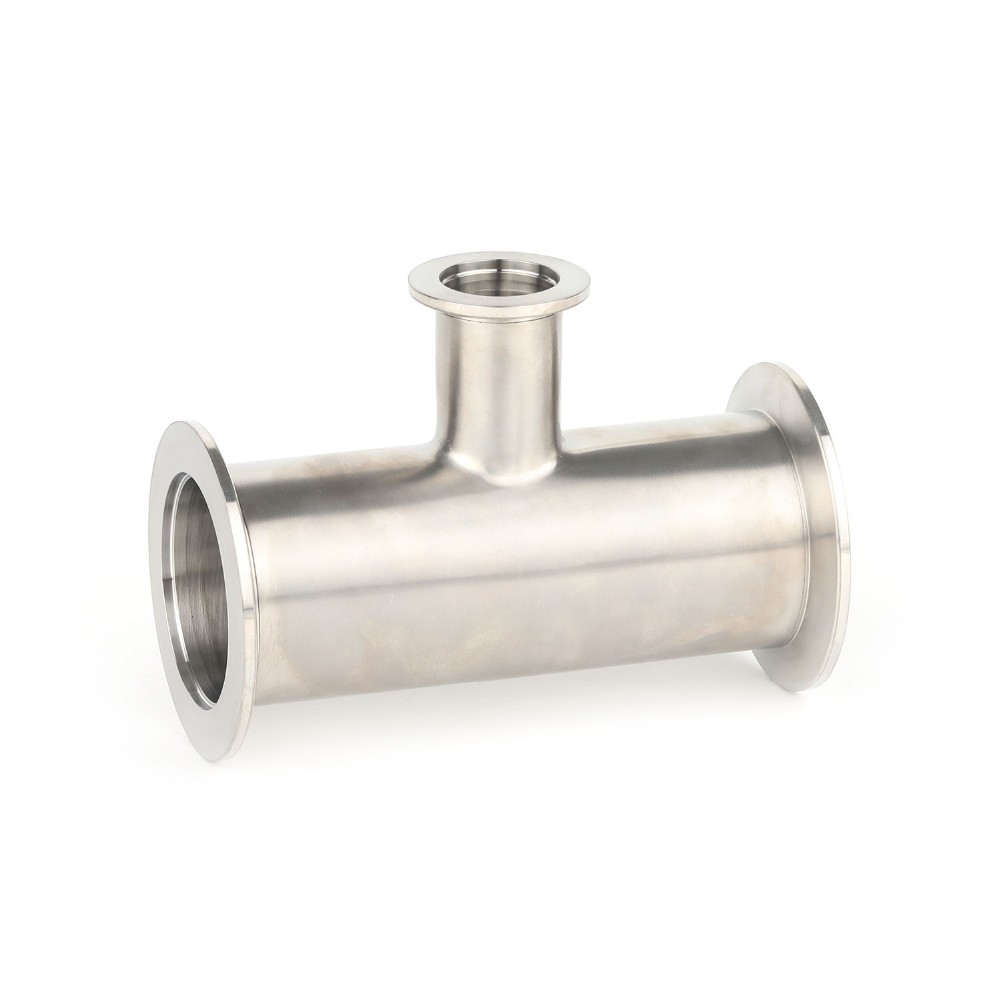

KF Tee

KF Elbow

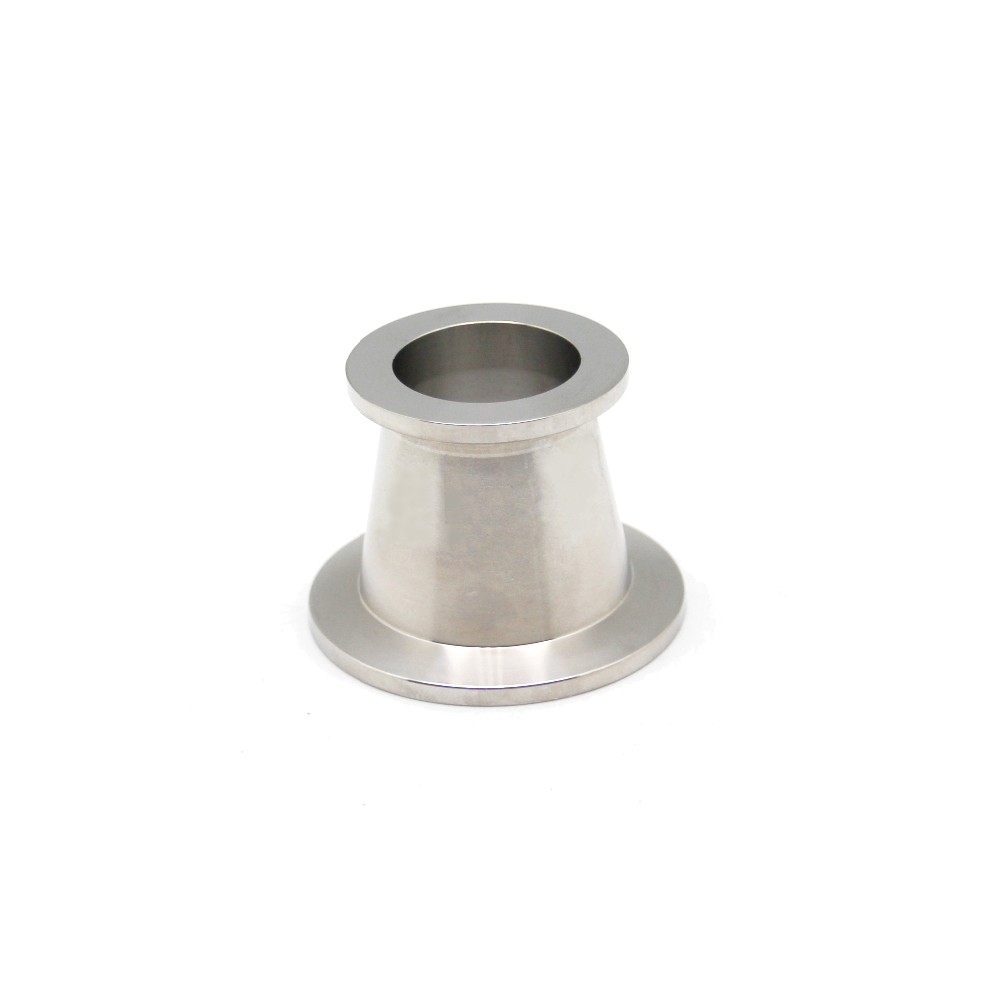

KF Reducer

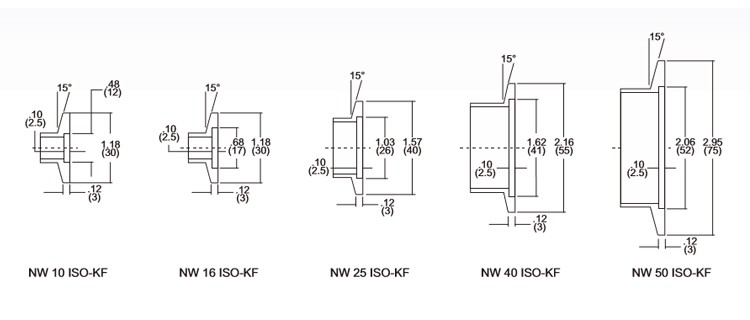

Drawing

FAQ

Q: Does this tubing come with triclamp ends to be coupled together?

A: This particular tubing comes without tri-clamp ends standard. We can always weld tri-clamp ferrules to the end of tubes for any specific length you need. These products are referred to as tri-clamp spool assemblies. If you need a specific length, please
contact us.

Q: Are you able to cut tubing to lengths that don't require freight shipping? Say 5' lengths for example.?

A:Yes, we are able to cut down to other sizes. UPS Ground is able to ship up to 7' without the tubing being considered "oversized".We do charge a cutting fee for this service, however. Please contact us for a quote.

Q:How much does 1 stick of 4" tube weigh?

A: One 20' Stick of 4" Sanitary Tubing weighs approximately 75 pounds.

Q:You list gauge of this tubing at 16, but the wall thickness at 0.065". Isn't 16 gauge 0.0625"?

A: The wall thickness and gauges are all displayed in the table below. Please contact us if you have any other questions.

Q: Do you sell tubing in anything less than cases? I need to order just over 400 feet but don't want to pay for two cases as this is More than I need.
A: We do sell tubing on an individual basis however there is a $50 "broken box" fee applied to any order less than an entire case.Since we don't offer a way to order individual tube pieces online please call us to place an order over the phone.

Q: Do this product ship via freight?
A: Yes, our tubing comes in standard 20 foot lengths and will need to ship via freight. I'd also like to mention that there is a broken box charge meaning that if you do not order an entire box of tubing you will be charge additional fees as such. For more information please contact us. Thanks.
