Automatic Continuous Hardening And Tempering Furnace 550C

Categories Tempering Furnace
Brand Name: IRIS
Model Number: IR-TF
Certification: CE
Place of Origin: Henan,China
MOQ: 1set
Price: USD 15000-25000 per set
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500SETS per month
Delivery Time: 30 days
Packaging Details: Container
Product name: Hardening And Tempering Furnace
Temperature: 550 degree
Size: 1600×1800×2100 mm
Power: 36 kw
Furnace weight: 2500 kg
Max capacity: 400kg
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

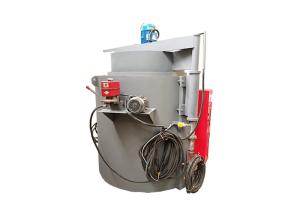

Automatic Continuous Hardening And Tempering Furnace 550C

Hardening And Tempering Furnace Tempering Machine Automatic

Continuous Hardening And Tempering Furnace


The program control heating method is adopted, which has the unparalleled advantages of conventional

control in the temperature control where the step heating and the heating rate are required. It has many

advantages such as high temperature control accuracy, good followability, high degree of automation,

many storage curves, convenient retrieval, long data storage time (up to 10 years), etc., and is the first choice

for modern temperature control. A program-controlled instrument can store multiple curves or dozens of

inflection points to meet various complex temperature control requirements.


Parameter

Effective sizeФ700mm×1000mm
Rated power36KW
Maximum temperature550 ℃
Heating zones1 zone

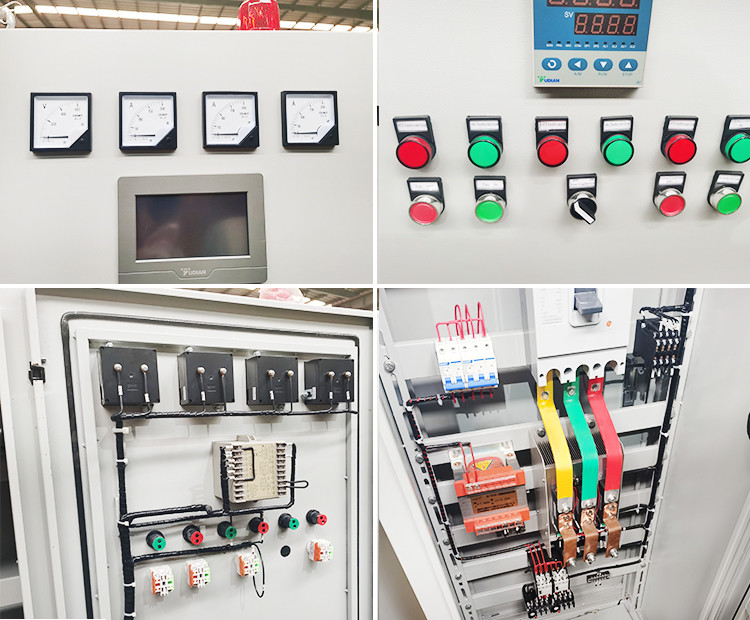

Temperature controlintelligent instrument PID
Power executive componentsSSR360A/1100V solid state power module
Temperature control deviation±2°C
Temperature control accuracy0.3 grade
Soaking methodforced convection with fan on the furnace top
Furnace temperature uniformity≤±3℃
Rated furnace capacity≤400Kg
Heating time of empty furnace≤1.2h
Empty furnace loss≤20KW
Furnace wall temperature rise≤ ambient +30 ℃
Furnace cover lifting methodhydraulic
Furnace weight2800Kg
Dimensions1600mm×1800mm×2100mm
