Drum Flexible Gear Coupling Electrostatic Spraying GIICL G20 G10

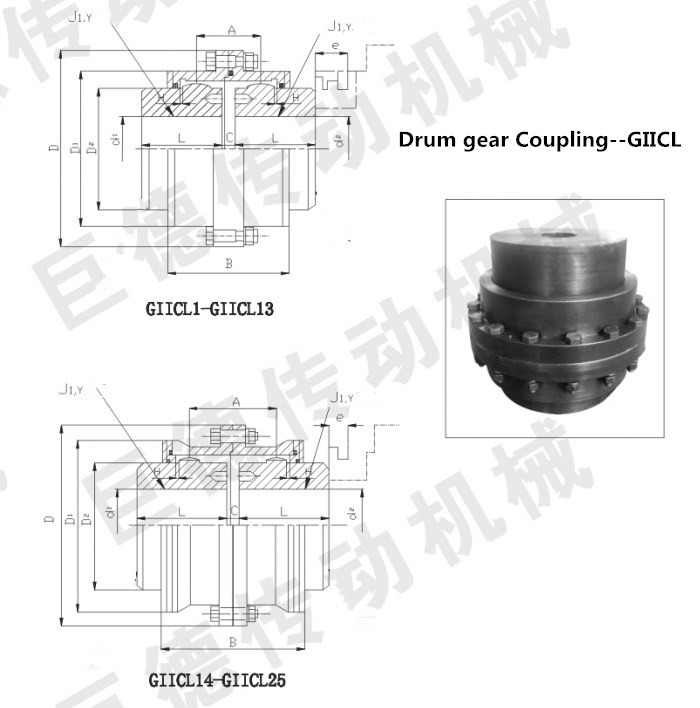

GIICL Steel Drum Gear Coupling Drum Gear Coupling G20 G10

Name: Drum Flexible Gear Coupling Electrostatic Spraying GIICL G20 G10
Brand: jude
Price: 1 USD

What are gear couplings and how do they work?

Gear couplings are designed to transmit torque between two shafts that are not collinear. They typically consist of two flexible joints—one fixed to each shaft—which are connected by a spindle, or third shaft. The gear coupling connects the drive motor to the gearbox in hoist mechanisms, but it can also connect the gearbox directly to smaller wire rope drums using a flanged half.

In terms of their design, gear couplings transmit torque via hubs with crowned gear teeth that are in permanent mesh with the straight gear teeth of the sleeves—a design that provides the highest torque transmission for the smallest size. They also run at high speeds, conform to the AGMA bolting pattern and compensate for angular, radial and axial shaft misalignment.

Size	Torque Tn N-m	Speed [n] r/min	Bore	Length	D	H	A	C	Rotational inertia kg.m2	Lube mL	Weight Kg
			Bore	Y,J1
			dl,d2	L
GIICL1	355	4000	14-35	38-82	103	2.0	36	8	0.0035- 0.00375	51	3.1
GIICL2	630	4000	16-45	38-112	115	2.0	42	8	0.00550- 0.00675	70	3.5
GIICL3	1000	4000	22-56	38-112	127	2.0	44	8	0.010- 0.0113	68	7.0
GIICL4	1600	4000	38-65	60-142	149	2.0	49	8	0.02-0.0245	87	12.2
GIICL5	2800	4000	40-75	84-142	167	2.5	55	10	0.0378- 0.0433	125	18.0
GIICL6	4500	4000	45-90	84-172	187	2.5	56	10	0.0663- 0.0843	148	26.5
GIICL7	6300	3750	50-105	84-212	204	3.5	60	10	0.103-0.151	175	39.2
GIICL8	9000	3300	55-115	84-212	230	3.0	67	12	0.167-0.241	268	49.7
GIICL9	14000	3000	60-135	107-252	256	3.0	69	12	0.316-0.470	310	79.6
GIICL10	20000	2650	65-150	107-252	287	3.5	78	14	0.511-0.745	472	101
GIICL11	31500	2350	70-175	107-302	325	3.5	81	14	1.096-1.588	550	161
GIICL12	45000	2100	75-200	107-352	362	4.0	89	16	1.623-3.055	695	213
GIICL13	63000	1850	150-225	202-352	412	4.5	98	18	3.925-4.918	1019	315
GIICL14	100000	1650	170-250	242-410	462	5.5	172	22	8.025-9.725	3900	476
GIICL15	160000	1500	190-285	282-470	512	5.5	182	22	14.300- 17.45	3700	696
GIICL16	224000	1300	220-320	282-470	580	7.0	209	28	23.925-29.1	4500	913
GIICL17	315000	1200	250-365	330-550	644	7.0	198	28	43.095- 53.725	4900	1322
GIICL18	450000	1050	280-400	380-650	726	8.0	222	28	78.525- 99.500	7000	1948
GIICL19	630000	950	300-470	380-650	818	8.0	232	32	136.750- 175.5	8900	3026

Type G20 Standard Flanged Sleeve Double Engagement

For Sizes 1010G thru 1055G,

Type G10 Shrouded Bolts furnished

only when specified on order

Dimensions (in)

Size ①	Torque Rating (Ib-in)④	Allow Speed RPM⑤	Max Bore ⑥	Min Bore ⑦	CpIgWtWith No Bore (lb)		Lube Wt (lb)	A	B	C	D	F	H	J	M	GAP
Size ①	Torque Rating (Ib-in)④	Allow Speed RPM⑤	Max Bore ⑥	Min Bore ⑦	G10	G20	Lube Wt (lb)	A	B	C	D	F	H	J	M	GAP
1010G	10,080	8,000	1.875	0.50	9	10	0.09	4.56	3.50	1.69	2.70	3.30	0.55	1.53	2.00	0.125
1015G	20,790	6,500	2.375	0.75	17	20	0.16	6.00	4.00	1.94	3.40	4.14	0.75	1.88	2.40	0.125
1020G	37,800	5,600	2.875	1.00	30	35	0.25	7.00	5.00	2.44	4.14	4.98	0.75	2.34	3.00	0.125
1025G	66,150	5,000	3.625	1.25	55	65	0.50	8.38	6.25	3.03	5.14	6.10	0.86	2.82	3.60	0.188
1030G	107,100	4,400	4.125	1.50	85	95	0.80	9.44	7.37	3.59	6.00	7.10	0.86	3.30	4.20	0.188
1035G	163,800	3,900	4.875	2.00	135	150	1.20	11.00	8.63	4.19	7.00	8.32	1.12	3.84	5.10	0.250
1040G	270,900	3,600	5.750	2.50	195	215	2.00	12.50	9.75	4.75	8.25	9.66	1.12	4.38	5.70	0.250
1045G	371,700	3,200	6,750	3.00	280	300	2.30	13.62	10.93	5.31	9.25	1,079	1.12	4.84	6.50	0.312
1050G	500,900	2,900	7.375	3.50	390	420	3.90	15.31	12.37	6.03	10.00	12.04	1.50	5.54	7.20	0.312
1055G	655,200	2,650	8.250	4.00	525	550	4.90	16.75	13.56	6.62	11.00	13.16	1.50	6.22	8.00	0.312
1060G	800.100	2.450	9.125	4.50		675	7.00	18.00	15.13	7.41	12.00	14.41	LOO	6.66	9.00	0.312

Nanpi county Jude transmission equipment manufacturing co., LTD. is a enterprises that specialized in research and production coupling. Also we can develop new products and bulk-production. With rich experience, professional R&D team and various equipment in coupling, it has superior conditions to satisfied your different requirements.

Company main products are: all kinds of couplings for machinery industry all over the word , such as radial elastic coupling, tyred coupling, universal coupling, drum gear coupling, plum flower form elastic coupling, rigid coupling oldham coupling, roller chain coupling, diaphragm coupling, coupling column elastic sleeve pin couplings, elastic dowel pin, elastic dowel pin coupling, pump shaft coupling, etc..

The concepts of our company is live on quality and develop on honor. The coupling has the advantage of high quality, low price, complete product models.Our company will be your best choice, and we look forward to cooperate with you.
