Name: Micro Air Dryer For An Air Compressor Systems 290W 280LMin
Brand: Willing-Cool
Price: 1 USD

Home > Air-Compressor Parts >

Micro Air Dryer For An Air Compressor Systems 290W 280L/Min

Categories	Portable Compressed Air Dryer
Brand Name:	Willing-Cool
Model Number:	YD-1
Certification:	CO
Place of Origin:	Xiamen, China
MOQ:	10pcs per item
Price:	FOB Xiamen, US Dollar.
Payment Terms:	T/T, L/C, Western Union, MoneyGram
Supply Ability:	3,000pcs/ month
Delivery Time:	20 days after receiving formal purchasing order & advance payment
Packaging Details:	carton as customer
Power:	240W
Inlet Flow:	150L/min
Working Pressure:	≤0.8MPa
Support:	1 Year warranty
Power Voltage:	220V/110V
Inlet air temperature:	35℃
Inlet / Outlet connector:	G1/2
Overall Dimensions:	210162200mm

Contact Now

Add to Cart

Company Info.

Xiamen Willing-cool Machinery Co.,Ltd.

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

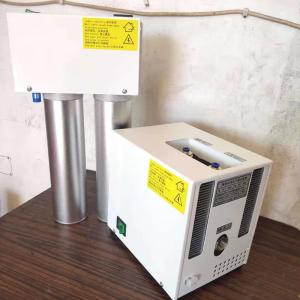

Micro Air Dryer For An Air Compressor Systems 290W 280L/Min

Compressed Air Refrigerated Dryer Filter for Hyperbaric Oxygen Chamber

Product Description

Model No.	YD-1S	YD-1	YD-2	YD-3
Inlet flow L/min@0.8MPa*	150L/min	150L/min	280L/min	420L/min
Power	240W	240W	290W	390W
Working Pressure	≤0.8MPa	≤0.8MPa	≤0.8MPa	≤0.8MPa
Voltage	220V/110V	220V/110V	220V/110V	220V/110V
Inlet Temperature	35℃	35℃	35℃	35℃
Filter Accuracy	50um	50um	50um	50um
Inlet / Outlet connector	G1/2	G1/2	G1/2	G1/2
Overall Dimensions	210162200mm	230161285mm	230161285mm	230167345mm
Wight	6kg	7kg	7.5kg	9.5kg

YD Series Air Dryers are the wonderful substitute for air filter in
pneumatic system. If a filter in the system is difficult to ensure
the reliable operation of the system, take YD Series Air Dryer into
account.

For small compress air system, less than 400L/min air flow rate,
big air dryer and not suitable and economic. And for most of small
pneumatic devices, they need low cost and just enough dry air.

YD series miniature dryer meet these requirements. Different from
the main line dryer that usually mounted after the air compressor,
YD series miniature air dryers are designed for the pneumatic
equipment of terminal of air line.

Compact and lightweight design, requires less space.Even smaller
than a shoes box.

They have two methods to drain CONDENSATE.

1.solenoid valve, controlled by Electronic Timer that built in the
dryer. The time of discharge condensate is fixed in 5 seconds.
Interval of discharge is adjustable from 1 to 10 minutes.

2.Float drain Without noise and pressure fluctuation while
discharge. This is a pneumatic air filter with built in float
drain.

Details Images

Company Profile

Xiamen Willing-cool Machinery Co., Ltd.

We are manufacturer of dryer for pneumatic use or compressed air.
We specialist in R&D and production of miniature air compressed
air dryer for several years.
We have a lot of users in industries such as industry, medical
care, environmental protection, laboratory testing, etc.
