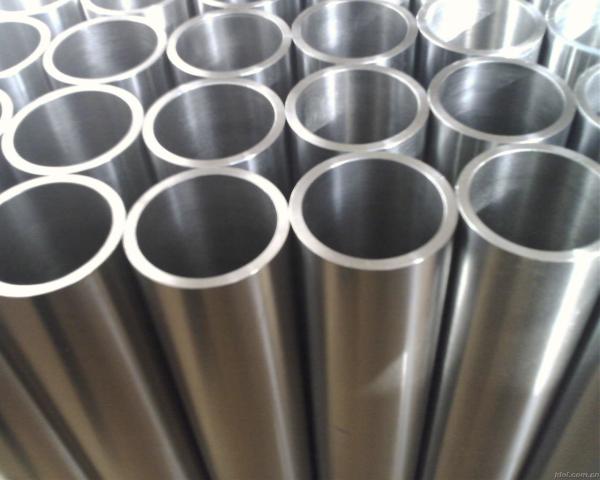

Tp304H Seamless Stainless Steel Tube Pipe Smls 347 2205
Description
The yield strength of 2205 duplex stainless steel is more than
double that of ordinary austenitic stainless steel. This
characteristic allows designers to reduce weight when designing
products, giving this alloy a price advantage over 316,317L.
This alloy is particularly suitable for the temperature range of
-50°F/+600°F.
For applications beyond this temperature range, this alloy may also
be considered, but there are some limitations, especially when
applied to welded structures
Pressure vessels, high-pressure storage tanks, high-pressure
pipelines, and heat exchangers (chemical processing industry).
Specification
| Product Name | Tp304H Seamless Stainless Steel Tube Pipe Smls 347 2205 |
| Type | Seamless or Welded |
| Material (ASTM) | 201 304 304L 309s 310s 316 316L 316TI 317L 321 904L S32205 |
| Material (DIN) | 1.4301 1.4306 1.4541 1.4401 1.4404 1.4571 1.4539 1.44621.4410 1.4833 1.4845 |
| Outter Diameter (OD) | 3-1220mm |
| Thickness | 0.4-120mm |
| Length | 6000mm 5800mm 12000mm or Customized |
| Surface Finished | No.1 No.3 No.4 HL 2B BA 4K 8K 1D 2D |
| End/Edge | Plain Mill |
| Technique | Cold Drawn or Hot |
| Brand | TISCO BAOSTEEL |
| Standard | ASTM AISI DIN JIS GB EN |
| Certificate | ISO CE |
| Application | Construction, Industry, decoration, and foodstuff, etc. |
| Monthly Supply | 5000 Tons |
| Delivery Time | 7-10 Working Days after Deposit |
| Package | Plywood Case/Pallet or Other Export Package Suitable for Long Distance Shipping |
Grade | C | Cr | Ni | Mo | Other |
301 | ≤0.15 | 16.0~18.0 | 6.00~8.00 | - | - |
301L | ≤0.030 | 16.0~18.0 | 6.00~8.00 | - | N≤0.20 |
304 | ≤0.08 | 18.0~20.0 | 8.00~10.50 | - | - |
304J1 | 0.02~0.05 | 16.5~17.1 | 7.5~7.9 | - | Cu1.9~2.2 |
304L | ≤0.030 | 18.0~20.0 | 9.00~13.00 | - | - |
304N1 | ≤0.08 | 18.0~20.0 | 7.00~10.50 | - | N0.10~ 0.25 |
304N2 | ≤0.08 | 18.0~20.0 | 7.50~10.50 | - | Nb≤0.15 |
316 | ≤0.08 | 16.0~18.0 | 10.00~14.00 | 2.00~3.00 | - |
316L | ≤0.03 | 16.0~18.0 | 12.00~15.00 | - | - |
321 | ≤0.08 | 17.0~19.0 | 9.00~13.00 | - | Ti5×C% |
409L | ≤0.03 | 17.0~19.0 | - | - | Ti6×C%~0.75 |
410L | ≤0.03 | 11.0~13.5 | - | - | - |
430 | ≤0.12 | 16.0~18.0 | - | - | - |
430J1L | ≤0.025 | 16.0~20.0 | - | - | Nb8(C%+N%)~0.8 Cu0.30~0.80 |
436L | ≤0.025 | 16.0~19.0 | - | 0.75~1.25 | Ti,Nb,Zr8 ×(C%+N%)~0.8 |
410 | ≤0.15 | 11.5~13.5 | - | - | - |
420J1 | 0.16~0.25 | 12.0~14.0 | - | - | - |
420J2 | 0.26~0.4 | 12.0~14.0 | - | - | - |
2205 | 0.38~0.43 | 21~23 | 4.5~6.5 | 2.5~3.5 | - |
2507 | ≤0.03 | 24.0~26.0 | 6.00~8.00 | 3.0~5.0 | - |
Surface Finish
Surface finish | Characteristics & Application |
NO.1 | Hot-rolled surface, annealed and pickled, can be used as
cold-rolling material,industial tanks and chem i cal devices. |
NO.2D | Cold-rolled, an nealed and pick led with out skinpassing the dull
prod ucts can be used as auto mo bile parts, build ing materrials
and pipings. |
NO.2B | The surface brightness and flatness of NO.2B is better than NO.2D.
Then through a special surfacetreament to improve its mechamical
properties, N02B could nearly satisfy com pre hen sive uses. |
NO.3 | Polished with abra sive belt of grit #100#120,have bet ter bright
ness with dis con tin u ous coarse stria, used as in ner and ex ter
nal or na ments for building, elec tri cal ap pli anc es and
kitchen uten sils etc. |
NO.4 | Polished with abrasive belt of grit #150#180, have better
brightness with discontinuous coarse stria, but thinner than NO.3,
are used as bathtud buildinginner and external ornaments electrical
appliances, kitchen utensils and food processing equipment etc. |
HL | Polished with abrasive belt of grit #150-320 on the No.4 finish and
has continuous streaks, mainly used as building ornaments,
elevators, door of building, frontal plate etc. |
BA | Cold rolled, bright an nealed and skin passed, the prod uct has ex
cel lent bright ness and good re flex iv i ty like mirror, used for
lectrical appliances, mirror, kitch en apparatus, or na ment ma te
ri als etc. |
Good weldability and flame cutting, nonmagnetic. The shipbuilding industry, welded constructions.
Physical properties (average values) at ambient temperature
Modulus of elasticity [103 x N/mm2]: 210
Density [g/cm3]: Approx. 7.80
Solution Annealing
Harden from a temperature of 1000-1050oC followed by water
quenching.
.
Package | Standard export seaworthy package,suit for all kinds of transport,
or as required. |
Water-proof Paper + Edge protection + Wooden Pallets | |
Bulk Size | Any size |
Loading Port | Tianjin, Xingang Port, Qingdao,Shanghai, Ningbo, or any China
Seaport |
Container | 1*20ft container load Max. 25 Ton, Max. length 5.8m |
1*40ft container load Max. 25 Ton, Max. Length 11.8m | |
Delivery Time | 7-15 days or according to the order's quantity |
Q. Are you a factory or trading company?
A. We are a factory company.
Q3. How do you control quality?
A3: Mill Test Certification is supplied with shipment, Third Party
Inspection is available.
Q. How many countries have you already exported?
A: Exported to more than 50 countries mainly from America, Russia,
UK, Kuwait, Egypt,Turkey, Jordan, India, etc.
Q. How do you resolve the problem with your products?
A. Person of aging services: For customer complaints commissioner set
up special complaint handling, complaint issues recordedthe first
time, and find the relevant person in charge of the feedback and
resolution. Details check our "Quality corrective action report"
Q. What is the MOQ?
A. Sample order is acceptable, And some samples can be free.
Q. How long do you need the delivery time?
1)Supply within 5-10days (product in our stock list)
2)Custom products need to be calculated according to the quantity
Q.How can we get your price?
A. We need the below information to quote for you:
1. Product Name
2. Standard
3. Material Grade (Chemical Composition)
4. Dimension
5. Quantity
6. The Drawing for Special Parts
|
