Home > Mining Machinery >

High Frequency 4 Deck Vibrating Screen Machine 60 TPH Industrial

Categories Vibrating Screen Machine
Brand Name: RUNWELL
Model Number: 2YK1860
Certification: CE,ISO certificates
Place of Origin: Shanghai, China
MOQ: 1 set
Price: USD 20000-40000
Payment Terms: T/T, Western Union, L/C, MoneyGram
Supply Ability: 50 sets per month
Delivery Time: 10-20 working days
Packaging Details: Container, Nude Packs, in Bulk; Export Packing Standard
Application: Ore,Mining, and quarry
Warranty: 1 year from production
Voltage: 380V,440V/50HZ/60hz
Condition: New
Max. feed sizes: 100mm
Dimension(l*w*h): different models
Capacity: 60-300 TPH
Layer: 2 decks
Power(Kw): 22Kw
Max. Feed sizes: 200mm
After-sales service provided: Engineers available to service machinery overseas,Video technical support
Product name: China rotary sand vibrator screen in high quality manufacture
Color: Iron Grey,customized,black,as per customer's demand
Material: carbon steel, Mn steel net
Name: Round flour sieving machine ultrasonic vibrating screen
Usage: screening,Ore Sand,separation
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

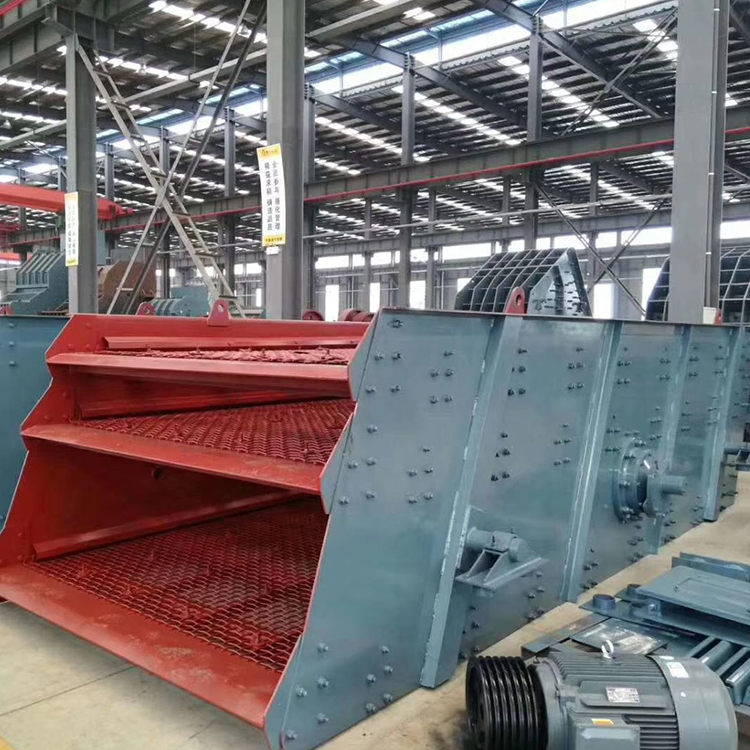

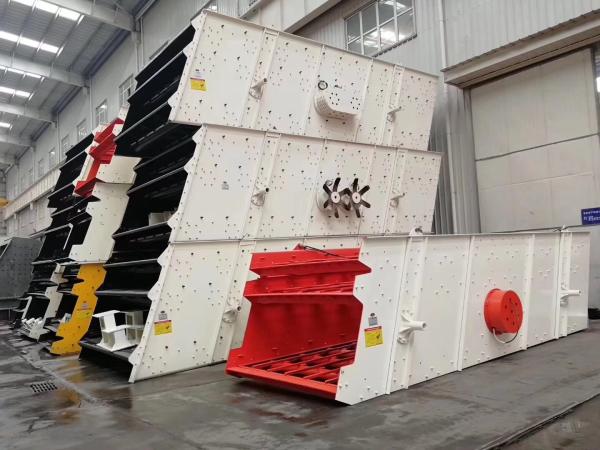

High Frequency 4 Deck Vibrating Screen Machine 60 TPH Industrial

High Frequency Industrial Sand Washing Machine 4 Deck Vibrating Screen,Vibrating screen separator

High Frequency Vibrating Screen Machine For Sand Gravel,Vibrating Screene Machine,Vibrating Screen for Gravel

Product Description

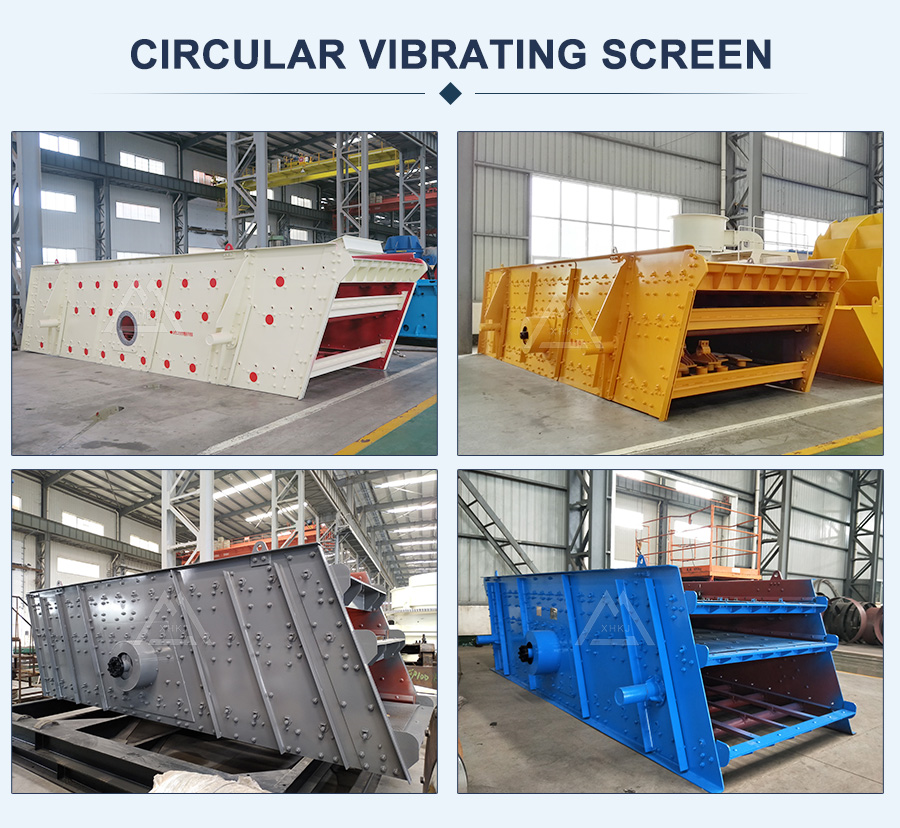

The moving road of this screen is similar as a circle, so it is called Circular Vibrating Screen. Circular Vibrating Screen is of multilayer and high efficiency. The eccentric shaft vibration exciter and eccentric block helps to adjust amplitude. This kind of screen is of long screening stream line and more sieving specifications. So it is widely used for grading in the industries of quarry, building material, transportation, energy, chemical industry, etc.

Working Principle

Circular vibrating screen uses common motor that makes the screen do circular movement along the direction of exciting force to sieve the materials.Circular vibrating screen is widely used used for classification in the quarry, building materials, transportation, energy, chemical industry and so on.

Features

1. It uses eccentric block to produce strong exciting force.
2. The crossbeam and the main body of the screen are connected with high-strength screw bolts, so it has the features of simple structure and easy/convenient maintenance.
3. It adopts tire clutch with flexible connection and stable running.
4. It adopts the structure of small amplitude, high frequency and large obliquity to make the screen have the advantages of high efficiency, large capacity, long durability, low consumption and noise.


Specification

SPECIFICATIONS


ModelScreen Size(mm)LayersScreen Mesh (mm)Max Feed Size(mm)Capacity (t/h)Power (Kw)Vibrating Frequency(r/min)Double Swing (mm)
2YK12373700*120023-8010010-8011750-9505-9
3YK12373700*120033-8010010-8011750-9505-9
2YK15484800*150023-8010030-20015750-9505-9
3YK15484800*150033-8010030-20015750-9505-9
2YK18484800*180023-8010050-25018.5750-9505-9
3YK18484800*180033-8010050-25018.5750-9505-9
2YK18606000*180023-8010060-30022750-9505-9
3YK18606000*180033-8010060-30022750-9505-9
4YK18606000-180043-8010060-30030750-9505-9
2YK21606000*210023-8010080-40022700-9005-9
3YK21606000*210033-8010080-40030700-9005-9
4YK21606000*210043-8010080-40030700-9005-9
2YK24606000*240025-80100100-50030700-9005-9
3YK24606000*240035-80100100-50037700-9005-9
4YK24606000*240045-80100100-50037700-9005-9
High Frequency Vibrating Screen Machine For Sand Gravel



Questions & Answers
1. How long is the delivery time of your product?
The delivery time is within 20 working days.

2. What is the payment term?
The payment term is T/T.

3.How long is the product warranty period?
Our warranty period is 1 year, excluding wearing parts.

4.What's the after sale service of your company?
We will provide foundation drawing to the clients for installation. Besides, we can provide guidance service for installation and operation of workers, etc.

5. Can your company provide wearing parts?
We can deliver you the spare parts within 10 working days after your order. If your equipment are not manufactured by our company, please provide us the wearing parts drawing or number.
Cheap High Frequency 4 Deck Vibrating Screen Machine 60 TPH Industrial for sale
