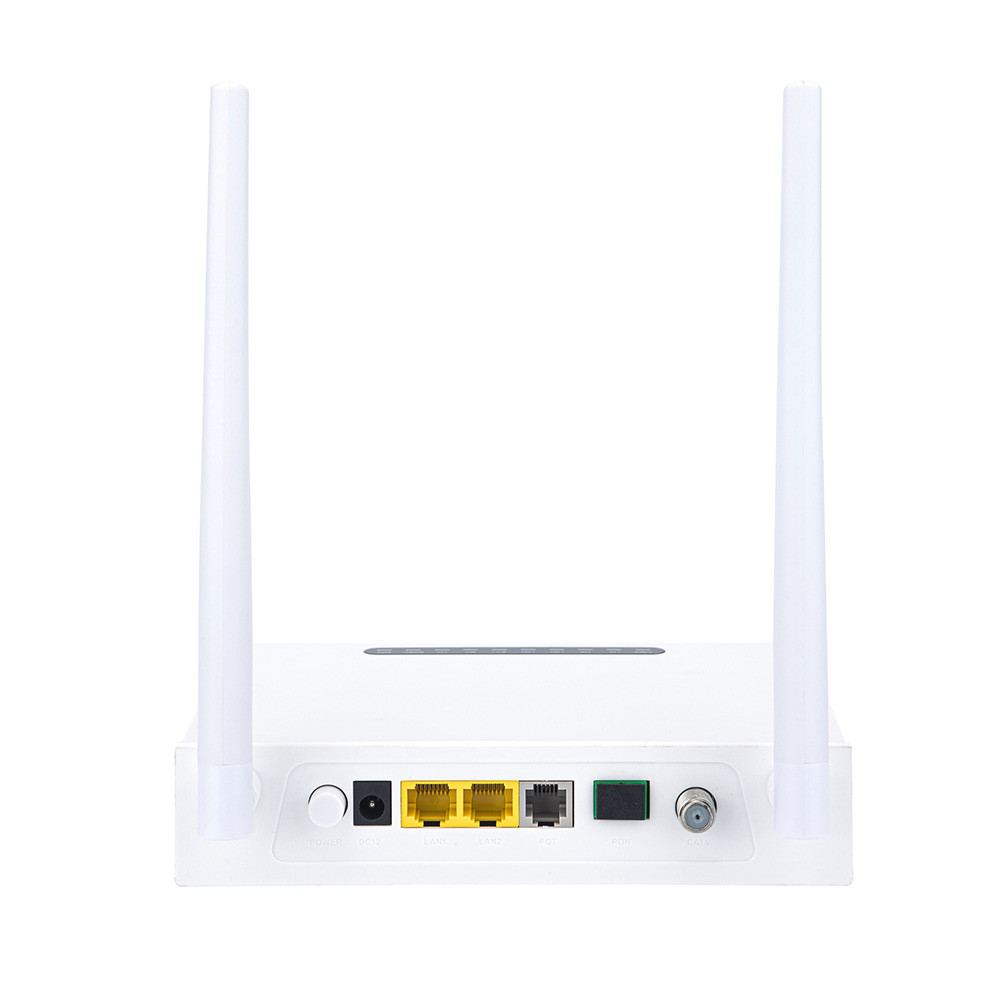

1GE 1FE XPON ONU WIFI CATV POTs Plastic Casing ONU FTTH FTTO Solution

XPON 1G1F+WIFI+CATV+POTs

Overview

Designed as HGU (Home Gateway Unit) in deferent FTTH solutions; the carrier-class FTTH application provides data service access.
Based on mature and stable, cost-effective XPON technology, can switch automatically with EPON and GPON mode when it access to the EPON OLT or GPON OLT.
Adopts high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of the module of China Telecom EPON CTC3.0.
Compliant with IEEE802.11n STD, adopts with 2x2 MIMO, the highest rate up to 300Mbps.
Compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah.
Designed by Realtek chipset 9602C.

Feature

Specification

Technical Item	Details
PON interface	1 G/EPON port(EPON PX20+ and GPON Class B+) Upstream: 1310nm; Downstream: 1490nm SC/APC connector Receiving sensitivity: ≤-27dBm Transmitting optical power: 0~+4dBm Transmission distance: 20KM
LAN interface	1x10/100/1000Mbps and 1x10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector
WIFI Interface	Compliant with IEEE802.11b/g/n Operating frequency: 2.400-2.4835GHz support MIMO, rate up to 300Mbps 2T2R,2 external antenna 5dBi Support: Multiple SSID Channel:13 Modulation type: DSSS,CCK and OFDM Encoding scheme: BPSK,QPSK,16QAM and 64QAM
CATV Interface	RF, optical power : +2~-18dBm Optical reflection loss: ≥45dB Optical receiving wavelength: 1550±10nm RF frequency range: 47~1000MHz, RF output impedance: 75Ω RF output level: ≥ 82dBuV(-7dBm optical input) AGC range: +2~-7dBm/-4~-13dBm/-5~-14dBm MER: ≥32dB(-14dBm optical input), ＞35(-10dBm)
POTS Port	RJ11 Max 1km distance Balanced Ring, 50V RMS
LED	10 LED, For Status of WIFI,WPS,PWR,LOS,PON,LAN1~LAN2, WORN,NORMAL(CATV), FXS
Push-Button	4, for Function of Power on/off, Reset, WPS, WIFI
Operating condition	Temperature : 0℃～+50℃ Humidity :10%～90%(non-condensing)
Storing Condition	Temperature : -40℃～+60℃ Humidity :10%～90%(non-condensing)
Power supply	DC 12V/1A
Power Consumption	<6W
Net Weight	<0.4kg

Application

Typical Solution:FTTO(Office), FTTB(Building),FTTH(Home)
Typical Service:Broadband Internet access, IPTV, VOD, video surveillance, CATV, VoIP etc.
