Brand Name: | Sylaith |
Model Number: | 3003 3004 3105 5050 5083 5251 |
Certification: | ISO 9001 |
Place of Origin: | China |
MOQ: | 1 Ton |
Price: | Negotiable |
Payment Terms: | L/C, T/T |
Supply Ability: | 50000 Ton Per Year |
Delivery Time: | 7-14 days |
Packaging Details: | Standard seaworthy package |
Surface Treatment: | Coated |
Shape: | Square |
Processing Service: | Bending, Decoiling, Welding, Punching, Cutting |
Port Of Loading: | Shanghai port |
Application: | Construction , Decoration |
Width: | 10mm ~ 2600mm |
Company Info. |
Wuxi Sylaith Special Steel Co., Ltd. |
Verified Supplier |
View Contact Details |
Product List |

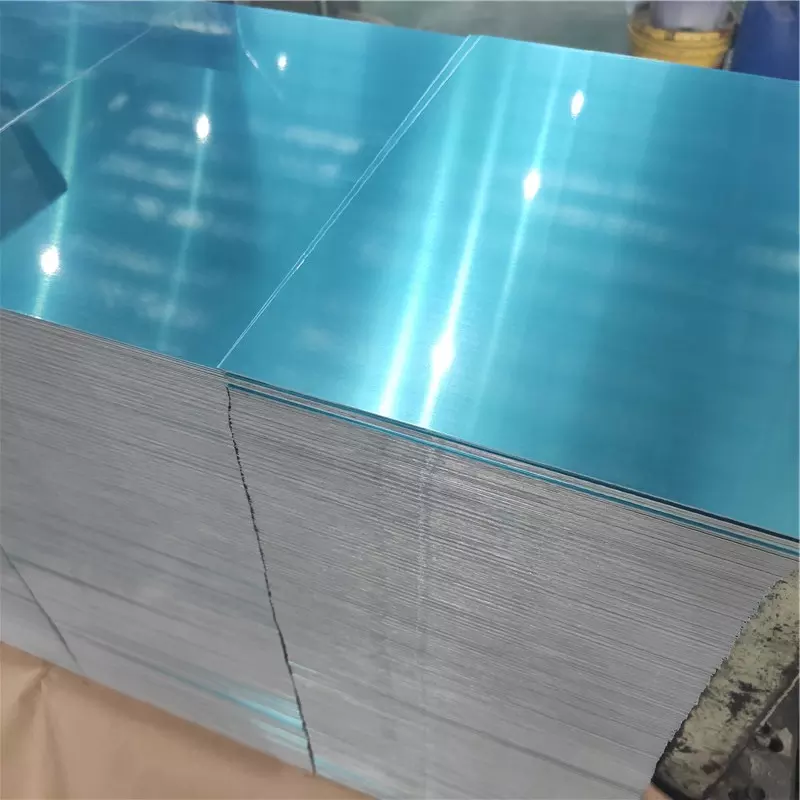

Copper 0.25 Aluminum Diamond Plate 4x8 Sheet 1mm 3mm 5mm 10mm 5050 3003
Product Description:
3000 serie Features: aluminum alloy with manganese as the main
alloying element, can not be strengthened by heat treatment, good
corrosion resistance, good welding performance. Good plasticity.
5000 series Mainly magnesium. Good endurance, good welding
performance, good fatigue strength, can not be strengthened by heat
treatment, can only improve the strength of cold processing.
Copper 0.25 Aluminum Diamond Plate 4x8 Sheet 1mm 3mm 5mm 10mm 5050 3003 | |
Alloy | 3003 3004 3105 5050 5083 5251 |
Temper | H112,H24,O,H32,H111,etc |
Specification | Thickness≤170mm;Length≤12000mm |
Application | Marine Grade Plate, Ring-Pull Can End Stock, Ring-Pull Stock, Automobile Body Sheets, Automobile Inside Board, The Protective Cover On Engine. |
Feature | All the advantages of normal aluminium alloy, high tensile strength & yield strength,good corrosion resistant performance, well welding property, well fatigue strength,and suitable for anodic oxidation. |
Chemical Composition:
Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Other | Al | |
Single | Total | ||||||||||
3003 | 0.6 | 0.7 | 0.05~0.20 | 1.0~1.5 | — | — | 0.1 | — | 0.05 | 0.15 | Rem |
3004 | 0.3 | 0.7 | 0.25 | 1.0~1.5 | 0.8~1.3 | — | 0.25 | — | 0.05 | 0.15 | Rem |
3105 | 0.6 | 0.7 | 0.3 | 0.30~0.8 | 0.20~0.8 | 0.2 | 0.4 | 0.1 | 0.05 | 0.15 | Rem |
5050 | 0.4 | 0.7 | 0.2 | 0.1 | 1.1~1.8 | 0.1 | 0.25 | — | 0.05 | 0.15 | Rem |
5251 | 0.4 | 0.5 | 0.15 | 0.10~0.50 | 1.7~2.4 | 0.15 | 0.15 | 0.15 | 0.05 | 0.15 | Rem |
5083 | 0.4 | 0.4 | 0.1 | 0.40~1.0 | 4.0~4.9 | 0.05~0.25 | 0.25 | 0.15 | 0.05 | 0.15 | Rem |
Product Details:
Certification:
Packaging & Shipping:
FAQ:
Q1: ARE YOU FACTORY OR TRADER?
A1: Sylaith Special Steel is a cold rolling manufacturer of
magnetic stainless steel coil since 2009. We've gained our Export
Right and become an integrated company of industry and trade in
order to satisfy buyer's multi-request on different material and
products.
Q2: HOW TO GET A SAMPLE?
A2: FREE samples are available for your checking and testing. And
to get free samples, you need to send us you detailed receiving
address (including post code) and your DHL/FedEx/UPS account for
collecting samples, courier cost will be paid in your side.
Q3: HOW TO VISIT YOUR FACTORY?
A3: Most of the main cities have flights to Shanghai; you can take
flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every
day 5 flight around noon time).
![]() |
