API 13Cr Stainless Steel Coiled Tubing 5LCP For Oil Drilling

13Cr Special Material Coiled Tubing API Spec. 5LCP, API Spec. 5ST

Coiled Tubing Product description:

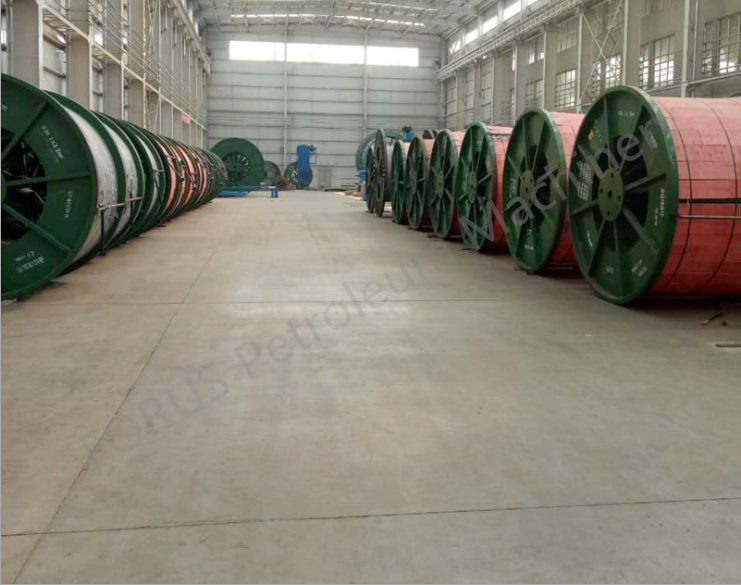

Coiled tubing products are made by one-time continuous welding of special long tube blanks in the manufacturing plant. The manufactured pipe string is wound on a reel and delivered to the user for use. The pipe string should be repeatedly bent and deformed during use, and must be renewed after use. The curl is wound on a reel. Coiled tubing can be used for dozens of downhole operations such as logging, workover, drilling, and completion; coiled tubing can be used in oil production, submarine pipelines, transportation pipes and other fields. At present, we can produce high-quality coiled tubing products that meet the needs of users according to API Spec 5LCP and API Spec 5ST standards.

Coiled Tubing Features:
Coiled tubing products have high strength, high plasticity and good low cycle fatigue properties, and can be used repeatedly for more than 20 times. It is used in oilfield underground operation with high efficiency, low cost, safety, environmental protection, time saving and labor saving.
Coiled tubing specifications:
Tube outer diameter): φ25.4mm-φ88.9 mm (1inch-3.5inch)
Tube length: up to 8000m
Executive standard: API Spec. 5LCP, API Spec. 5ST
Product material: API Spec. 5LCP X52C ~ X90C, API Spec. 5ST CT70-CT110
Yield strength: Coiled tubing 483MPa-758MPa (70ksi-110ksi), coiled line pipe 359MPa-621MPa (52ksi-90ksi).

13Cr Coiled Tubing Product Size

Specification			Wall Thickness		Mass Per Unit Length	Calculation Internal Diameter	Cross Sectional Area	Yield Strength	Tensile Strength	The Tube Body Load		Minimum Test Pressure
			Specified	Minimum	Mass Per Unit Length	Calculation Internal Diameter	Cross Sectional Area	Yield Strength	Tensile Strength	Min Yield Sress	Min Tensile Stress	Minimum Test Pressure
			t	tmin	wpe	d
OD		Wall Thickness	In	In	lb/ft	In	SQIN	psi	psi	LBS	LBS	psi
1 1/4	1.25	0.08	0.08	0.075	0.99	1.09	0.2941	80,000	88,000	23,500	25,900	7,700
	1.25	0.087	0.087	0.082	1.07	1.076	0.3179	80,000	88,000	25,400	28,000	8,400
	1.25	0.095	0.095	0.09	1.16	1.06	0.3447	80,000	88,000	27,600	30,300	9,200
	1.25	0.102	0.102	0.097	1.23	1.046	0.3679	80,000	88,000	29,400	32,400	9,900
	1.25	0.109	0.109	0.104	1.31	1.032	0.3907	80,000	88,000	31,300	34,400	10,600
	1.25	0.118	0.118	0.11	1.41	1.014	0.4196	80,000	88,000	33,600	36,900	11,300
	1.25	0.125	0.125	0.117	1.48	1	0.4418	80,000	88,000	35,300	38,900	12,000
	1.25	0.134	0.134	0.126	1.57	0.982	0.4698	80,000	88,000	37,600	41,300	12,900
	1.25	0.145	0.145	0.137	1.69	0.96	0.5034	80,000	88,000	40,300	44,300	14,000
	1.25	0.156	0.156	0.148	1.8	0.938	0.5362	80,000	88,000	42,900	47,200	15,000
1 1/2	1.5	0.087	0.087	0.082	1.29	1.326	0.3862	80,000	88,000	30,900	34,000	7,000
	1.5	0.095	0.095	0.09	1.41	1.31	0.4193	80,000	88,000	33,500	36,900	7,700
	1.5	0.102	0.102	0.097	1.5	1.296	0.448	80,000	88,000	35,800	39,400	8,300
	1.5	0.109	0.109	0.104	1.6	1.282	0.4763	80,000	88,000	38,100	41,900	8,900
	1.5	0.118	0.118	0.11	1.72	1.264	0.5123	80,000	88,000	41,000	45,100	9,400
	1.5	0.125	0.125	0.117	1.81	1.25	0.54	80,000	88,000	43,200	47,500	10,000
	1.5	0.134	0.134	0.126	1.92	1.232	0.5751	80,000	88,000	46,000	50,600	10,800
	1.5	0.145	0.145	0.137	2.07	1.21	0.6172	80,000	88,000	49,400	54,300	11,700
	1.5	0.156	0.156	0.148	2.2	1.188	0.6587	80,000	88,000	52,700	58,000	12,600
	1.5	0.175	0.175	0.167	2.44	1.15	0.7285	80,000	88,000	58,300	64,100	14,300
	1.5	0.188	0.188	0.18	2.59	1.124	0.7749	80,000	88,000	62,000	68,200	15,000
1 3/4	1.75	0.095	0.095	0.09	1.65	1.56	0.4939	80,000	88,000	39,500	43,500	6,600
	1.75	0.102	0.102	0.097	1.77	1.546	0.5281	80,000	88,000	42,200	46,500	7,100
	1.75	0.109	0.109	0.104	1.88	1.532	0.5619	80,000	88,000	45,000	49,400	7,600
	1.75	0.118	0.118	0.11	2.02	1.514	0.605	80,000	88,000	48,400	53,200	8,000
	1.75	0.125	0.125	0.117	2.14	1.5	0.6381	80,000	88,000	51,000	56,200	8,600
	1.75	0.134	0.134	0.126	2.28	1.482	0.6803	80,000	88,000	54,400	59,900	9,200
	1.75	0.145	0.145	0.137	2.45	1.46	0.7311	80,000	88,000	58,500	64,300	10,000
	1.75	0.156	0.156	0.148	2.61	1.438	0.7812	80,000	88,000	62,500	68,700	10,800
	1.75	0.175	0.175	0.167	2.9	1.4	0.8659	80,000	88,000	69,300	76,200	12,200
	1.75	0.188	0.188	0.18	3.09	1.374	0.9225	80,000	88,000	73,800	81,200	13,200
	1.75	0.204	0.204	0.196	3.31	1.342	0.9908	80,000	88,000	79,300	87,200	14,300
2	2	0.109	0.109	0.104	2.17	1.782	0.6475	80,000	88,000	51,800	57,000	6,700
	2	0.118	0.118	0.11	2.33	1.764	0.6977	80,000	88,000	55,800	61,400	7,000
	2	0.125	0.125	0.117	2.46	1.75	0.7363	80,000	88,000	58,900	64,800	7,500
	2	0.134	0.134	0.126	2.63	1.732	0.7855	80,000	88,000	62,800	69,100	8,100
	2	0.145	0.145	0.137	2.83	1.71	0.845	80,000	88,000	67,600	74,400	8,800
	2	0.156	0.156	0.148	3.02	1.688	0.9037	80,000	88,000	72,300	79,500	9,500
	2	0.175	0.175	0.167	3.35	1.65	1.0033	80,000	88,000	80,300	88,300	10,700
	2	0.188	0.188	0.176	3.58	1.624	1.0702	80,000	88,000	85,600	94,200	11,300
	2	0.204	0.204	0.192	3.85	1.592	1.151	80,000	88,000	92,100	101,300	12,300
2 3/8	2.375	0.125	0.125	0.117	2.96	2.125	0.8836	80,000	88,000	70,700	77,800	6,300
	2.375	0.134	0.134	0.126	3.15	2.107	0.9434	80,000	88,000	75,500	83,000	6,800
	2.375	0.145	0.145	0.137	3.4	2.085	1.0158	80,000	88,000	81,300	89,400	7,400
	2.375	0.156	0.156	0.148	3.64	2.063	1.0875	80,000	88,000	87,000	95,700	8,000
	2.375	0.175	0.175	0.167	4.04	2.025	1.2095	80,000	88,000	96,800	106,400	9,000
	2.375	0.188	0.188	0.176	4.32	1.999	1.2917	80,000	88,000	103,300	113,700	9,500
	2.375	0.204	0.204	0.192	4.65	1.967	1.3914	80,000	88,000	111,300	122,400	10,300
	0.945	0.08	0.08	0.075	0.73	0.785	0.2173	80,000	88,000	17,400	19,100	10,200

Product application areas and main advantages:

The current coiled tubing operation technology has been applied to the fields of drilling, workover, oil testing, oil production, stimulation, and completion along with the development of coiled tubing machine and related equipment. Its main operation features are:
1. Non-production operation of oil wells: pressure control equipment can make coiled tubing safely used under pressure conditions.
2. High-pressure pipeline: The coiled tubing string provides a high-pressure channel for fluid circulation, entering and exiting the wellbore. Additionally, hydraulic tools can be operated through coiled tubing strings or downhole power can be provided through fluid pumps.
3. Uninterrupted circulation: When the coiled tubing string is run downhole or extracted from the well, the fluid can still be pumped into the downhole uninterruptedly.
4. Rigidity and strength: The rigidity and strength of the coiled tubing string enable tools and equipment, as well as the coiled tubing string itself, to be pushed into and pulled out of highly deviated wells and horizontal wells.
5. Install wires and pipes: Electrical wires or hydraulic lines can be installed in the coiled tubing string and terminated at the coiled tubing reel, and the operation control and power functions can be installed between the downhole tool assembly and the surface equipment.

Product Tags:


*From:	Your email address is incorrect!
*To:	Shaanxi FORUS Petroleum Machinery Equipment Co., Ltd
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Coiled Tubing
Brand Name:	FORUS
Model Number:	13Cr Coiled Tubing
Certification:	API
Place of Origin:	China
MOQ:	3000M
Payment Terms:	L/C, T/T, Western Union
Delivery Time:	40 days
Packaging Details:	Drum
Product Name:	Coiled Tubing
Material:	13Cr
OD:	1 1/4" To 2 3/8"
Industry:	Oil Drilling
Wall Thickness:	0.08-0.204
Length:	Customized
