| Categories | PP Pipe Extrusion Line |
|---|---|
| Brand Name: | XPM |
| Model Number: | 20-63MM |
| Certification: | CE,ISO |
| Place of Origin: | ZHANGJIAGANG,CHINA |
| MOQ: | 1 SET |
| Price: | 20,000-25,000 USD/SET |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20 SETS PER MONTH |
| Delivery Time: | 45 WORKING DAYS |
| Packaging Details: | WOODEN CASE PACKING AND PLASTIC FILM |
| Contactor Brand: | Siemens |
| Raw Material: | PE,PP,HDPE |
| Color: | Customized |
| Screw: | Conical Twin Screw |
| Warranty: | 1 Year |
| Inverter: | ABB |
| Voltage: | 220V,380V Or Customized |
| Application: | Plastic Pipe |
| Output: | 150Kg/H |
| Motor Power: | 55Kw |
| Company Info. |
| ZHANGJIAGANG SAIJIA MACHINERY TECHNOLOGY CO.,LTD. |
| Verified Supplier |
| View Contact Details |
| Product List |
12-55MM 55Kw Single Screw PP Pipe Extrusion Machine Pe Pipe Making Machine
Main technical parameter:
| type | pipe range(mm) | Max. output(kg/h) | total power(kw) | L*W*H(m) |
| PE-250 | 110-250 | 350 | 230 | 44*2.5*3 |
| PE-400 | 160-400 | 600 | 400 | 45*3*3.5 |
| PE-630 | 315-630 | 800 | 490 | 56*3*3.5 |
| PE-800 | 500-800 | 1000 | 650 | 58*3.5*3.5 |
| PE-1000 | 630-1000 | 1200 | 760 | 62*3.5*3.5 |
| PE-1400 | 800-1400 | 1500 | 820 | 67*4*4 |
List of PE/HDPE water pipe extrusion machine line:
| NO. | Equipment |
| 1 | Automatic Feeder and Drier |
| 2 | SJ Single Screw Extruder |
| 3 | SJ25×25 Co-Extruder |
| 4 | Mould(including heater and calibrator) |

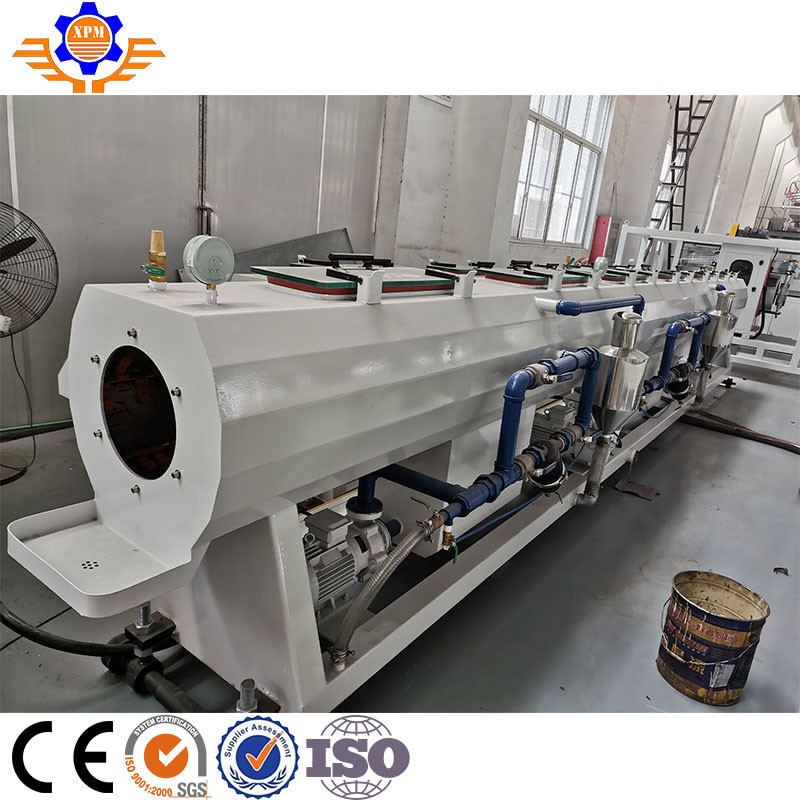

| 5 | Vacuum Tank |
| 6 | Water Cooling Tank |
| 7 | Haul-off unit |
| 8 | Automatic Cutting machine |
| 9 | Winding machine |
Application
1- This hose pipe making machines are mainly used for producing garden pipes, water supply pipe and
drainage in construction, cable etc.
2- PE possession of medium density polyethylene pipe and high
density polyethylene pipe. SDR11 divided
according to the thickness and SDR17.6 series. The former applies to transport gaseous artificial gas, natural
gas, liquefied petroleum gas, which is mainly used to transport natural gas.
|
