FIBC Jumbo Bag Cutting Machine Automatic Hot Cutting

Categories Jumbo Bag Cutting Machine
Brand Name: HLD
Place of Origin: Changzhou,China
MOQ: 1 set
Price: Negotiable
Payment Terms: T/T
Supply Ability: 30 sets per month
Delivery Time: 25 days after payment
Packaging Details: Nude package
Name: FIBC Hot Cutting Machine
Bag Width: 80-2200mm
Bag Length: 500-20000mm
Power Supply:: 380V , 50HZ
Product: Jumbo bag
Weight: 2200kg
Max Speed: 12-18M/MIN
Automatic: Full-Automatic
Application: Cut Fabric Roll
Machine size: 5500*2900*1500 mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

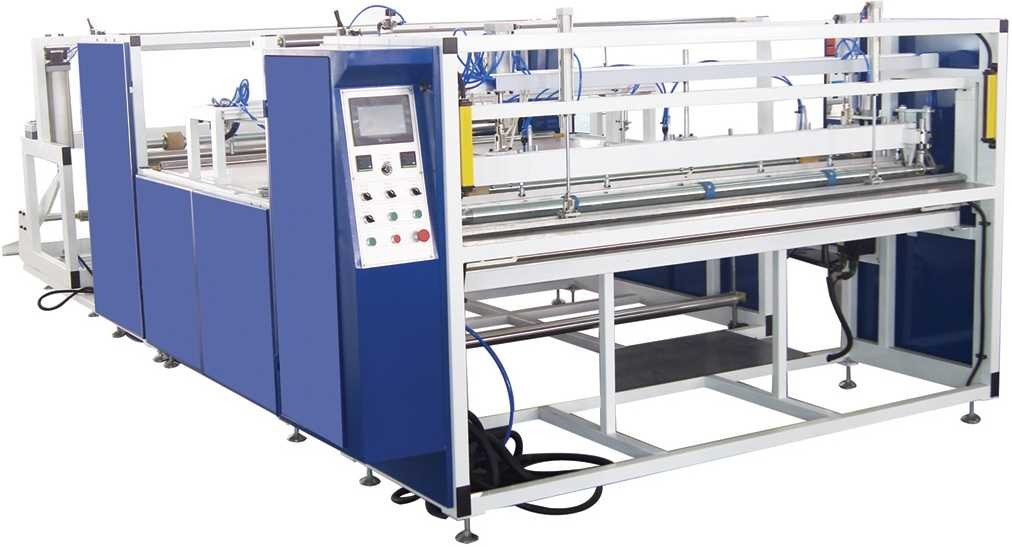

FIBC Jumbo Bag Cutting Machine Automatic Hot Cutting

FIBC Automatic Hot Cutting Machine Jumbo Bag Making Machine


Description


FIBC Big Bag Full-IAutomatic Cutting Making Machine is applied to the different jumbo bag fabric cutting like:Jumbo bag lay flat/double flat fabric,Jumbo bag single—layer fabric,Jumbo bag bottom cover,top cover,top mouth fabric.


Features


Function and feature
1. The specially designed machine integrates the various main functions in jumbo bag cutting—punching like:Auto jumbo—fabric roll
feeding,Edge process control(EPC),Length—counting,Punching unit for “O” hole,Punching unit for “+” hole,Circle describing,
Linear—knife cutting,Jumbo—fabric feeding.
2 PLC control system.Color man—machine interface,which make date—setting,display,recording more clear and accurate,easier
operation.
3. Hydraulic automatic jumbo—fabric roll feeding&EPC unit,stable,simple and easy in operation.
4. Equipped import servo control system for precise and fast cutting.


Specification

1Fabric width (mm)2200 (Max)
2Cutting length(mm)300-6000(Max)
3Cutting precision(mm)±2
4Production ability(Pcs/min)12-18(1000mm)
5Temperature control (°C)300(MAX)
6Total power(kw)11
7Power connection (v)

380V 50Hz

3- phase with zero- and earth-wire

8Compressed air supply

mains pressure approx. 7bar

working pressure approx. 6bar air humidity approx. 2.0 m7h

9Machine size(L*W*H)mm5500*2900*1500
