| Categories | Drone Jammer/UAV Jammer |
|---|---|
| Brand Name: | JYT |
| Model Number: | JYT-DP2503 |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | negotiate |
| Supply Ability: | 500pcs/month |
| Delivery Time: | 15 working days |
| Packaging Details: | netural package |
| Payment Terms: | T/T,Western Union |
| Material: | Pelican case |
| RF output: | 5.8G,GPS,WIFI |
| Total power output: | 200W |
| Jamming range: | up to 700 meters |
| application area: | meeting halls,infantry,military security force,SWAT team,bomb squad,anti-terrorism units,anti-drag units,anti-riot force,the EOD team,checkpoints, hostage negotiations,border control,etc.. |
High Power Draw Bar Box 8 Channels Mobile Signal Jammer 200W up to 700 meters is the latest professional signal jammer of high power.This type of frequncies is sepcially suitable for Drone Jammer.
Built-in high capacity battery and portable backpack design make this jammer applicable to meeting halls,infantry,military security force,SWAT team,bomb squad,anti-terrorism units,anti-drag units,anti-riot force,the EOD team,checkpoints,
hostage negotiations,border control,etc...
Parameter Shielding Range: Radius 100-200 meters(-75dBm,depending
on the distance of base station in an open filed)
Transmission Power: Integrated Equipment≥200W,each channel≥25W
Jammed Signal Types:
| 1100~1200MHz |
| 1520~1550MHz |
| 1200~1300MHz |
| 1550~1580MHz |
| 900~930MHz |
| 5.8G WIFI:5725-5850MHz, |
| 2.4G WIFI:2400~2450MHz |
| 2.4G WIFI:2450~2500MHz |
Other Signal Types:VHF,UHF,4G,3G,etc

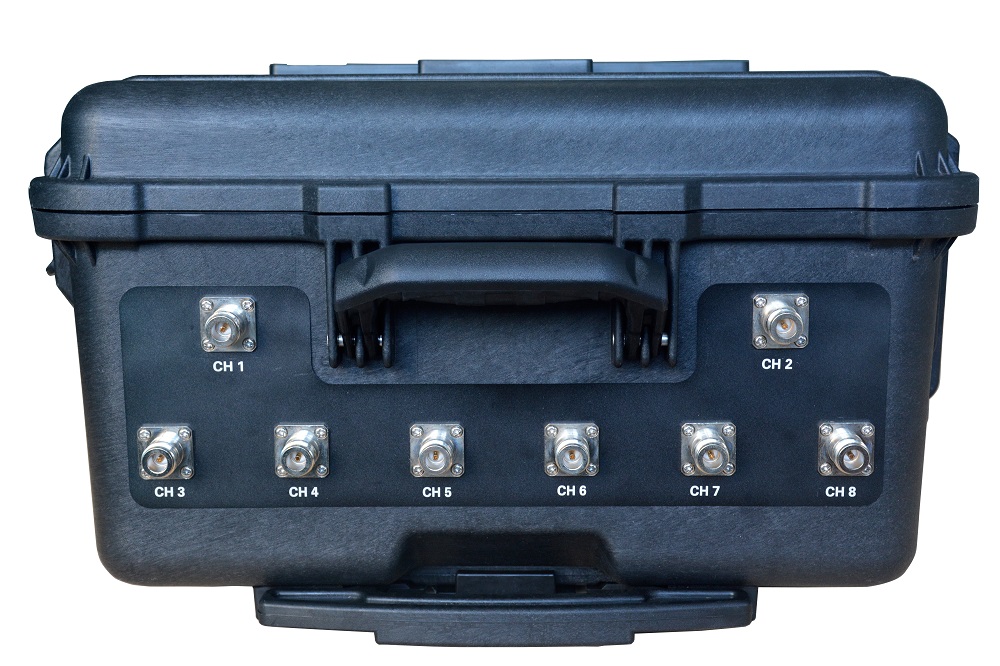

Output Channel: 8 output channels
Features *Large coverage, covering all 2G, 3G and 4G signals.
*Draw-bar box designed for portability and easy moving;
*Built-in rechargeable battery can be used for 90~120 minutes after
being fully charged;
*Military standard casing, which is anti-throw, pressure-resistant
and
durable;

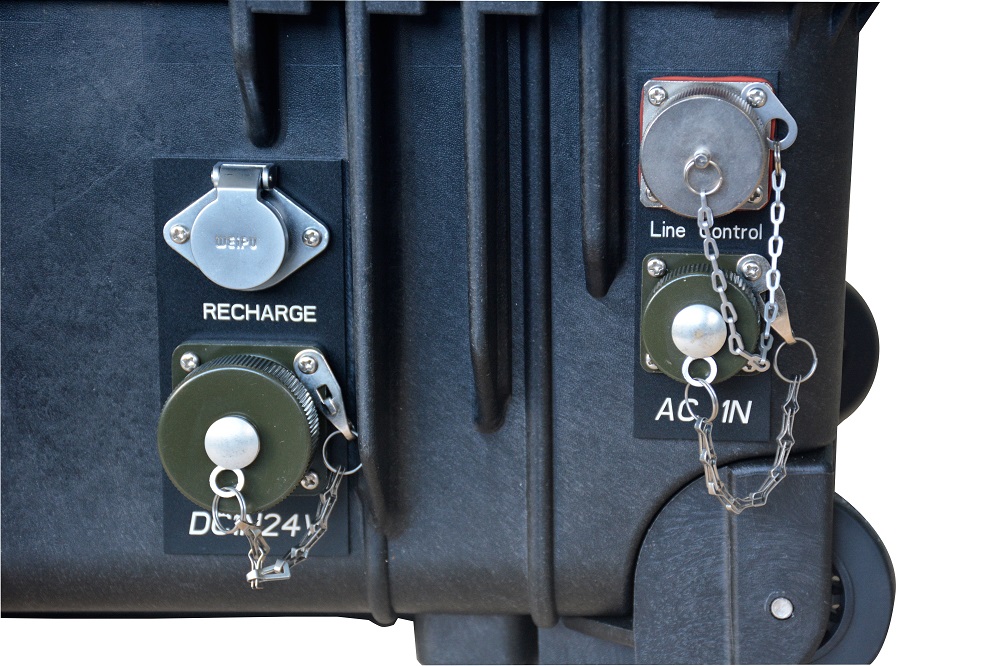

*AC110-220V/Built-in battery supply (DC24V)/Vehicle power supply
(DC24V);
*Built-in efficient cooling fan and cooling fin ensures the product
work
stably in a long service life;
Band Parameters
Main Parts
Component Dimensions
| Name | L | W | H | Remarks |
| Host | 556 | 455 | 266 | Protrusions excluded |
| Antenna | 375 Φ29 | |||
Other Parameters
| Total Weight | 60kg |
| Ambient Temperature | -10℃~+50℃ |
| Relative Humidity | ≤80% |
| Power Consumption | ≤360W |
| Power Input | AC100~240V,DC24V |
| Battery | 24V,33AH,Built-in standby battery can used for 90~120 minutes |
| Antenna Parameters | Omni antennas,gain:4~5dBi |
| Switch Control | Manually |
| Equipment Chassis | Metallic Paint |
Product Applications
Built-in high capacity battery and portable backpack design make this jammer applicable to meeting halls,infantry,military security force,SWAT team,bomb squad,anti-terrorism units,anti-drag units,anti-riot force,the EOD team,checkpoints,
hostage negotiations,border control,etc...

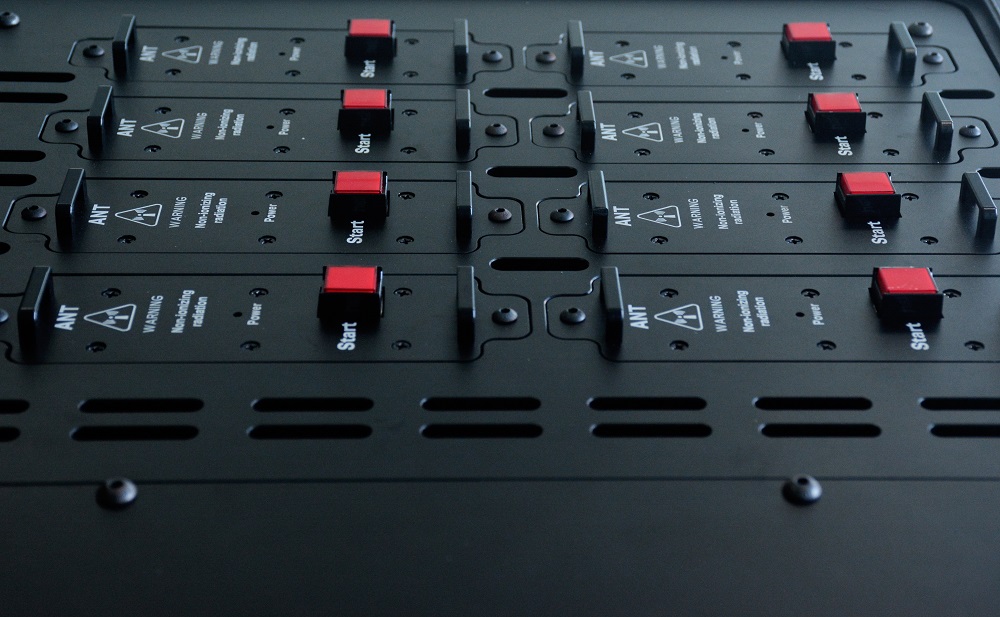

Product details
OEM & Customized Service
Optional Frequencies:WIFI,GPS,315,433,868,VHF,UHF
5.8G,etc...
Silk-print for Logo or neutral machine
|
