Automatic 50Hz Metal Roofing Roller 0.8mm Standing Seam Rolling Machine

Categories Roofing Forming Machine
Brand Name: DLY
Model Number: TR20
Certification: CE
Place of Origin: China
MOQ: 1 set
Price: Negotiable
Payment Terms: T/T
Supply Ability: 30sets/month
Delivery Time: 40 days
Packaging Details: naked or wooden
name: Roofing Forming Machine
Weight: around 7.5T
Dimension(l*w*h): 6700mm * 1600mm * 1500mm
Feeding width: 1250mm/1000mm
material thickness: 0.3mm-0.8mm
Product name: metal tile roll forming machine
Roller material: 45# steel,hard chromed
Shaft material: 45#Steel
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Automatic 50Hz Metal Roofing Roller 0.8mm Standing Seam Rolling Machine

TR20 Trapezoidal Metal Roofing Roll Forming Machine 380V With PLC Automatic

1. Description of Roofing Forming Machine

Glazed Steel Tile Making Machinery for Colored Glazed Steel Roofing Sheet is used to make the color glazed tiles in batch by the Steel Tile Making Machinery. the finished product of Glazed Steel Tile Making Machinery For Colored Glazed Steel Roofing Sheet is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance and grace taste. This machine working speed is around 4-5 meter per minutes.

2. Specifications of Roofing Forming Machine


Processing materialColor steel coil, Galvanized coil, Aluminized zinc coil or as your customized
Processing thickness (mm)0.3-1.0mm or as your customized
Material of rollersHigh grade 45# steel, Processed by CNC lathe, Hardening and tempering, polishing, hard chrome plated 0.05-0.07mm
Material of shafts45# steel
Diameter of shafts70mm or as your customized
Forming speed8-12 m/min or as your customized
Under frame350 H-beam
Sidewall16mm
Connect bar25mm, zinc plated
Forming steps10-18 or as your customized
Control systemDelta PLC and Inverter
Suitable power380V, 50 Hz, 3 phase or according to your need
Drive modeChain and sprocket, chain size 1 inch
Main motor3-5.5kw
Hydraulic pump station3-5.5kw
Cutting modelHydraulic profile cutting
Dimension of the machine7.5m-11m×1.5mm×1.2m
Weight of the machine3.5 ton -6 ton

3. Feathers of Roofing Forming Machine

  • We Will use the rubber roller at leveling part to protect the coil surface.
  • We will add two more gears for feeding coil smoothly.
  • For the roller, we will do the chroming for long time use and beautiful.
  • For cutting, we use 4 pillar post cutting system to make sure the cutter can use long time.
  • Use special special design of cutting system for cutting fast and the cutter can use long time.
  • Good quality hydraulic jacks.
  • Use strong thickness frame and holder.
  • We will give remoter for control machine easily.

4. Production Flow of Roofing Forming Machine


Manual decoiler→Feeding material into machine→Roll forming machine→Measure length→Hydraulic cutting→Finished Products

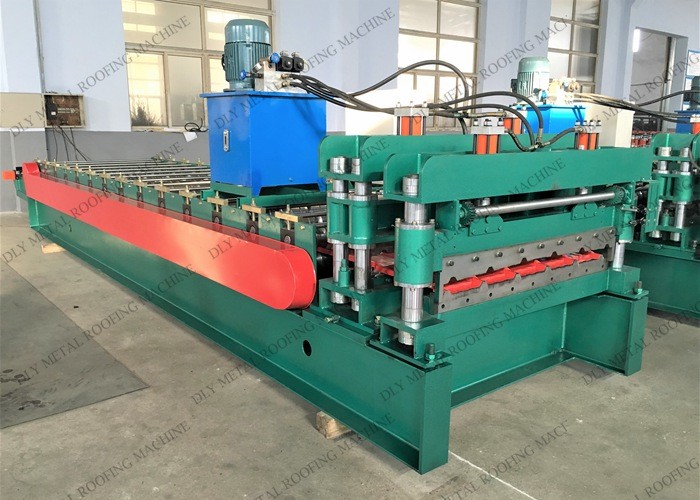

5. Details of Our Roofing Forming Machine

Cheap Automatic 50Hz Metal Roofing Roller 0.8mm Standing Seam Rolling Machine for sale
