| Categories | Spare Parts for Tower Crane |
|---|---|
| Brand Name: | HYCM-Tower CraneS |
| Model Number: | 1600*1600*3000mm |
| Certification: | CE, ISO, CU-TR |
| Place of Origin: | China |
| MOQ: | 1 set of tower crane mast section |
| Price: | Negotiation |
| Payment Terms: | T/T 30% as deposit balance before shipment by T/T |
| Supply Ability: | 100 sets of tower crane mast section/ month |
| Delivery Time: | about 7-10 days after receiving the deposit for one 40'HQ |
| Packaging Details: | naked, 14 sets of tower crane mast section/40'HQ. |
| Model: | Equipped With the Fixing Bolts & Ladders Split 1.6*1.6*3m Tower Crane Mast Section Save Sea Freight |
| Advantages: | Compact structure, good stability, high safety factor, quick assembly, save transportation space and freight, which have saved the problem of long-distance transport. |
| Type: | Chip type/split type |
| Condition: | 100% brand new |
| Material: | Angle steel 180*16mm or180*18mm |
| Usage: | Used for 6ton topless/topkit/luffing tower crane |
| Warranty: | 12 months warranty for main parts |
| Color: | Based on your requirements |
Equipped With the Fixing Bolts & Ladders Split 1.6*1.6*3m Tower Crane Mast Section Save Sea Freight
Specifications for Equipped With the Fixing Bolts & Ladders Split 1.6*1.6*3m Tower Crane Mast Section Save Sea Freight
| Material | Angle steel180*16mm or Angle steel 180*18mm |
| Mast section dimension | 1.6*1.6*3m |
| Color | as per your requirement |
| Application | Used for 12 ton QTD4522 Luffing Tower Crane |
| Type | split mast section |
Advantages for Equipped With the Fixing Bolts & Ladders Split 1.6*1.6*3m Tower Crane Mast Section Save Sea Freight
Compact structure, good stability, high safety factor, quick assembly, save transportation space and freight, which have saved the problem of long-distance transport.
Easily dismantled into panels for long-distance transport, a large number of mast sections can be transported in one container reducing transport costs.
Mast sections adopt split structure,convenient for transportation and storage,save the long distance freight,the main chord of mast section adopts Q345B materials,adaptability to environment.

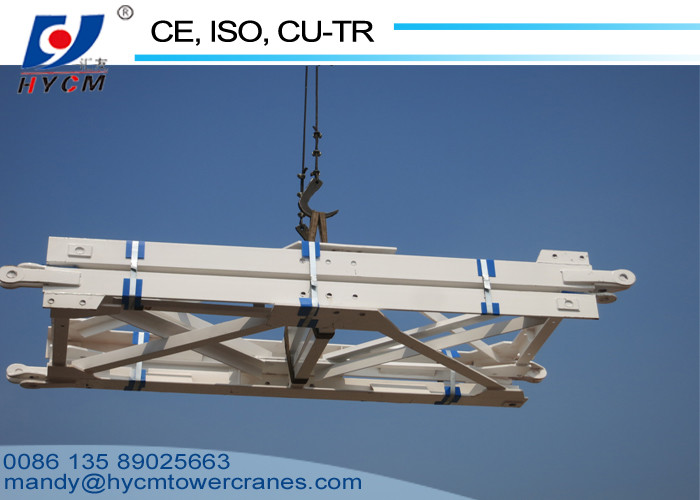

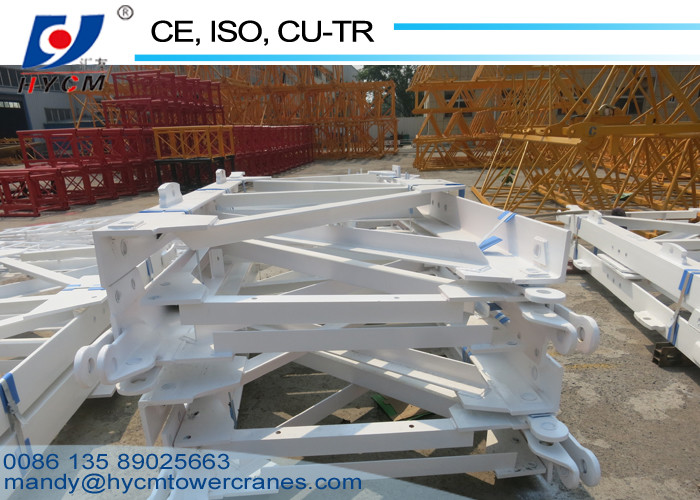

Photos for Equipped With the Fixing Bolts & Ladders Split 1.6*1.6*3m Tower Crane Mast Section Save Sea Freight
| 1 | 1.5×1.5×2.2 | Angle steel ∠140× 10, ∠140× 12, ∠160×12 |
| 2 | 1.6×1.6×2.2 | Angle steel ∠160×12 |
| 3 | 1.68×1.68×2.5 | Two angle steel∠125×12 or square tube 135×10 |
| 4 | 1.64×1.64×2.8 | Two angle steel∠125×10 or square tube 135×10 |
| 5 | 1.833×1.833×2.5 | Two angle steel∠125×10 |
| 6 | 1.833×1.833×2.5 | Square tube □135×12 or Two angle steel with rib∠125×12 |
| 7 | 1.835×1.835×2.5 | Two angle steel with rib∠125×14 |
| 8 | 1.6×1.6×3.0 | Angle steel ∠180×18 L46A L46B |
| 9 | 1.8×1.8×3.0 | Angle steel ∠180×14, ∠180×16 |
| 10 | 2.0×2.0×3.0 | Angle steel ∠200×20, ∠200×24, ∠200×26 L68A L68B L69 |
| 11 | 2.45×2.45×5.0 | Angle steel ∠180×18 (inside two angle steel with rib) |
| 12 | 2.5×2.5×6.0 | H steel 293×266 |
|
