Three Phase Multi-rate Multifunction Power Meter with LCD display AC380V/50Hz

Categories	Digital Meters
Place of Origin:	Zhejiang, China
Brand Name:	Customized
Model Number:	CN-3FHD3SY
Display Type:	Digital Only
Phase:	Three Phase
Measuring Energy Range:	0-9999
Accuracy Class:	0.5, 0.2
Output Voltage:	AC 220V
Operating Temperature:	-10℃~+55℃
Dimensions:	96*96
Color:	Black
OEM:	Yes
Power consumption:	<1VA
Communication:	RS485 Modbus
Display:	LCD Display
Frequency:	45~65Hz
Harmonic:	2-31 times
Baud Rate:	1200-38400(Factory default: 9600)
Multi-rate:	4 stes 8 period 4 kinds of multi rate
Warranty:	1 Year
Packaging Details:	1.Strong Strandard Export Package,Meet The Long-Distance Transportation
MOQ:	10 pieces
Price:	$78.88/pieces 10-99 pieces

Contact Now

Add to Cart

Company Info.

YUEQING RENHE ELECTRIC CO., LTD.

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

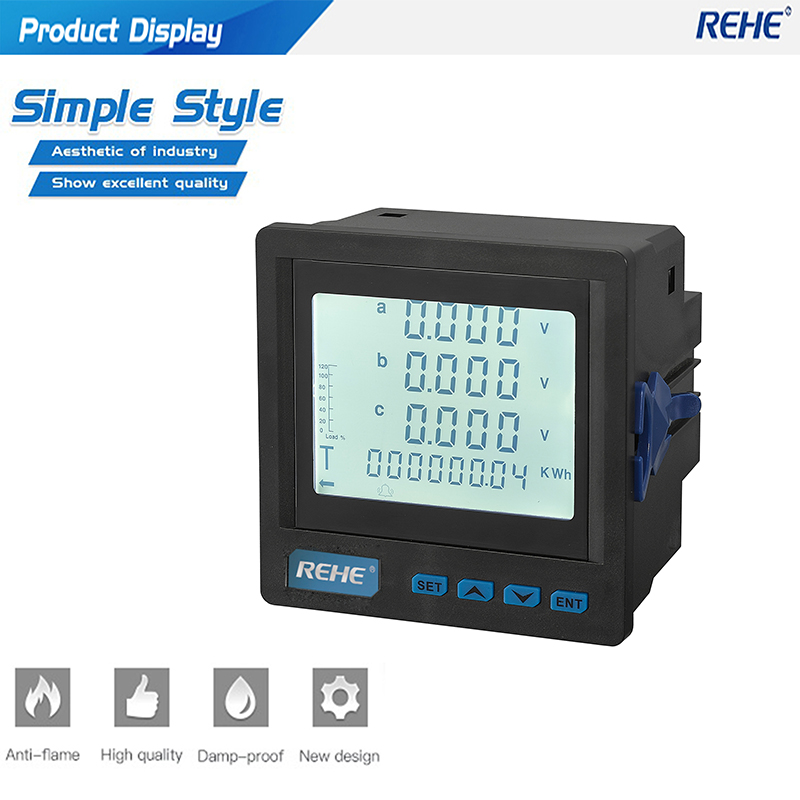

Three Phase Multi-rate Multifunction Power Meter with LCD display AC380V/50Hz

Foreword

Thanks for using our company products. We will provide reliable quality and dedicated service to allow you to rest assured to use our company products. Before installation, circuit connection, running and maintenance, please make sure to read carefully the user manual, to ensure the correct using, during using please also make sure know very well of relative safety and caution items.

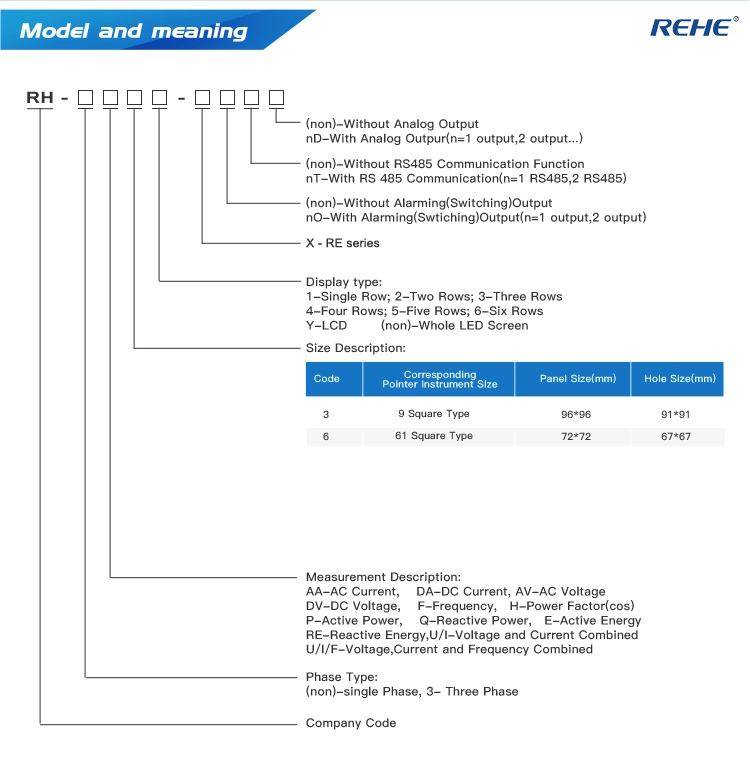

Model

Size

Measurement range (Voltage)

Measurement range (Current)

Analog output

RH-3FHD3SY

96*96

380V/100V

5A/1A

0/4~20mA or 0~5/10v Analog output

Can programme and set Transmitted item and relative value

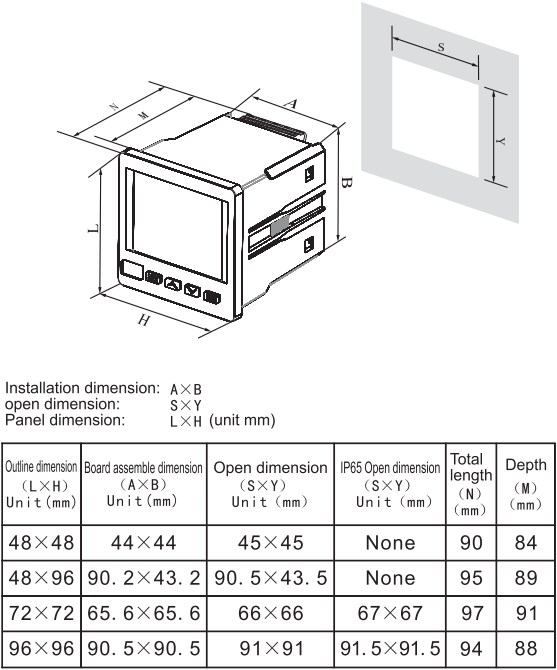

Dimension

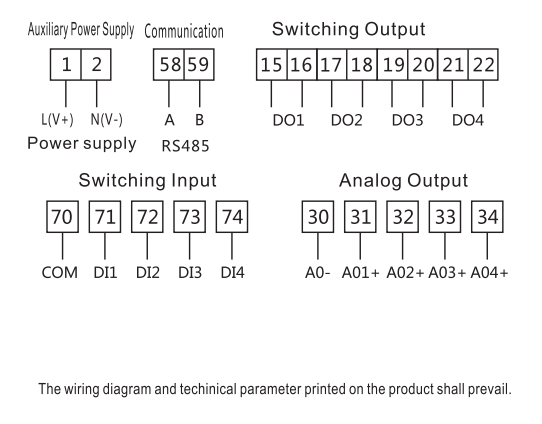

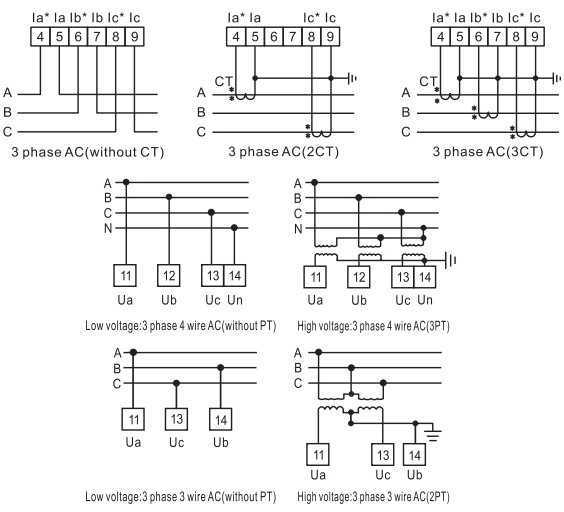

Wiring Diagram
