Online Automatic PCB Depaneling Machine 7 Axes 0.2mm-6.0mm Thickness

Online Automatic Depaneling Machine EXE-880AT

Online Automatic Depaneling Machine Parameters:

Introduction To Equipment Configuration:

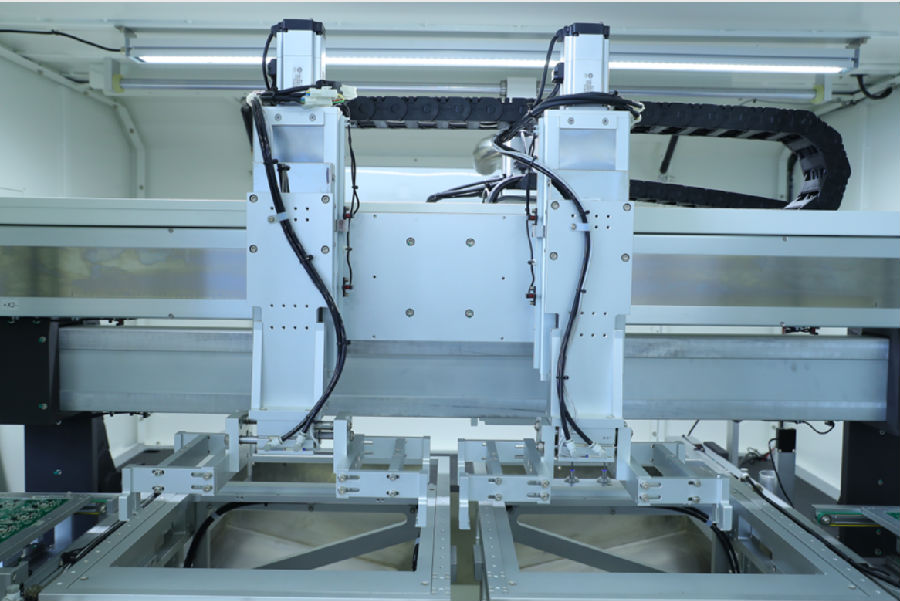

(1): Clip-on plate-taking structure

1. Place the product sub-board fixture on the processing platform sub-board. After the processing is completed, clamp the parting jig and place it on the track to flow into the next process.

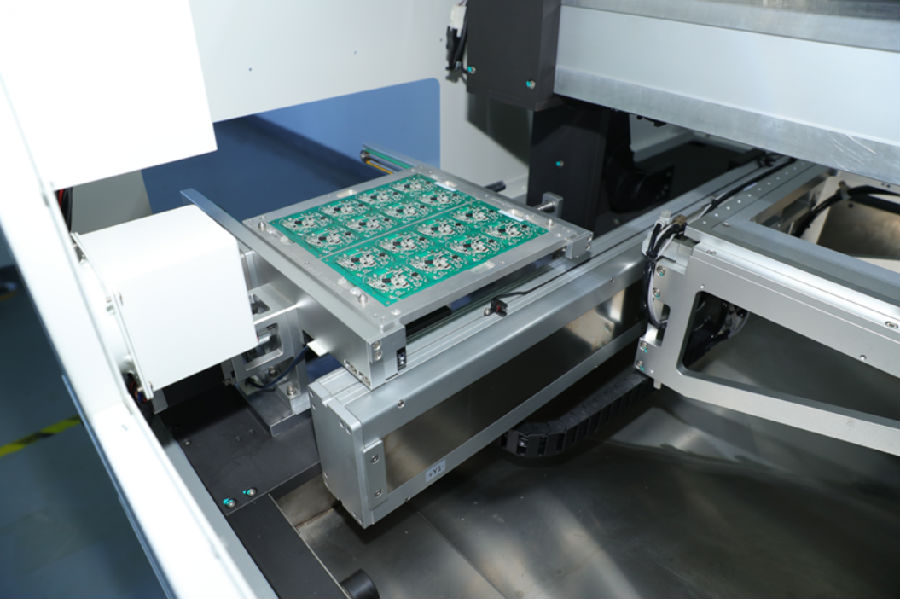

(2): The special product sub-board jig enters the track mode

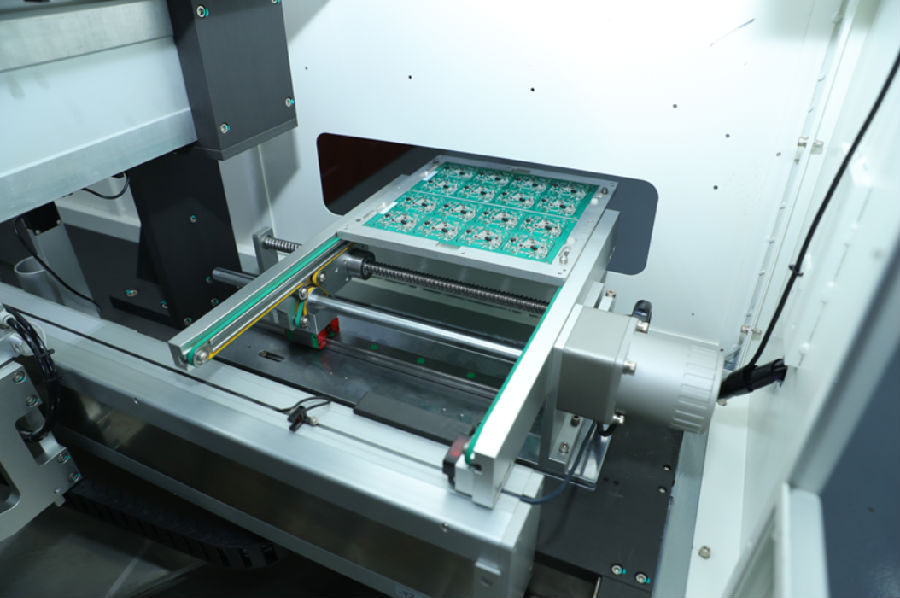

(3): Discharge of special product plate jig guide rail
1. After the product is cut, the reclaiming fixture clamps the entire product fixture puts it on the unloading track, and transports it to the next production process.

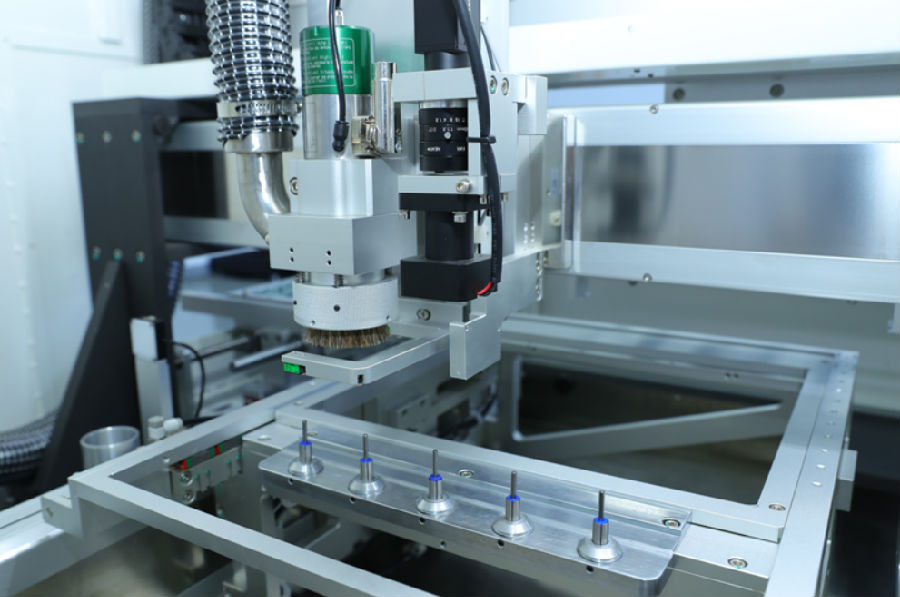

(4): Automatic tool change mode
1. Adopt automatic tool changing spindle imported from Germany. Save time, realize automation, reduce human factors, high precision and strong stability
2. Five sets of milling cutter magazines are built-in, which is convenient for automatic replacement of milling cutters and meets the needs of sub-board processing.

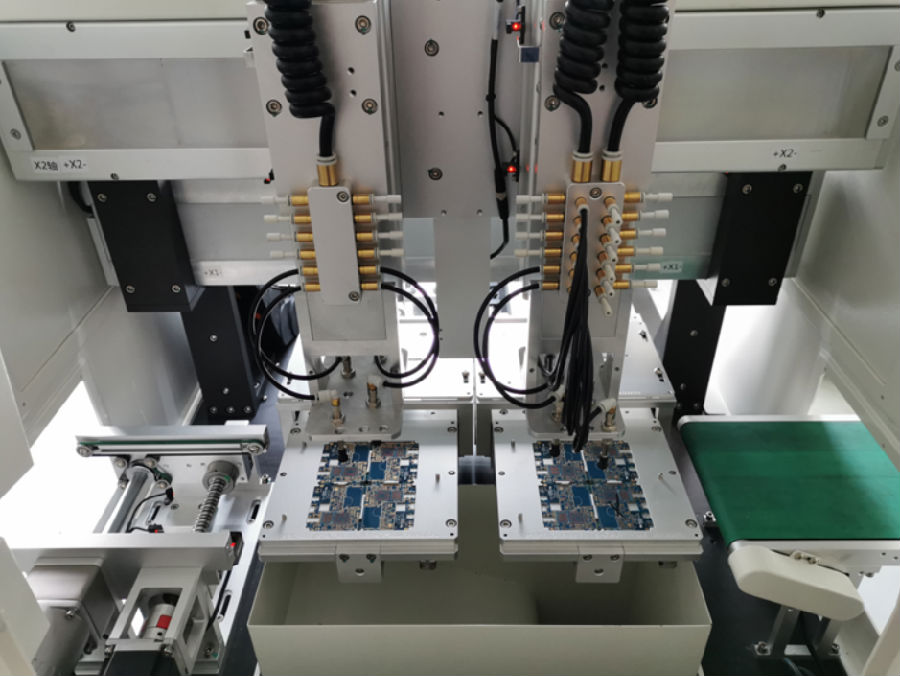

(5): The structure of the vacuum suction cup
1. Pick-and-place device: automatic loading and unloading (modular vacuum suction claw, vacuum device, can be independently controlled)
2. Transmission structure: X2 axis moves Z2, Z3 axis suction cup, AC servo motor control.
3. Board taking speed: 0-1000mm/sec (can be set)

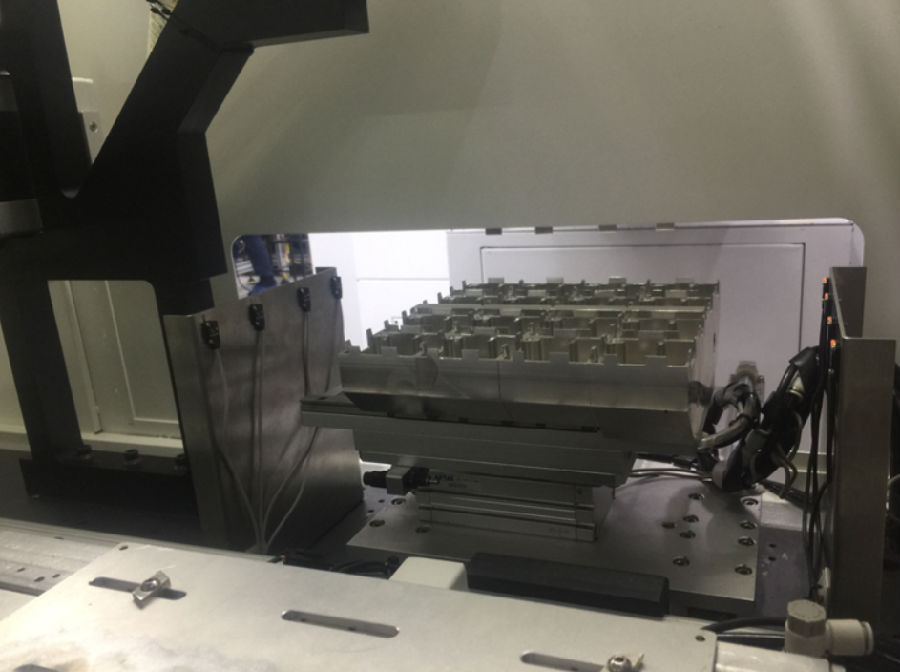

(6): Special product fixture tray discharge method
1. The vacuum suction cup take-up reel sucks the cut product in a one-time vacuum, places it on a special product fixture, and transports it to the next production process.

Quality Assurance And After-sales Service:
1. The overall warranty period of the equipment is one year. If there are quality problems, after-sales maintenance and replacement are provided free of charge.
2. The after-sales service personnel are all senior professional and technical personnel of the company. After the formal training of the company, you can work alone after passing the exam.
3. After the after-sales department receives the equipment failure notification, if the equipment fails to work normally, the Pearl River Delta will reply within half an hour, and dispatch personnel to the scene to solve it within 2 hours; the area outside the Pearl River Delta will reply within half an hour, and then according to the specific situation, within 24 hours Send after-sales personnel to the scene to solve the problem. (If the startup fails to produce normally, the after-sales personnel communicate with the customer and arrive at the scene within the time required by the customer).
4. The company's after-sales personnel are on standby 24 hours a day, regardless of Saturdays, Sundays and holidays.
5. After the equipment arrives at your company, our company will arrange engineering and technical personnel for installation and commissioning.
6. Our company can arrange after-sales technicians to stay in the customer's company for three days, responsible for training and technical guidance (the time can be extended according to the appropriate requirements of the customer) until they are accepted.
7. Our after-sales technicians are responsible for comprehensive training. Your company's operators and technicians will wholeheartedly serve the installation and operation of our company's equipment without reservation.
8. Under the premise of the customer company's request, our company can help the customer company to carry out the commissioning test of the sub-board machine for its technicians.
