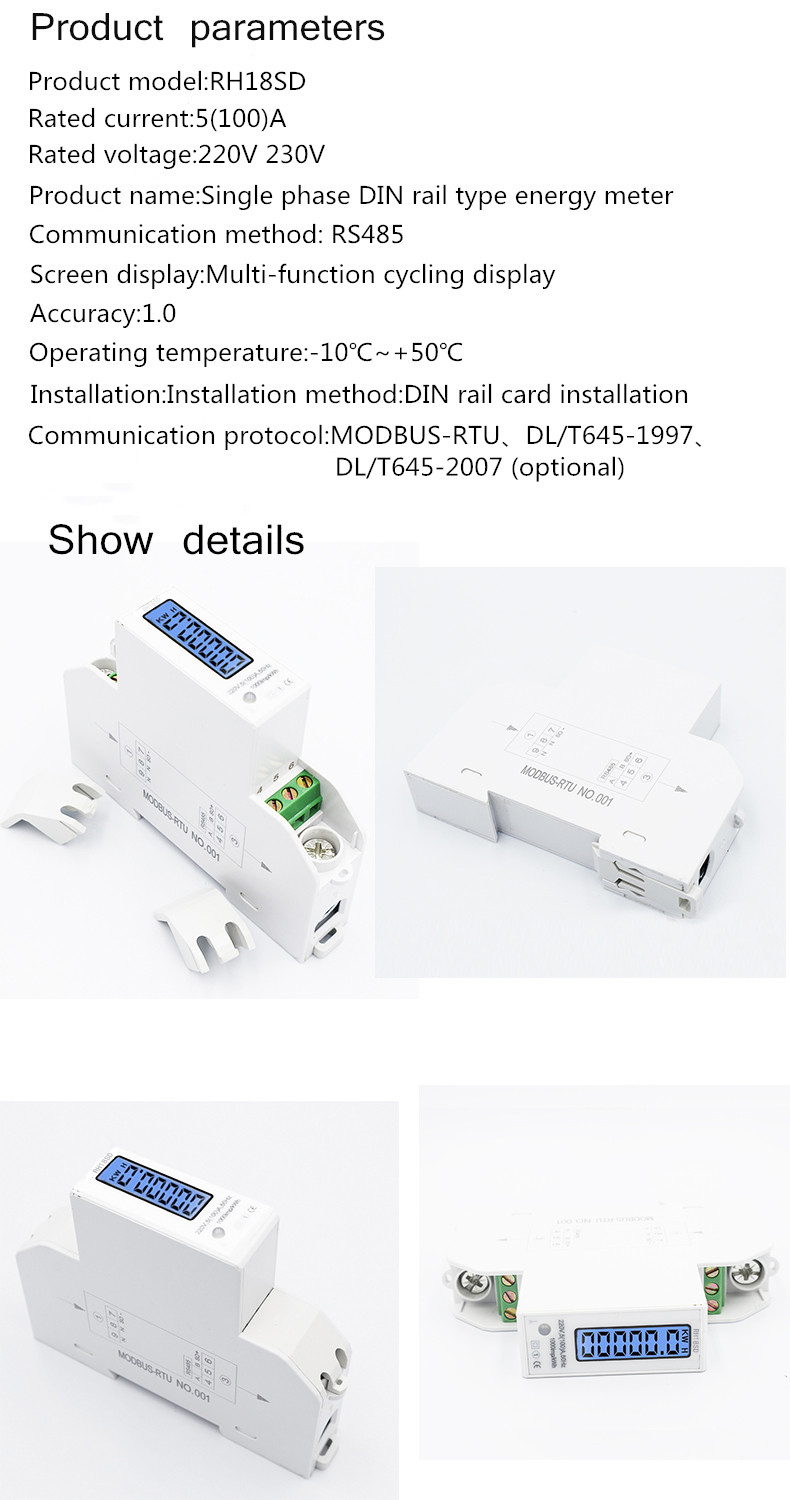

LCD Display Small volume Single phase electronic Energy Meter 230V 5(100)A Digital Energy Meter

Categories	Energy Meter
Place of Origin:	Zhejiang, China
Brand Name:	Customized
Model Number:	CN18SD
Display Type:	Digital Only
Phase:	Single Phase
Measuring Energy Range:	5(100)A
Accuracy Class:	1.0
Output Voltage:	127V; 220V
Operating Temperature:	-10℃~+50℃
Dimensions:	11617.565mm
Name:	Single Phase DIN rail Energy Meter
Color:	White
Rated voltage:	220V 230V
Frequency:	50HZ/60HZ
Connection Mode:	Directly Connection
Communication:	RS 485
Supply Ability:	5000

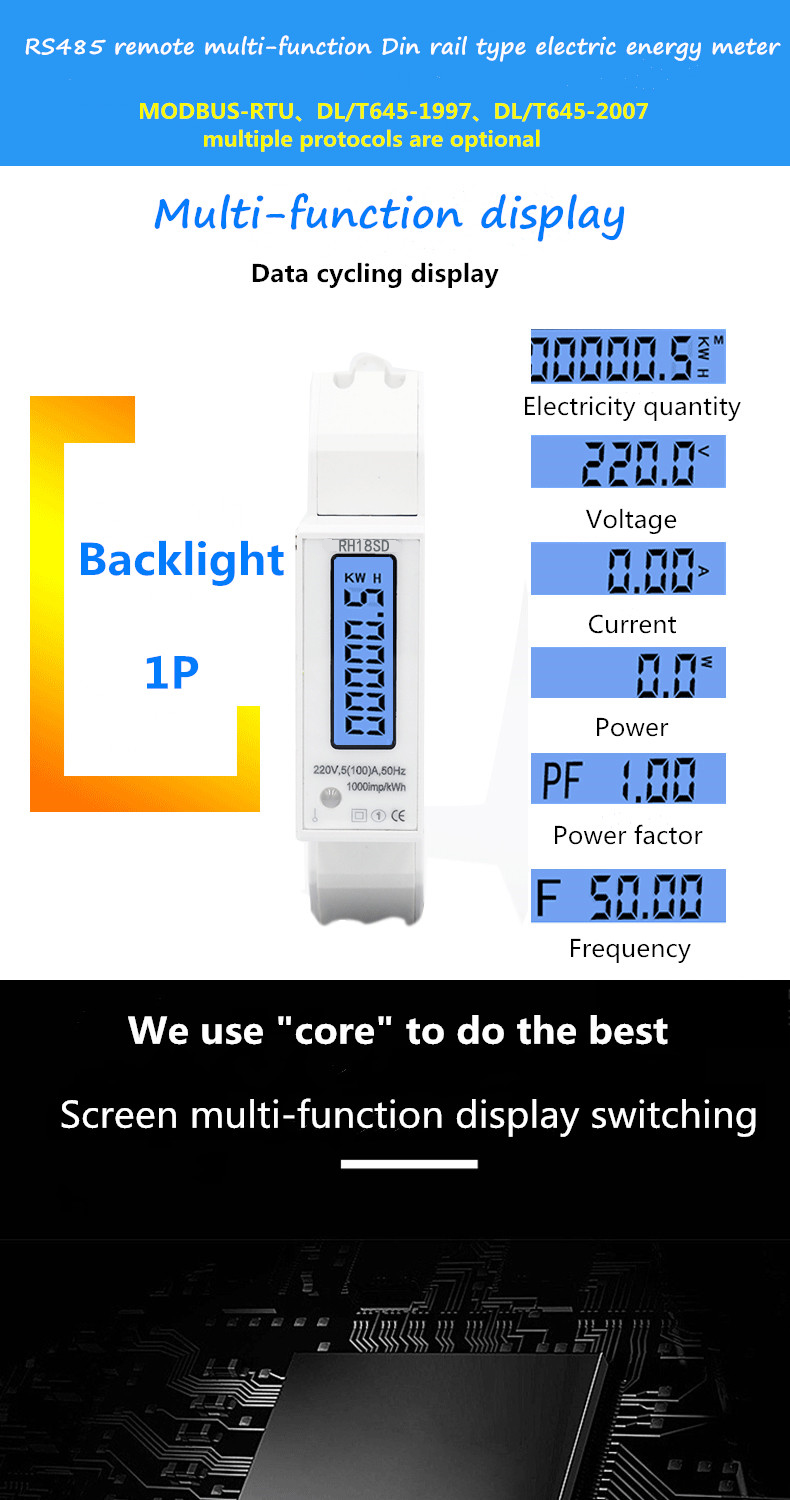

Screen display:	Multi-function cycling display
QTY:	100pcs/carton
Warranty:	18Months
Packaging Details:	1.Strong Strandard Export Package,Meet The Long-Distance Transportation
MOQ:	10 pieces
Price:	$18.50/pieces 10-99 pieces

Contact Now

Add to Cart

Company Info.

YUEQING RENHE ELECTRIC CO., LTD.

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

LCD Display Small volume Single phase electronic Energy Meter 230V 5(100)A Digital Energy Meter

Technical parameter

Type

Accuracy

Rated voltage

Rated current

Starting current(A)

Insulating performance

RH18SD

Class 1.0

220V

230V

5(80)A 5(100)A

0.02

AC voltage 4kv for 1 mimute,
1.2/50us waveform impulse voltage 6kv.

Note

If you need different reference voltage or current specification, please advisory us.

Wiring diagram

Type S

Indicators

Working Humidity ≤75%

Storage Humidity ≤95%

Operating Temperature -10℃~+50℃

Storage Temperature -30℃~+70℃

International Standard IEC 62053-21

Domestic Standard GB/T17215.321-2008

Accuracy Class 1.0

Dustproof and Waterproof IP51

Protective Insulation Encapsulation Type ΙΙ

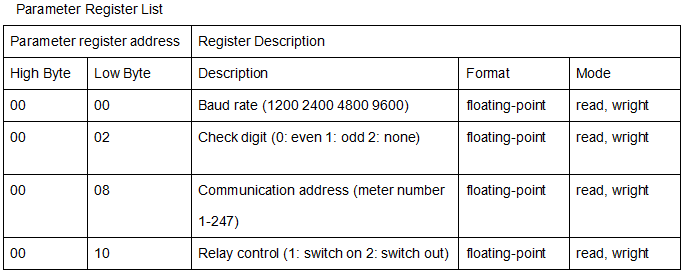

Data Register List
