| Brand Name: | CY COM |
| Model Number: | 40Gbps QSFP AOC |
| Certification: | ISO9001:2015 CE RoHS FCC |
| Place of Origin: | SHENZHEN CHINA |
| MOQ: | 1 piece |
| Price: | US $10 - 20/ Piece |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50K |
| Delivery Time: | 7-8 working days |
| Packaging Details: | 1 PCS /PE bag |
| Model No.: | 40Gbps QSFP+ To 4*SFP+ Active Optical Cable 10M QSFP 4SF |
| Data Transfer Rate: | 40Gbps |
| Function: | Compatible With All Brands |
| Wavelength: | 850nm |
| Length: | 10M.......Customized |
| Temp: | 0℃ To +70℃ |
| Company Info. |
| Shenzhen CY COM Product Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Super Speed Multi Mode Q4SFP AOC 40g Aoc Cable

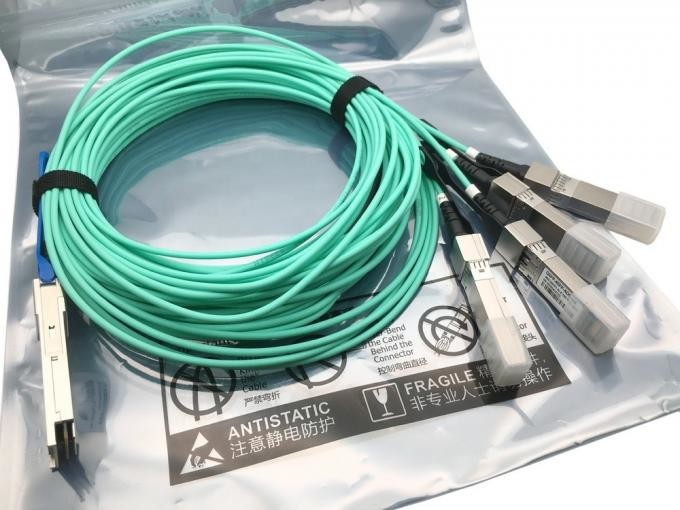

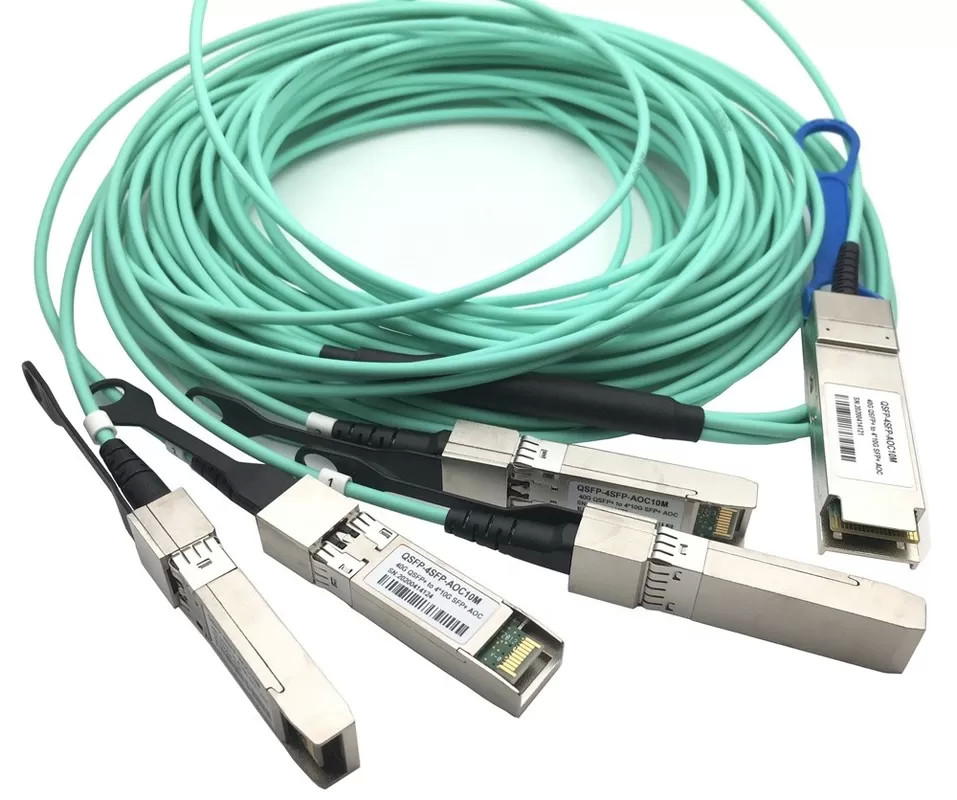

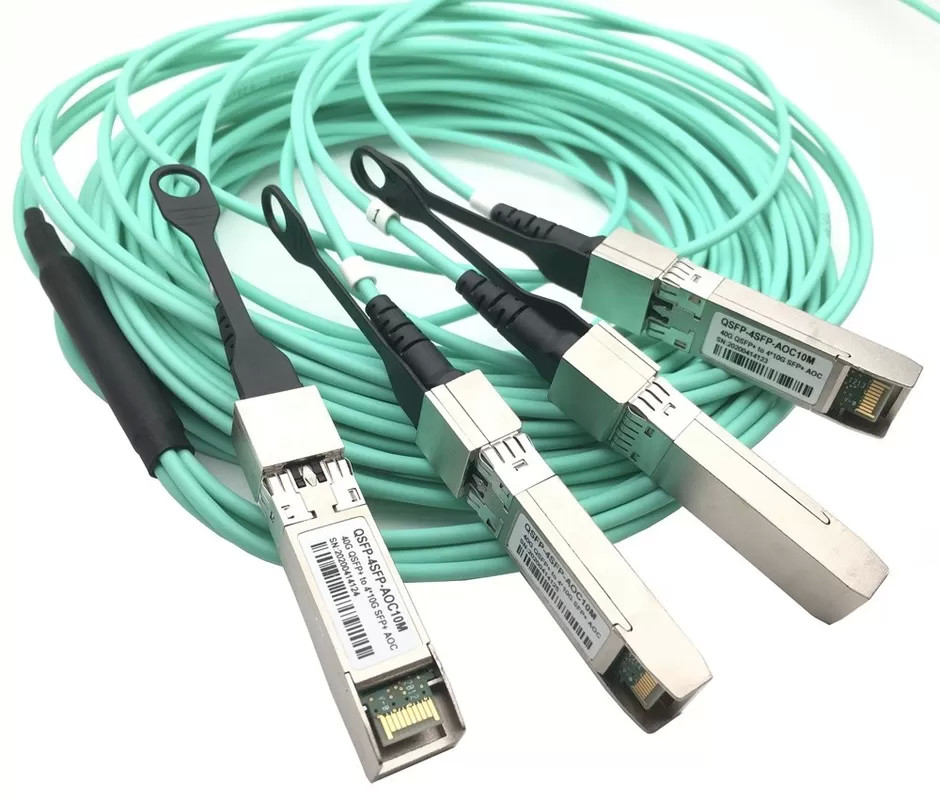

40Gbps QSFP+ to 4*SFP+ Active Optical Cable 10M QSFP 4SFP AOC
Description
Q4SFP-AOC series are active optical cables (AOC) that allows
bi-directional 40Gbps to 10Gbps transmission suitable for high
performance computing(HPC)clustering and other high-throughput data
network, with advantages such as high speed, high density, low
latency, low power consumption and light weight.
Applications
Low-latency and high-speed interconnections for high performance
computing(HPC)
40G Ethernet SR4
Other high-throughput data transmission network
Storage area Network(SAN)
Features
QSFP+ to 4*SFP+ module
QSFP+ Maximum Aggregate Data Rate 40Gbps
4*SFP+ Maximum Aggregate Data Rate 4*10Gbps
QDR,DDR,SDR(Infiniband)
Bi-directional pararell link
10Gb/s per lane,X4 channels
Up to 100m
Low profile connectors
Low power consumption
Bundle multi-mode fiber array
850nm VCSEL four array
PIN diode four array
Hot-Pluggable
I2C management interface
From 0 to 70 degree case temperature
3.3V power supply voltage
Electrical 38-pin connector
|
