Home > Plasma Welders >

12000mm SS Plasma Cutting Machine Cnc Plasma Table With Pipe Cutter

Categories CNC Pipe Cutting Machine
Place of Origin: Beijing, China
Brand Name: SNR
Certification: CE ISO
Packaging Details: nude package
Supply Ability: 5 Set/Sets per Month
Price: Negotiable
Model Number: SNR-XG2
MOQ: 1set
Payment Terms: T/T
Delivery Time: 25 work days
Name: stainless steel pipe plasma cutter
Voltage: AC220v,50/60Hz
Cutting pipe diameter: 60-400mm
Cutting pipe length: 6000mm,/12000mm can be customized
Control system: Fangling F2100AX Control System
Software: TubeMaster
Motor: Sevro Motor
Guide rail: 24KG steel rail
Base: Square tube welded frame
Roller support for pipe: 2pcs or 3pcs or 4pcs
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

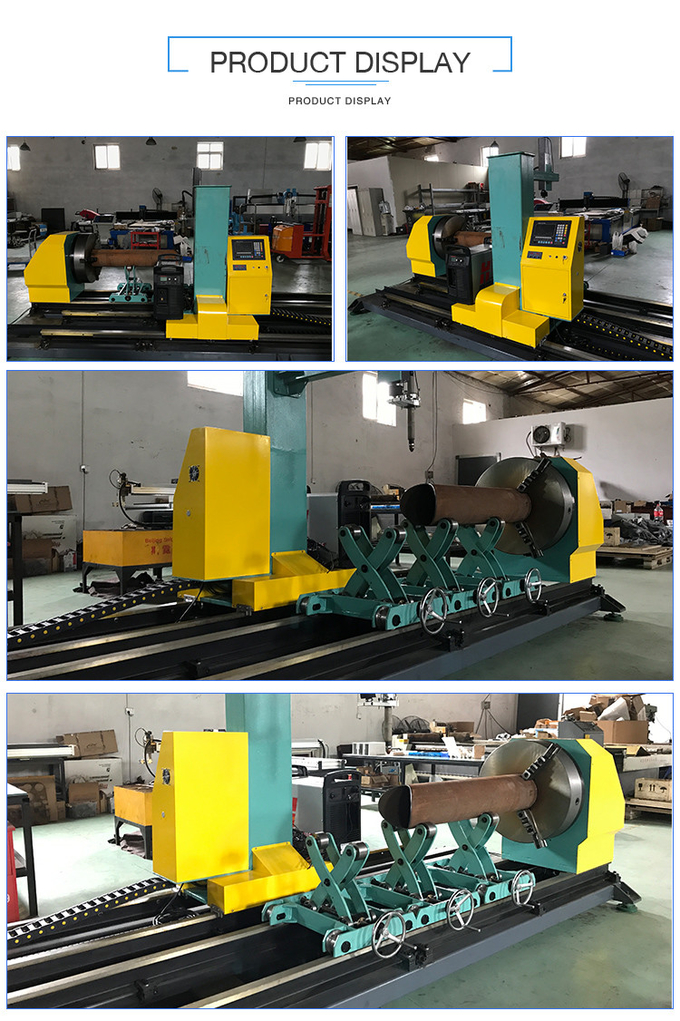

12000mm SS Plasma Cutting Machine Cnc Plasma Table With Pipe Cutter

Heavy Duty Metal SS Steel Tube Pipe Plasma Cutter CNC Plasma Cutting Machine


1. The CNC plasma pipe cutting machine is widely used in cutting pipeline structural parts in construction, chemical industry, shipbuilding, mechanical engineering, metallurgy, electric power, and other industries.

2. CNC plasma pipe cutting machine is very convenient for cutting and processing such workpieces.

3. It does not need an operator's calculation and programming. It only needs to input parameters such as pipe radius and intersecting angle of the pipeline intersecting system.

4. The CNC plasma pipe cutting machine can automatically cut intersecting lines, intersecting line hole, and welding groove of the pipeline. 5. The numerical control CNC plasma pipe cutting machine adopts digital control. The number of control axes of the machine is three axes. Each type of machine has the functions of cutting various intersecting lines and holes, cutting fixed-angle grooves, fixed-point grooves, variable-angle grooves, non-circularity, and eccentricity compensation of pipes.


Technical parameter:


NameTube Intersecting Line Plasma Cutting Machine
CNC controller for tubeFangling F2100AX without bevel
THCauto torch height control for plasma
Tube cutting length0-12000mm
Tube diameter60-400mm
Cutting modeplasma+flame
Plasma Cutting speed2-20mm, depends on plasma source
Flame cutting speed6-50mm
Motorservo motor
Input voltageAC220V,50/60Hz
Roller support for tube4pcs
Guidesquare tube welded base+24kg steel rail
SoftwareTube Master

Company Information

Beijing Seigniory NC Equipment Co.,Ltd is a professional manuafacturer and exporter of CNC cutting machine. we have been in this CNC filed for more than 14 years. Our main products includes portable CNC,gantry CNC, CNC plasma table for metal sheet and steel pipes.


Since the estabilsh of our company, we have been sticking to the path of specialization and had many engineering technology staff members.


Our machines are widely used in automotive manufacturing, shipbuilding, fan manufacturing,mining equipment, steel processing, advertising cutting, enginerring machiney, agricultural machinery and other machinery manufacturing industry.


So far we have exported to many countries like Russia, France, UK, Peru,, Mexico, USA, South Africa, Australia, Thailand, Malaysia, India and so on.


Packaging

FAQ

Q1: Are you a trading company or manufacturer?

A: we are a professional manufacturer of CNC cutting machine for 14 years.


Q2: Do you accept OEM for customer’s brand?

A: yes, we can do OEM. But we need MOQ for mass production.


Q3: What’s the delivery time?

A: The delivery time depends on machine model and quantity, you can directly contact us for more information.


Q4: What’s the payment terms for a new customer?

A: Under USD5000, 100% in advance by T/T. Above USD5000, 50% in advance by T/T, the rest be paid before delivery.


Q5: What kind of package do you use?

A: Plywood case, fumigation-free.


Q6: I know nothing about this machine, what kind of machine i should choose?


A: Very easy to choose. Just tell us what you want to do by using CNC cutting machine, the cutting size and thickness, and then let us give you perfect solutions and suggestions. Feel free to contact us!
