Brand Name: | JINHAIHU |
Model Number: | XGY |
Certification: | ISO9001 |
Place of Origin: | BEIJING, CHINA |
MOQ: | 1 set |
Price: | 60-90 USD/SET |
Payment Terms: | T/T, L/C, Western Union, MoneyGram, D/P, D/A |
Supply Ability: | 1000 sets per month |
Delivery Time: | 3~5 work days |
Packaging Details: | Standard export wooden cases |
Product name: | Plastuc pipe seal joint for internal pressure test of PE, PVE, PP pipe |
Test specimen: | PVC, PE, PPR, ABS, etc pipes |
Material: | 304# Stainless steel |
Technics: | Precision Casting |
Type: | Plug |
Model: | φ 32mm |
Exterior size(mm*mm): | φ 95*80mm |
Weight: | 1.2KG |
Company Info. |
Beijing Jinshengxin Testing Machine Co., Ltd. |
Verified Supplier |
View Contact Details |
Product List |

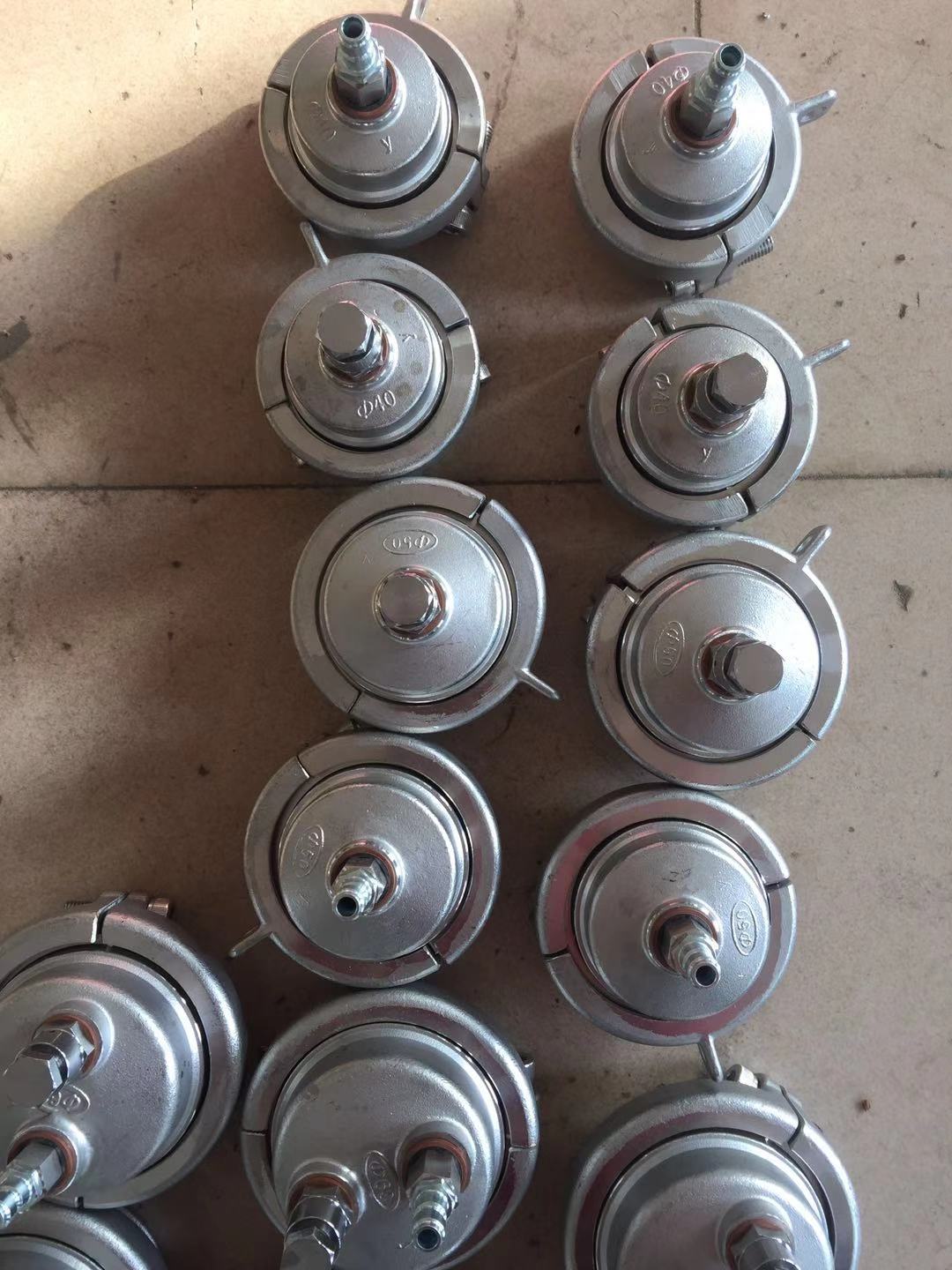

Plastic pipe seal joint for nternal pressure test of PE, PVE, PP pipe
Apply to:

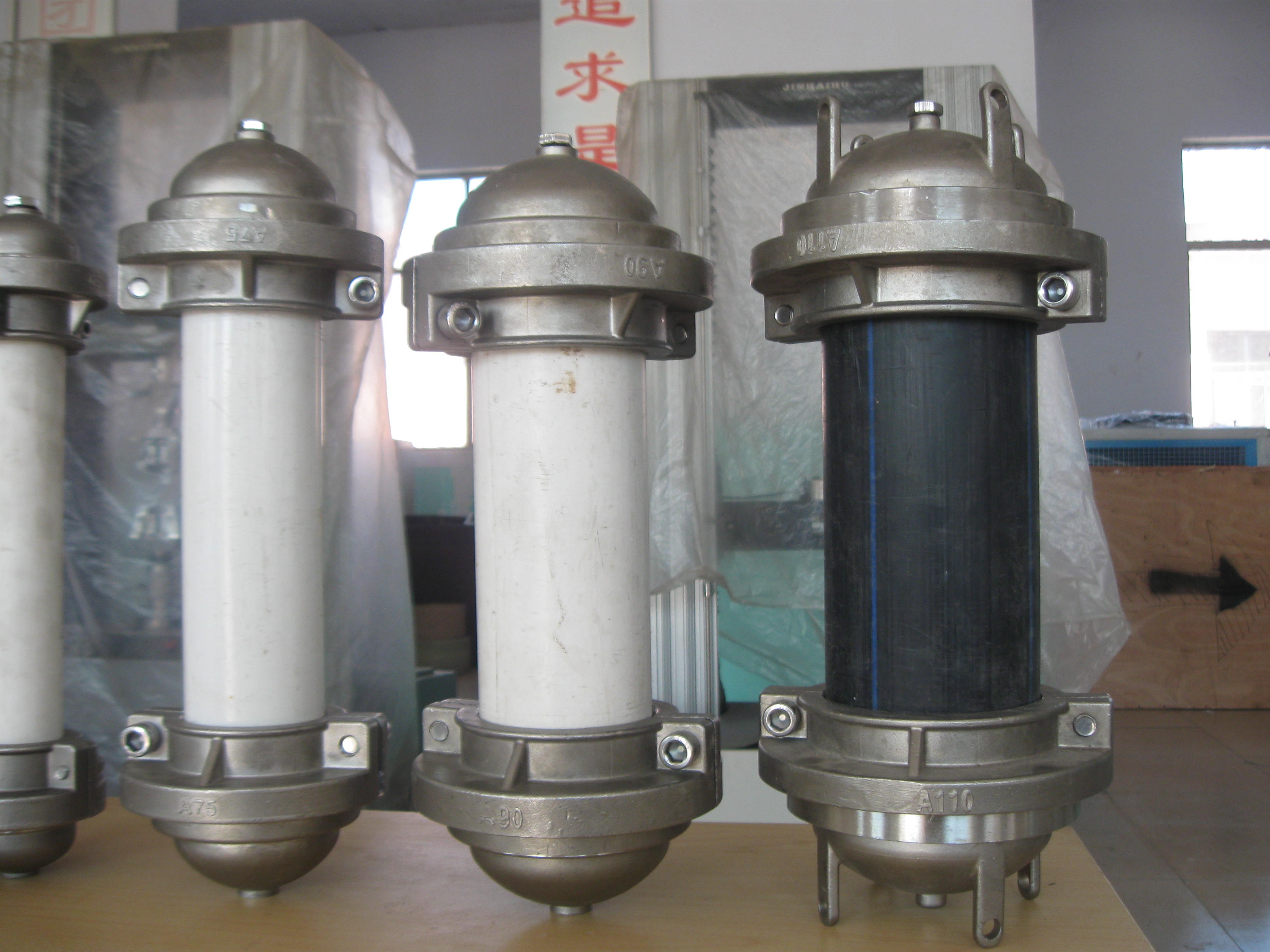

This series of products are the necessary supporting products of pipe, pipe fittings internal pressure resistance, hydraulic instantaneous blasting and applicability pressure test of pipe products, type A, B, internal seal, external seal and other specifications, suitable for different sizes of solid wall, structure wall, metal composite and other pipe, pipe fittings port sealing.
Summary:
Annual production end closure tens of thousands sets to ensure our technical and quality of this important pipeline hydrostatic pressure test fixtures, we adopt raw material is 45# carbon steel or 304# stainless steel, several type end closures like end seal or external seal and double seal, it's suitable for different size diameter of pipes.
Configuration:
Include bolt, O ring ,vent valve etc all assembly complete.
Fixture structure
Half round pot form,easy for installation , no leakage, convenient operation.
Technical parameter:
Product name | End Caps |
Color | Silvery white |
Outline dimension | φ95*80mm |
Applicable pipe's diameter | φ30~φ20+0.3mm |
Max. Pressure | 20MPA |
The size of seal ring | φ30*3.5mm |
Packing | Standard export carton |
Certificate | ISO |
Delivery time | 5~7 days |
![]() |
