Roofing 1.2mm Standing Seam Roll Former Machine For Nail Strip Snap Lock Panel

Categories Roof Tile Roll Forming Machine
Brand Name: FMS
Certification: ISO CE
Place of Origin: CHINA MAINLAND
MOQ: 1 Set
Price: Negotiable
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 20 Sets Per Month
Delivery Time: 30 Working Days
Packaging Details: 40' FLC
Product Name: Roofing Standing Seam Roll Forming Machine For Nail Strip Snap Lock Panel
Production Capacity: 10-15m/min
Rolling thinckness: 0.6-1.2mm
Dimension(L*W*H): 7000*1300*1550mm
Cutting blade material: Cr 12 High Grade Steel
Main frame: 400H Steel
Voltage: 380V 3Phase 50Hz as Your Request
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

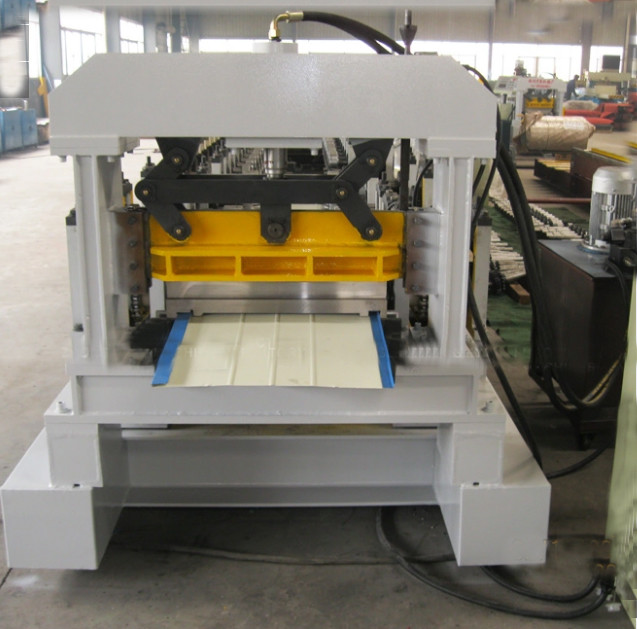

Roofing 1.2mm Standing Seam Roll Former Machine For Nail Strip Snap Lock Panel

Roofing Standing Seam Roll Forming Machine For Nail Strip Snap Lock Panel


Roofing Standing Seam Roll Forming Machine For Nail Strip Snap Lock Panel,roofing sheet standing seam profile roll forming machine has different types which used together with corrugated sheet and IBR sheet, or glazed tile sheet,selflock roof machine.The standing seam roof sheet is widely used in many kinds of industrial factory, civilian buildings, and Roof board for attached part product It has advantage of pretty appearance, durable using and so on.


Specification

No.
Roofing Standing Seam Roll Forming Machine For Nail Strip Snap Lock Panel
1
Suitable to process
Color alu-zinc steel coil/Aluminium Coil
2
Roller
16Rows
3
Dimensions
7.0*1.3*1.55m
4
Motor Power
7.5Kw
5
Pump Station Motor
5.5Kw.
6
Thickness of the plate
0.6-1.2mm
7
Productivity
10-15m/min
8
Material of the cutting blade
Cr12,Quenched treatment 58℃-60℃
9
Diameter of the roller
Φ90mm
10
Weight
About 4800kgs
11
Main structure of the machine
400H beams
12
Processing precision
Within 1.0mm
13
Side panel of machine
20mm
14
Chain Wheel and Cycle Chain
1 Inch
15
Voltage
380V 50Hz 3phases or as customer's need
16
Control system
PLC control (Delta)
17
Frequency system
Delta
18
Drive mode
Motor driver
19
Touch screen
Delta
20
Rolling materials
45# forging steel with chromium plate
21
Length Tolerance
±2mm

Guarantee


1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation


Payment terms


40% in advance as down payment

60% is paid before the shipment is processed


Delivery


FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
