Black Photovoltaic Tile Roof Solar Mounting System Aluminum Panel Hook

Black Tile Roof Mount System Tile Mount Household Solar Photovoltaic System

The black module mainly includes a black frame and a module body arranged in the black frame. The module body includes a transparent cover plate, a solar cell array and a black back plate from top to bottom. Since the frame and back plate are black, the appearance color of the module is consistent. The consistency of the appearance color makes the black modules more and more popular with consumers, especially in the field of distributed roofs, car sheds and photovoltaic buildings (BIPV) where there are certain requirements for the appearance. The black roof and building facade are fashionable and beautiful, and can also generate electricity. They are especially popular with distributed users in Japan, the Middle East and Europe and America.

The black solar mount system is a product specially produced for black modules. It can make the color of the whole system more consistent, thus greatly increasing the aesthetics. We choose the anodizing method to make the aluminum products black. The thickness of the oxide film is more than 12um, and the AA15 standard is implemented. This process can keep color fastness more than 10 years even in outdoor environment.

LP SOLAR will develop and research new products according to market demand and updating of relevant products.

We respect roofs!

Technical Data

Installation steps

1. Hook installation	2. Rail installation	3. Panel installation

Tile Roof Mount System Components

Photo	Item No	Name	Product type	Product line
	A8011	Hook	Hook	MRA1

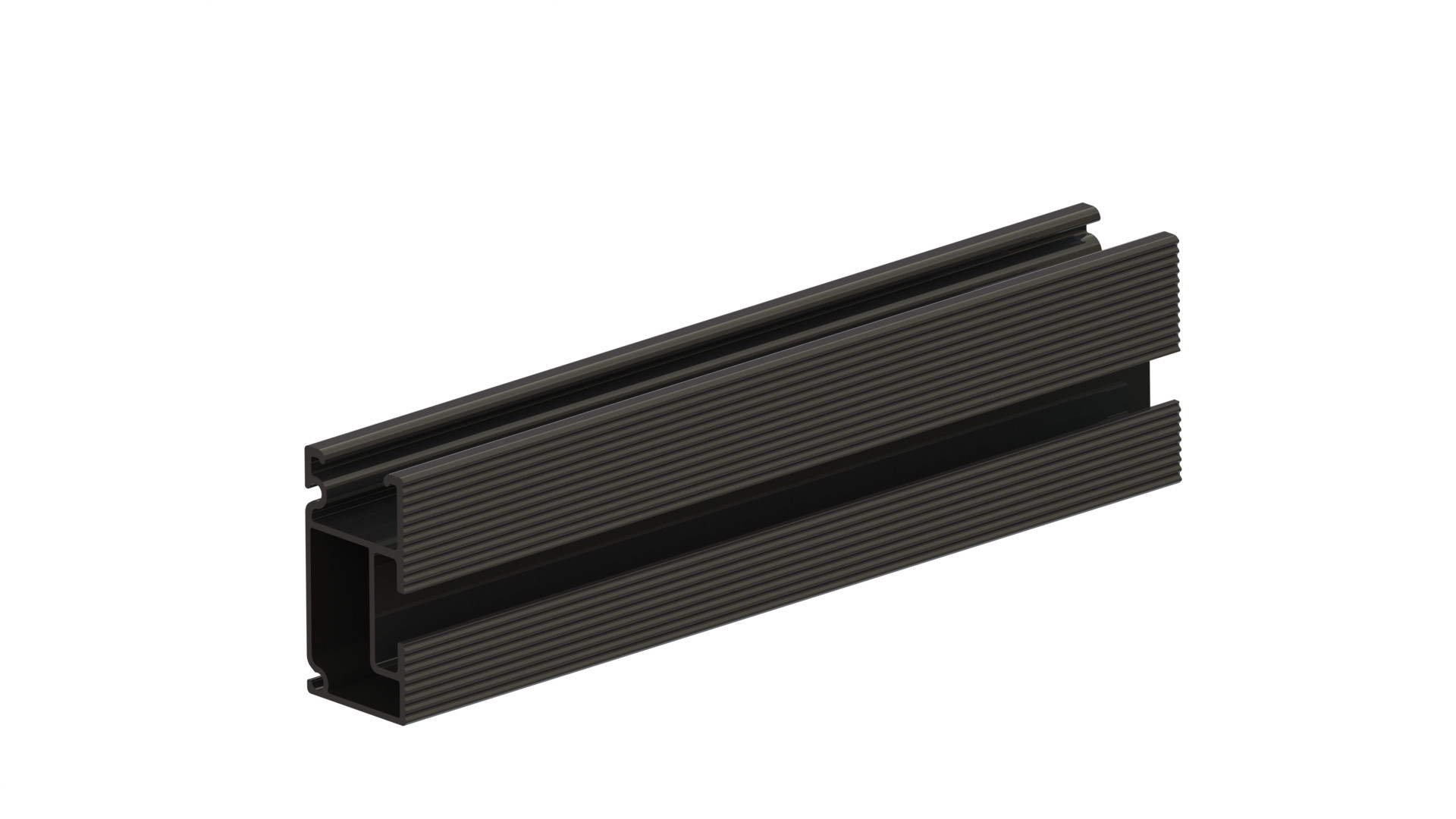

	49L0000A	Rail 50	Racking	MRA
	AC02	Rail 50 joiner	Racking	MRA
	A735	Mid clamp	Racking	All

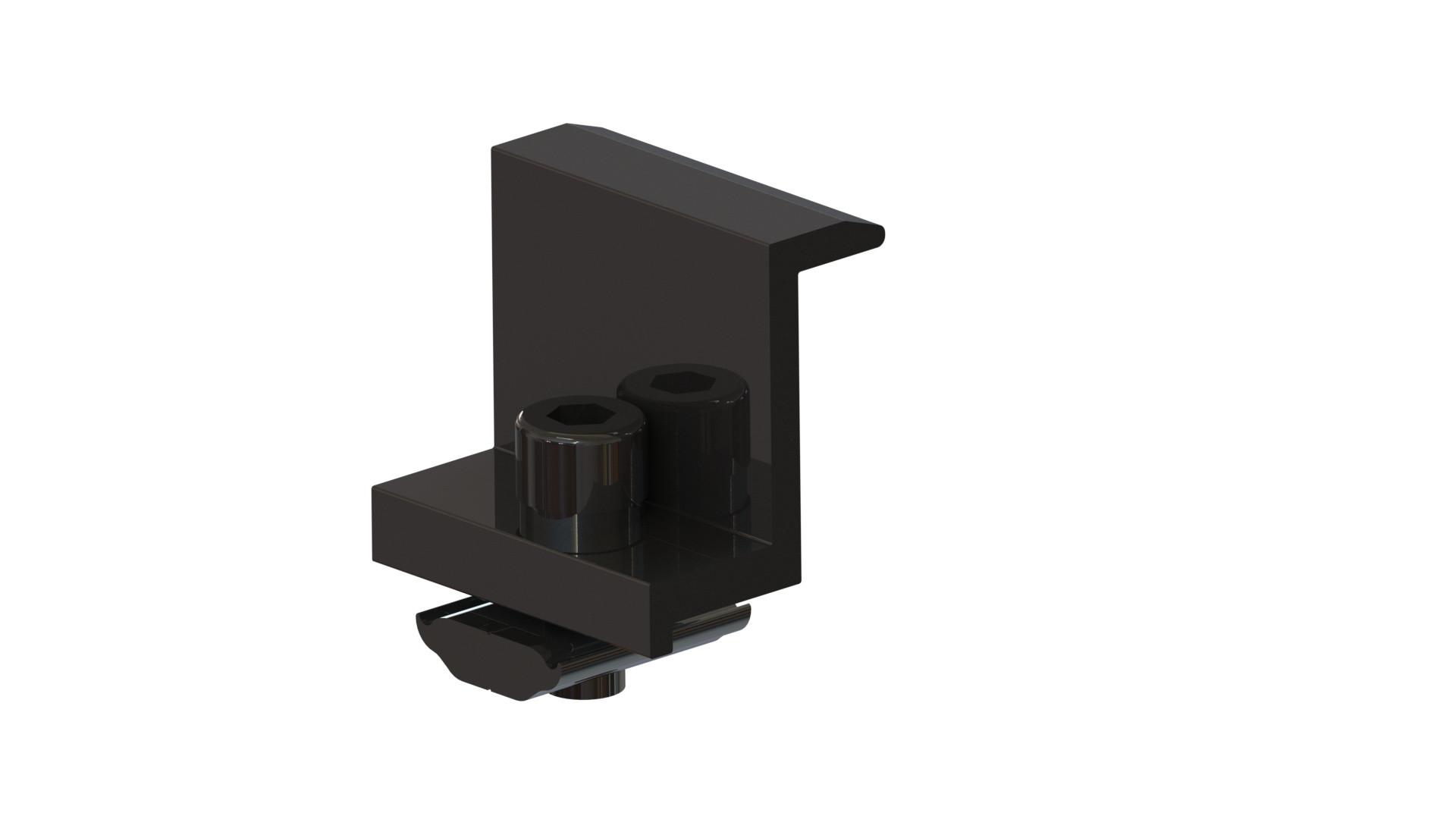

	A835	End clamp	Racking	All
	H6WL0000S	Earthing plate	Earthing	MRA
	ED02	Earthing lug	Earthing	MRA

Welcome to LP SOLAR!

Lipu Metal (Jiangyin) Co., Ltd was pervious called “Leapton Metal (Suzhou) Co., LTD”. And moved from Suzhou to Jiangyin in 2018. It is specialized in R&D, production and sales of solar mounting system and panel frame. So far, our products has been shipped to Japan, Vietnam, Singapore, Philippines, South America, Africa and so on.

The annual production capacity of panel frame is 2GW, and the annual production capacity of solar mounting system is 500MW.

To market demand-oriented, LP SOLAR will provide you with exclusive solar photovoltaic system solutions!

MISSION

To provide our customers PV modules and mounting systems with competitive prices, plus outstanding technical support and customer service.

STRATEGY

Market oriented by offering Customized products and services and committed to delivering clean energy solutions to maintain a unique position in the market.

VISION

LP Solar strives to maintain a state-of-the-art technology based on green energy by marketing the international-standard products that are backed by a 25-year warranty and outstanding technical support.
