HUAWEI EAS2 SSN1EAS2 03051791 Huawei OSN3500 / OSN7500 2-Ports 10G Processing Board

Categories SDH MSTP PTN Equipment
Brand Name: HUAWEI
Model Number: SSN1EAS2
Place of Origin: CHINA
MOQ: 1pc
Price: $100-$200
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 500pcs/week
Delivery Time: 3-7 work days
Packaging Details: 1pc into a spare inner foam carton and pack with exteral wooden carton
Type: SDH/MSTP/PTN
Products status: Stock
Product name: HUAWEI 03051791
Shipping term: DHL,Fedex,UPS,EMS,AIR
Condition: Brand New
Warranty: Six month
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

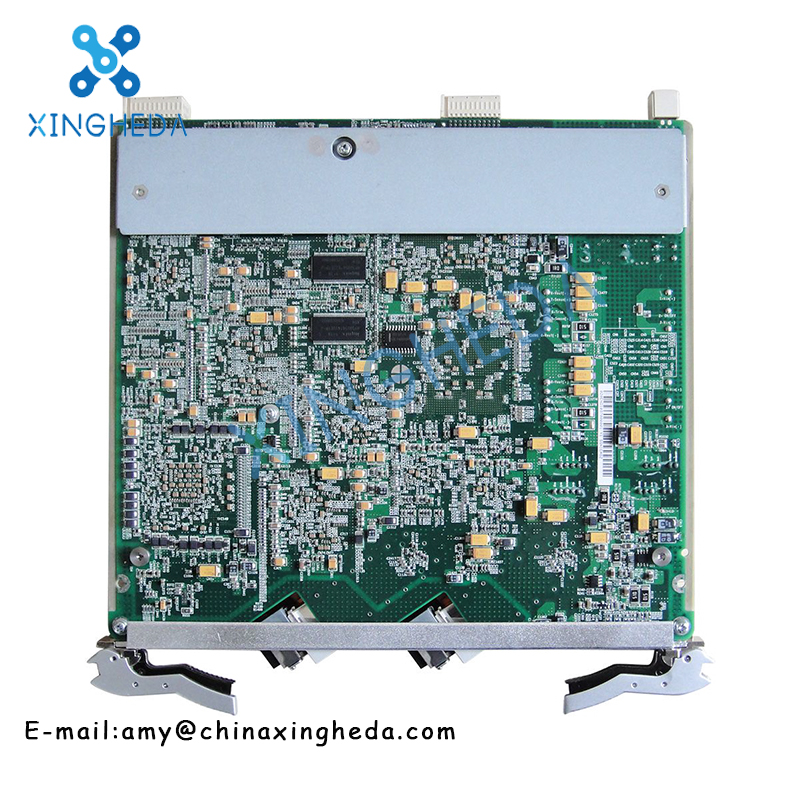

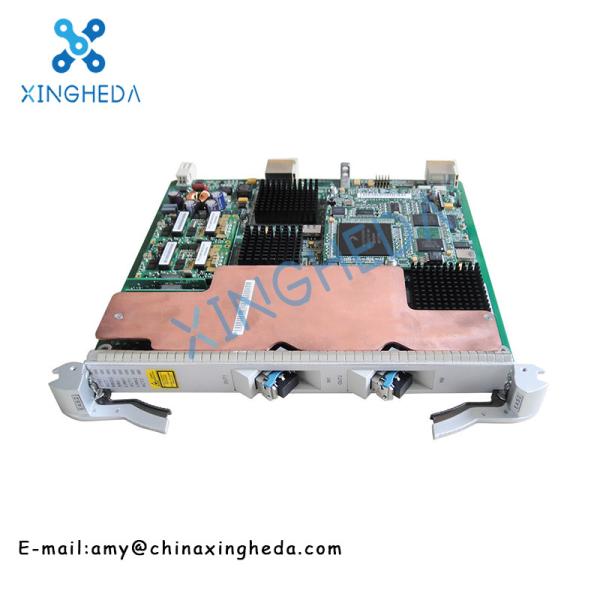

HUAWEI EAS2 SSN1EAS2 03051791 Huawei OSN3500 / OSN7500 2-Ports 10G Processing Board

HUAWEI EAS2 SSN1EAS2 03051791 Huawei OSN3500/OSN7500 2-ports 10G Processing Board

Product Desription:


SSN1EAS2 2-ports 10GE Ethernet Processing Board with LAN Switch, apply to Huawei OSN3500, OSN7500

Supports 10GBASE-LR and 10GBASE-LW Ethernet optical ports, which comply with IEEE 802.3ae.

Supports Non-autonegotiation mode.

Supports Query/Setting of port status and Query of port types.

Not supports Setting of optical power thresholds.

Supports XFP optical modules.

Supports PORT-based transparent transmission.

Supports PORT-shared EVPL services.

Supports VCTRUNK-shared EVPL services.

Supports a maximum of 2048 links.

Supports a maximum of one virtual bridge (VB) on N1EAS2 boards.

Supports blacklist that can contain 512 records.

Supports static media access control (MAC) address table that can contain 512 records.

Supports the self-learning of the source MAC address.

Supports the configuration of static MAC routes.

Supports the query of the aging time of an MAC address.

Supports the query of learned MAC addresses by VB+VLAN or VB+LP.

Supports EPLAN services that are based on IEEE 802.1d MAC bridges.

Supports EVPLAN services that use stack VLAN encapsulation.

Supports data isolation based on VB+VLAN.

Supports EVPLAN services based on IEEE 802.1q virtual bridges and IEEE 802.1ad provider bridges.

Supports IEEE 802.3,Ethernet II, IEEE 802.1 q/p.

Supports the setting of the frame length to a value ranging from 1518 bytes to 9600 bytes.

Supports a jumbo frame with a maximum length of 9600 bytes.

Supports bound bandwidth 64xVC-4 or 192xVC-3.

Supports VC-4-Xv (X≤8), VC-3-Xv (X≤24), and VC-4-4c concatenation granularities.

Supports a total number of 4094 VLANs, which comply with IEEE 802.1q/p.

Supports a maximum of 10 Gbit/s upstream bandwidth and can adapt to the bandwidth of its slot.

Supports a maximum of 24 VCTRUNKs.

Not supports TPS,BPS,PPS,MSTP,ERPS; supports DLAG.

Supports manual link aggregation and static link aggregation.

Supports the load sharing mode and load non-sharing mode.

Supports P2P LPT P2MP LPTand LCAS in compliance with ITU-T G.7042.

Supports the broadcast packet suppression function and RSTP, which comply with IEEE 802.1w.

Supports the port-based traffic control function that complies with IEEE 802.3x.


SSN1EAS2 is a 2-ports 10 GE Ethernet services board, can be used on Huawei OSN3500, OSN7500. SSN1EAS part number is 03051791. SSN1EAS2 comes with 2 units 10GBASE-LR (LAN) XFP module, transmission distance is 10km. XFP module is swappable to perform different transmission distance.

Specification:

Valid Slot

OSN 3500: The SSN1EAS2 can be installed in slots 5-8 and 11-14.

OSN 7500: The SSN1EAS2 can be installed in slots 1-8, 11-18, and 26-31

Optical Interface Parameter
Transmission rate10.3125 Gbit/s or 9.953 Gbit/s
Processing capability2x10GE signals
Type of optical interface10GBASE-LR/LW
Type of fiberSingle-mode LC
Transmission distance (km)10
Operating wavelength range (nm)1290 to 1330
Maximum mean launched power (dBm)-1
Minimum mean launched power (dBm)-6
Receiver sensitivity (dBm)-11
Minimum extinction ratio (dB)6
Connector typeLC
Maximum -20 dB spectral width (nm)1
Minimum side mode suppression ratio (dB)30
Mechanical Specifications
Dimensions (mm)25.4 (W) x 235.2 (D) x 261.4 (H)
Weight (kg)1.2



Product details:



If you are interested, please let us know the specific model. We will provide the best service and the best price!
