Wear Resistance Pcd Drilling Tool For Monocrystalline Silicon / Polysilicon

Categories PCD Micro Drill
Brand Name: Worldia
Model Number: d1*L2*SD3.175*L*α
Place of Origin: Jiaxing,China
Product Name: PCD mirco drills
Application: Monocrystalline silicon,polysilicon
Customized: Support
Series: WZ3 series
Specification: d1*L2*SD3.175*L*α
Machining: Utral-mirco Ф0.2-Ф2mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

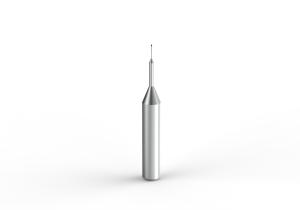

Wear Resistance Pcd Drilling Tool For Monocrystalline Silicon / Polysilicon


PCD (Poly Crystalline Diamond) is a synthetic diamond made of sintered diamond powder and other metals.

Worldia is among the very few manufacturers to produce micro PCD tools.


PCD Micro Drill SPECIFICATION

PCD Mirco drill Specification Selection Table
SeriesSpecificationd1(mm)L2(mm)maximum diameterD2LαApplication
WZ3d1*L2*SD3.175*L*α0.2-≤0.352~4383.17538/45110°-130°Monocrystalline silicon,polysilicon
0.35-≤0.757~13.5
RemarksNon-standard PCD Mirco Drill can be customized!

PCD Micro Drill Features


  • 1. Micro PCD Drills & Tools are new technology allowing achievement of superb surface finish in Machining very hard materials in the Dental, Electronics, and D&M industries.

  • 2. PCD micro drill is widely used in addition to processing metal materials, can also be used for inorganic non-metallic material processing, with high processing precision

  • 3. PCD Mirco protects the bits from abrasion and wears when drilling steel, stainless steel, and heat-resistant alloys.

PCD Micro Drill Slot Structure and Drill Tip

  • 1. PCD micro drill ranges from 0.2mm

  • 2. The PCD micro Utral-Mirco is Ф0.2-Ф2mm


PCD Micro Drill Category and Application Field

PCD Micro Drill Processing Case

  • single-crystal silicon machining case

PCD Micro Drill Patent Certificate
