700m Hydraulic Crawler Drilling Rig , Water Well Drilling Machine With Track Chassis

Categories Drill Rig Machines
Brand Name: Glorytek
Model Number: 800A
Certification: CE
Place of Origin: China
MOQ: 1
Price: Negotiable
Payment Terms: T/T, L/C, Western Union, MoneyGram, D/P, D/A
Supply Ability: 40sets/month
Delivery Time: 20 days
Packaging Details: Standard exporting packing
Name: 800A 700m Top-Driving Full-Hydraulic Water Well Drill Rig Machines With Track Chassis
Keyword: Full-Hydraulic Water Well Drill Rig Machines
Depth: 700m
Drilling diameter: 140-500mm
Working air pressure: 1.05-6.45MPa
Rod length: Φ89/Φ108/Φ127mm
Lifting force: 32t
Weight of the rig: 15.5t
Diesel engine: 76(kW)
Dimensions(L-W-H): 8.7×2.3×3.3m
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

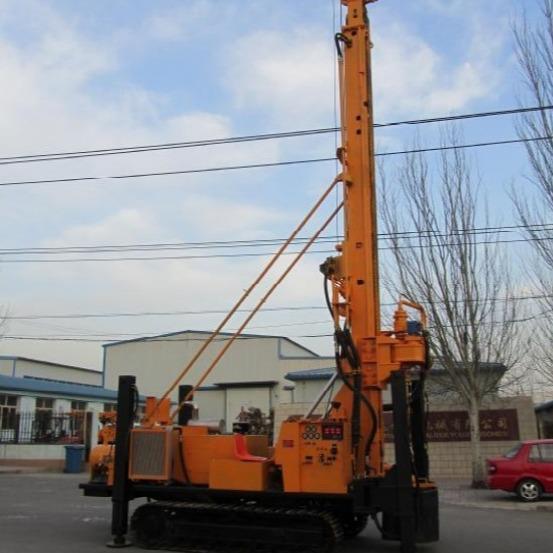

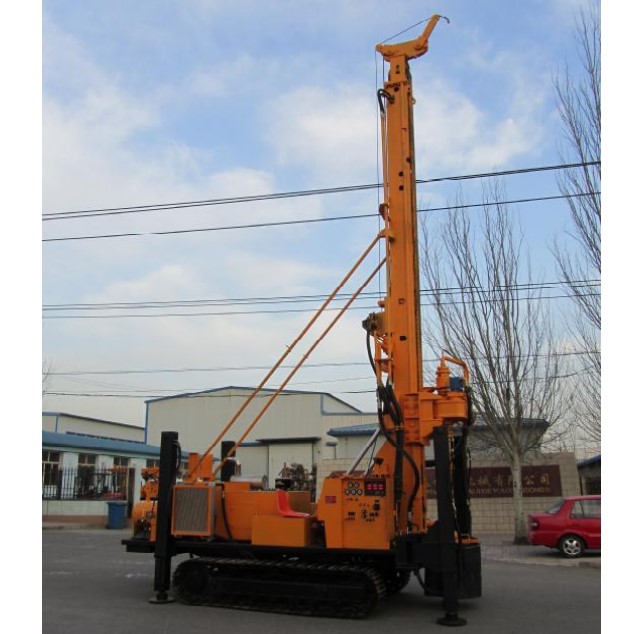

700m Hydraulic Crawler Drilling Rig , Water Well Drilling Machine With Track Chassis

800A 700m Top-Driving Full-Hydraulic Water Well Drill Rig Machines With Track Chassis


Description:

This kind of drilling rig is suitable for air drilling, we also have customers who like drilling with mud pump, we can also install mud pump on the drilling rig according to customer's requirements. Whether you need an air compressor or a mud pump, we can provide it. We can also provide a full range of drilling tools.

This machine has high drilling efficiency and high cost performance. If you are interested in this drilling machine, please kingly contact us and we will reply you as soon as possible.


Tehnical Parameter:


Model:
800ADrilling depth
700m
Drill diameter:
140-500mm
Air reverse double ply drill rod:
127mm(Optional)
Working air pressure:
1.05-6.45Mpa
Air consumption:
16-96.4 m³/min
Drill rod length:
4.5m
Drill rod diameter:
89mm;108mm; 127mm
Axial pressure:
6t
Lifting force:
32t
Slow lifting speed:
4.4m/min
Fast lifting speed:
25m/min
Slow feed speed:
0.5-7.2m/min
Fast feed speed:
36m/min
Rotation torque:
13000Nm;6500Nm
Rotation speed:
0-80r/min;0-160r/min
Lifting ability of big winch:4tLength of steel rope:60m
Lifting ability of small winch:1.5tMud pump flow rate:600L/min(Optional)
Centrifugal pump flow rate:1300L/min(Optional)Dynamo:24Kw/380v(Optional)
Grade ability:
21°
Penetration rate:10-25m/h
Drilling Method:
Downhole hammer or Mud Drilling
Whole dimension:
8.7×2.3×3.3 m
Weight:
15.5 t
Hammer:
Intermediate or high air pressure series
Application formation:
Unconsolidated layer or bedding rock



Features

◆Full hydraulic
◆Steel crawler chassis
◆Cost-effective
◆High drilling performance

Company Profile


Glorytek Industry (Beijing)Co.,Ltd., located in Beijing, China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.

Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering, underwater rock drilling & blasting operations of seaport channel, hydropower project, national defense projects ect.

We have cooperative customers in more than 60 countries around the world. Our machines support their local engineering well. We have been supplying drilling equipment and drilling tools

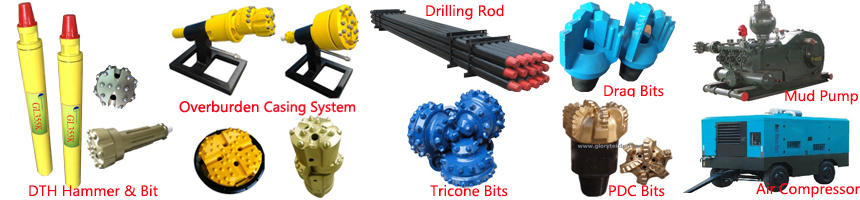

Besides the drilling rig machine, we can also supply other drilling equipment and drilling tools for borehole drilling projects, such as air compressor, mud pump, drill rods, DTH hammer and bit, tricone bit, drag bit, adaptors, etc.
