Woven Fabric Polyester Mesh Belt For Paper Making Industry Dryer

Categories Polyester Mesh Belt
Brand Name: RK
Model Number: RKDB01
Place of Origin: China
MOQ: 1square meter
Price: USD 9.8-13.8/square meter
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 square meter per month
Packaging Details: woven bag+wooden case
Name: polyester dryer screen
Color: red and white
Width: 1-4meters
Length: 1-100meters
Material: 100%polyester
Usage: produce the non-woven fabric
Type: 4106
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

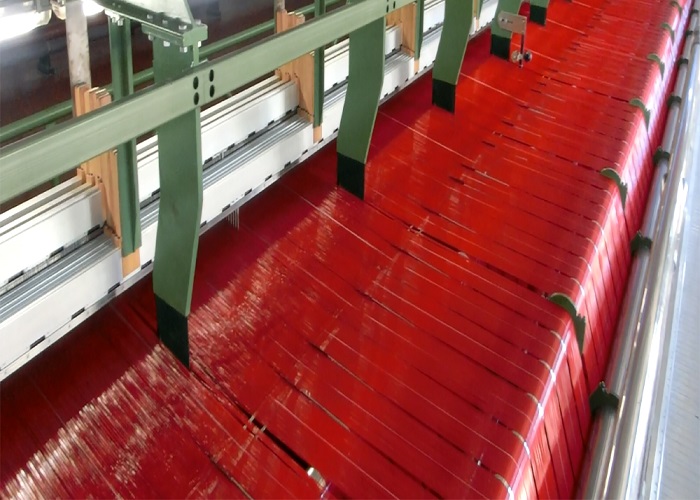

Woven Fabric Polyester Mesh Belt For Paper Making Industry Dryer

Polyetser Dryer Screen For Woven Fabric For Paper Making Indurty Dryer Mesh Belt

Introduction:

Polyester woven dry nets can be divided into one and a half layer, double-layer , flat wire, double flat wire and special material dryer fabric according to the types.

24503/22503 is suitable for multi-cylinder paper making machines, used in the first 3 groups of dryers, producing paper which weight less than 70 grams.

24504/22504/20654/4106 is used in multi-cylinder paper making machines. Due to its high air permeability, it is generally used in the second half part of the paper machine to produce the paper which weight more than 70 grams of paper.

4106-2/18688/16904 flat wire dryer, generally used in multi-cylinder paper machines, the first 3 groups of dryers to produce high-grade paper.

.


Product NameNon-woven fabric dryer belt polyester dryer screen
Material100% Polyamide thread
Techniquedense weave
width30cm,40cm,60cm,1m or customized
Seamspiral ring,pin seam and endless seam
EdgeDdges sealed by glue;heat resistant cloth
Working temperture-70 ℃ to 180 ℃
HP value2 to 8

Specification:


Type


Wire Diameter mm


Density /cm


Weight

Kg/m2


Thickness

Mm


CFM

200Pa


Warp


Weft


Warp


Weft

225030.500.5024121.062.0500
245030.500.5025121.102.0438
225040.500.5024121.262.1750
245040.500.5026121.32.1680

4106


0.50


0.50


23


12.6


1.2


1.75


425


4106-1


0.5

0.3

22.8



1.3


1.8


500

0.7
4106-20.35*0.680.5019.615.71.101.62345
155050.25*0.400.501713.50.750.83406
206540.33*0.520.65227.51.021.35625
186880.30*0.580.35/0.682018.51.21.40100
169040.29*1.060.90/0.9815.28.61.331.54120
