Square And Round Downspout Roll Forming Machine Aluminium Rain For Building

Categories Down Pipe Roll Forming Machine
Brand Name: CANGZHOU WILLING
Model Number: Square/Round Down Spout
Certification: ISO CE
Place of Origin: CHINA
MOQ: 1 Set
Price: Negotiable
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 20 Sets Per Month
Delivery Time: 30 Working Days
Packaging Details: 20' FLC
Product Name: Square And Round Down Spout Roll Forming Machine Aluminium Rain For Building
Raw Material: PPGI
Voltage: As per requested
thickness: 0.3-0.8 mm
Control system: PLC
Usage: roofing
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Square And Round Downspout Roll Forming Machine Aluminium Rain For Building

Square And Round Down Spout Roll Forming Machine Aluminium Rain For Building

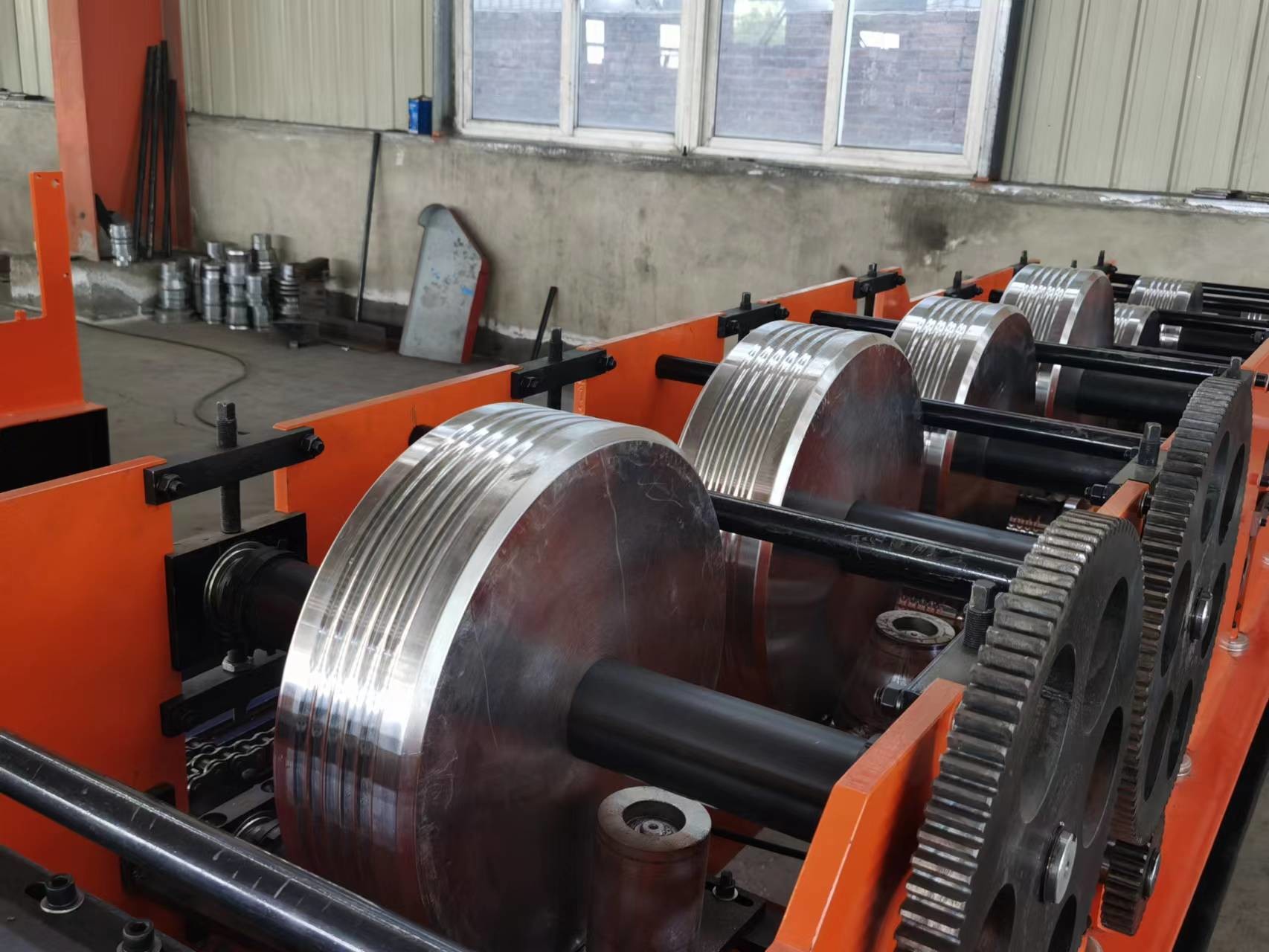

This downpipe roll forming machine is for steel sheet or aluminum sheet cold-form industries. It can roll-forming the steel sheet according to the customer’s requirement continuously, automatically cut to length.
The equipment adopts PLC control, AC frequency, and adjusting the speed technology, and it realizes the continuous automatic production, therefore, it is really a new type of energy-saving and high-effective producing equipment for the metal downpipe.
Our downpipe roll forming machine has many advantages, just like high forming speed, low noise, stable transmission, easy operation, good appearance, and so on.


Specification


No.ItemDescription
1CoilPPGI
2Raw Material Thickness0.3 mm - 0.6 mm
3Working Speed7-15 m/min
4Roller Station26 Stations
5

Dimension (L*W*H)

8000 mm*800 mm*1200 mm
6Machine Weight6000 KG
7

Electrical Control System

PLC

8

Drive Motor Power

4 KW
9

Hydraulic Station Power

4 KW
10

Power Supply

380V, 60HZ, 3 PHASES(can be customized)

11

Cutting Accuracy

± 2 mm

12

Driving Mode

Single Chain 1 inch

13

Material of Shaft

60 mm 45#steel forged

14Material of Roller

45# Steel Finish Machining


Installation


During the installation and adjustment of the equipment, our engineers shall provide the training to the buyer’s personal request to operate and maintain the equipment. Including foundation construction, electrical works, hydraulic oil, safe operation, and non-standard safety items, testing material and etc.


Guarantee


The warranty will be maintenance, maintain in the guarantee period of 18 months starting from delivery. Because of the quality of equipment during the guarantee period, we will provide the parts free of charge, which is in the conditions of correct operation. (Natural disasters or factors which can’t be forced by human are excluded).


Payment terms


40% in advance

60% is paid before shipping



Cheap Square And Round Downspout Roll Forming Machine Aluminium Rain For Building for sale
