MIS-ITX10B Embedded Industrial PC, support i3/i5/i7 Laptop or Desktop CPU
Features:
■ Supports i3/i5/i7 Notebook CPU or desktop CPU
■ Economical solution
■ Supports desktop mounting
■ Supports behind monitor mounting, bracket mounting
■1LAN,2COM, 6 USB as standard, optional 2LAN,6COM
| Specification parameters | Optional configuration | |||||||
| Chassis | All-steel ,black | Optional industrial grey and other colors | ||||||
| Front | Metal POWER Switch with Indicator , 2USB2.0. | Customizable customer LOGO or other requirements | ||||||
| Back | Main board big square hole, 2 lateral expansion slots, 1 DB9, 4 USB | Customizable other interface bits | ||||||
| Back | DC In; VGA + HDMI display; 2USB2.0;2USB3.0; 1RJ45 gigabit network port; 2Audio;4 x DB9 unbroken holes | Optional Double Hard Disk Rack | ||||||
| Hard disk rack | 1 hard disk rack, supporting 1x 2.5 inch HDD/SSD | Support MSATA and 2.5 inch dual hard disk | ||||||
| Adapt motherboard | Supports Yanyue HM76/HM86 Mini-ITX motherboards | |||||||
| CPU/GPU | Intel i3 3110M | Support 3th, 4th, 6th, 7th generations desktop CPU or board CPU | ||||||
| Memory | 4G DDR3 | Optional 2G/8G/16G/32G memory | ||||||
| Hard disk | 128G MSATA | Optional 32G/64G/256G Msata solid-state hard disk; supports 2.5 inch hard disks with various capacities | ||||||
| Interface | DC in; VGA + HDMI display; 2USB2.0;2USB3.0; 1RJ45 gigabit network (Standard); 2Audio; | Optional 2LAN (2 less USB), 6COM | ||||||
| Extansion | ||||||||
| Size | 234*202*56mm(Height with padded feet, which cannot be removed) | Net/Gross Weight | 3/3.5KG | |||||
| Industrial Power Supply | Standardized 12V@5A adapter | |||||||
| Installation mode | Desktop mounting; Behind the monitor mounting; Stand mounting | |||||||
| Work and Environment | ||||||||
| Working temperature | -20～60℃ | Storage temperature | -40～75℃ | Environmental humidity | 0~90% air humidity, no condensation | |||
| Vibration | 5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration | |||||||
| EMC | GB9254-2008 class A | Shock | 10g acceleration, 11ms duration | |||||

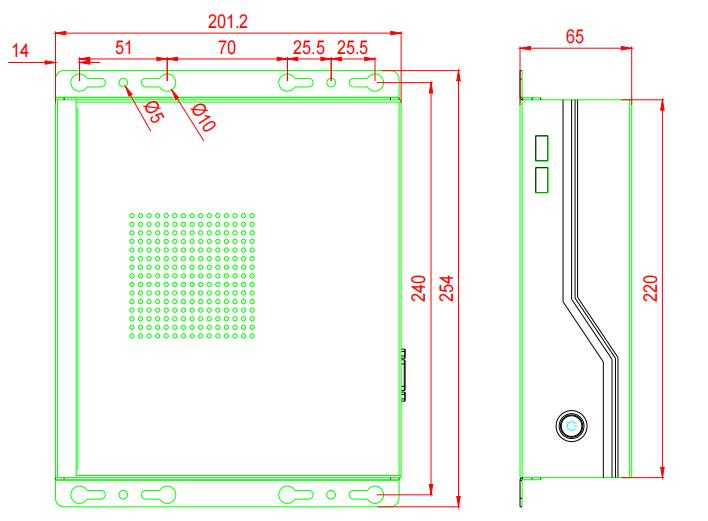

| Installation Dimension Diagram |  | |||||||
FAQ
1.Q: What's the Minimum Order Quantity(MOQ)?
A: Just 1 piece is OK.
2.Q: Are you a factory or a trading company?
A: We are one of the professional computer manufacturers located in Shenzhen, China.
3.Q: What about the after-service?
A: Two-year warranty except human error. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.
4.Q: Can you provide DIY/OEM/ODM service?
A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification.
|
