24 Inch Lcd Monitor Industrial Grade Capacitive Multi Touch Screen

Categories Industrial LCD Monitor
Brand Name: ITD/OEM
Model Number: ITD24CMT501
Certification: CE, FCC, RoHS
Place of Origin: China
MOQ: 1PCS
Price: TBA
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 10000PCS/Month
Delivery Time: 5-15 Business Days
Packaging Details: 1-5pcs/CTN, Safe, Firm
Housing Material: Steel Chassis with anti-rust, VESA mounting
Brightness: 300cd/㎡
I/O: VGA, HDMI inputs, USB port, DC input
MTBF: 50000Hours
Operating Temperature: -10~60℃
Touch screen: capacitive multi touch screen
24/7/365 Use: Supported
Resolution: 1920 x 1080
Warranty: 2 years
Keywords: 24 inch lcd monitor
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

24 Inch Lcd Monitor Industrial Grade Capacitive Multi Touch Screen

24 inch lcd monitor industrial grade capacitive multi touch screen


BASIC PARAMETERS of 24 inch lcd monitor

2. 1 General

Article24” Industrial Chassis LCD Monitor
IPIP65(for front panel only) optional
Weight(N.W/G.W)6.23Kg / 8.11Kg (Approx.)
LCD Type23.8"Active matrix TFT-LCD
Video InputVGA and DVI-I, HDMI, Audio
Recommend Resolution1920×1080@60Hz,75Hz
OSD controlsAllow On-Screen Adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Power InputDC 12V Power Plug; DC 9-36V input, AC100-240V input optional
Power Consumption40W
Mount InterfaceVESA 75×75/100×100mm
Regular Warranty1 Year for TFT panels; 2 Years for others.
Agency ApprovalFCC,CE,RoHS Certified
OptionalAR/AG Tempered glass; High brightness, sunlight readable; AV, S-Video inputs, RS232 remote control; Custom-design
Order Information24”chassis monitor no touch/ITD24CMN101
24”chassis monitor with IR touch/ITD24CMT201
24”chassis monitor with SAW touch/ITD24CMT301
24”chassis monitor with PCT touch/ITD24CMT501
24”chassis monitor with tempered glass/ITD24CMG101

2. 2 LCD Specification

Active Area(mm)527.04(H) x296.46(V)
Resolution1920×1080
Pixel Pitch(mm)0.2745×0.2745
Nominal Input Voltage VDD+5V(Typ)
Viewing angle (L/R/T/B)89°/89°/89°/89°
Contrast1000:1
Luminance(cd/m2)250
Response Time(Rising/Falling)14ms
Support Color16.7M
Screen Scanning60Hz
Backlight MTBF(hr.)50000h

2.3 Touch Screen Specification(optional)

TypeProjected Capacitive Touch Screen
Surface Hardness7H
Light Transmission85%±5%
Touch Life Cycle50 million times
Touch Response time5ms
Touch System InterfaceUSB A type (USB B type optional)
Operating System Support

Plug and Play for Windows 7/8/10,Linux Kernel 3.18.12 or above

Drivers for Windows CE/XP, Mac, Android

2.4 External AC Power Adapter

Output12V DC/5A
Input100-240 VAC, 50-60 Hz
MTBF50000 hr at 25°C

2.5 Environment

Operating Temp.-10~60°C
Storage Temp.-20~70°C
Operating RH:20%~80%
Storage RH:10%~90%
Anti-Vibration5Hz-500Hz / 1Grms/3 Axis (optional)
Anti-Shock15G, 15ms Duration (optional)

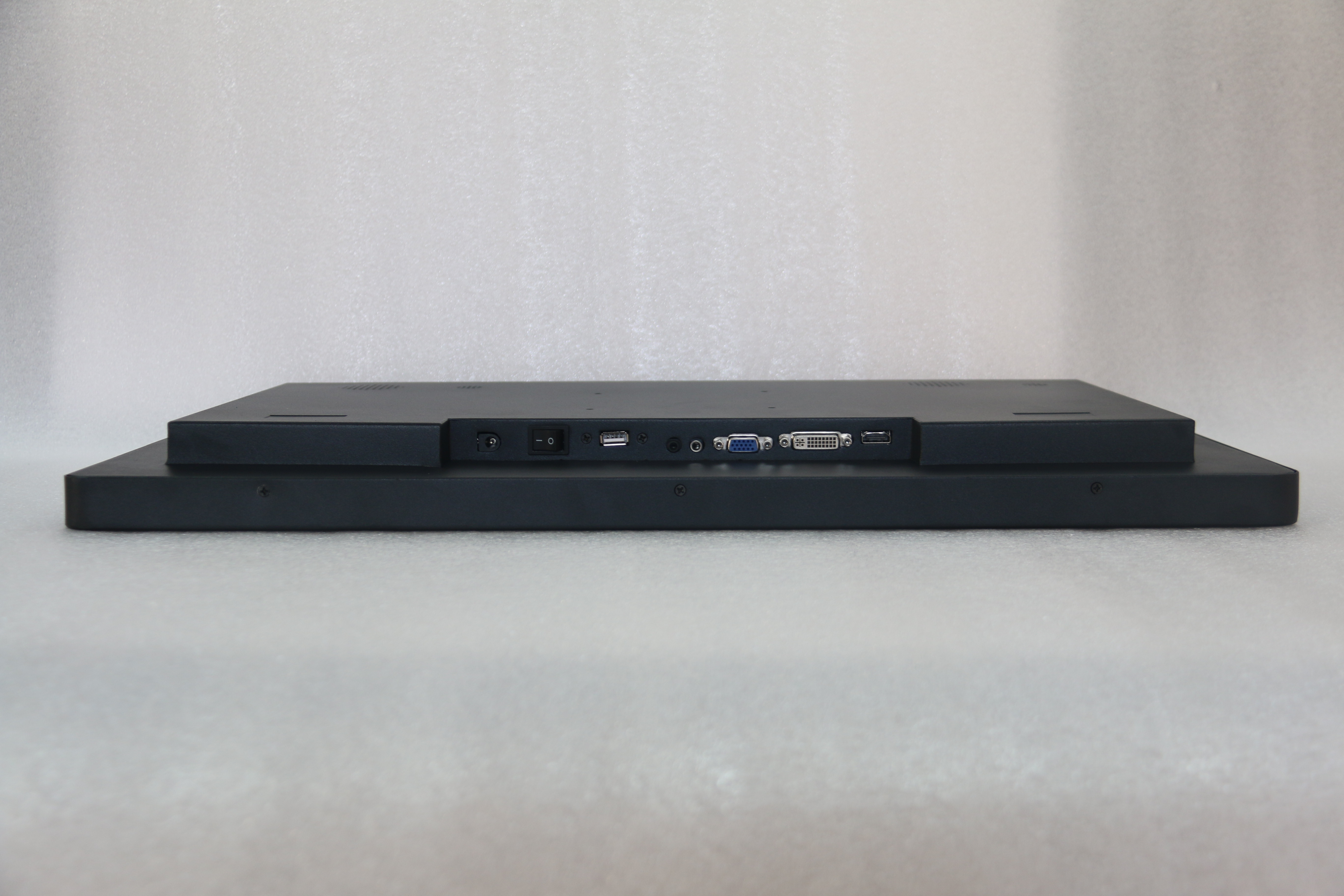

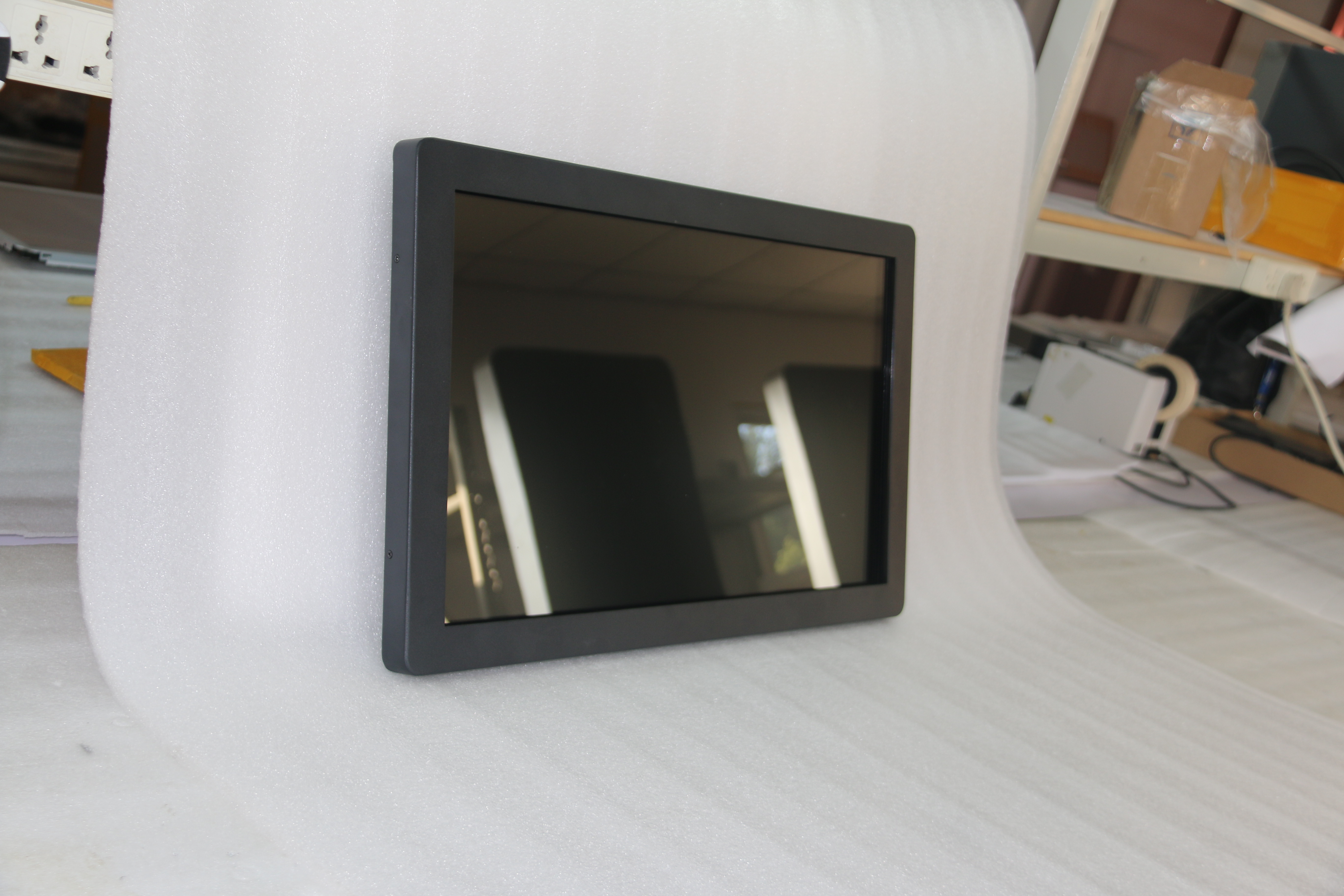

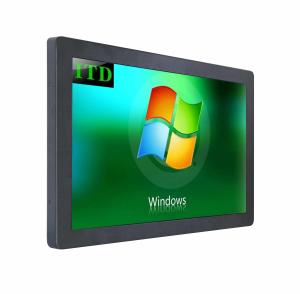

Pictures of 24 inch lcd monitor
