| Categories | HMI Control Panel |
|---|---|
| Brand Name: | Coolmay |
| Model Number: | TK6050FH |
| Certification: | CE |
| Place of Origin: | CHINA |
| MOQ: | 1 pcs |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGra |
| Supply Ability: | 100,000 Sets per month |
| Delivery Time: | 3-8 working day |
| Packaging Details: | Packed with standard carton box |
| Resolution (pixels): | 800*480 |
| Brightness: | 300cd/m² |
| ROM: | NOR Flash 16MB |
| Dimension: | 151*96*36mm |
| Display size: | 108*65mm |
| Humidity: | 20%～90% RH |
| Company Info. |
| Shenzhen Coolmay Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

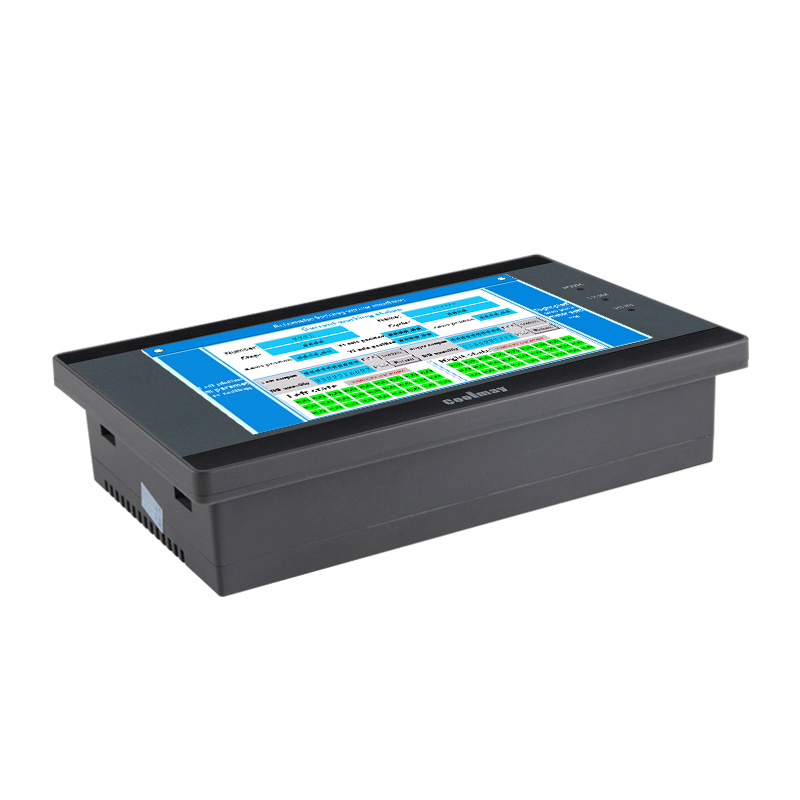

65536 Colors 800*480 Pixels Coolamy HMI Control Panel TK6050FH For Automated Industrial
INFORAMTION OF TK6050FH HMI Control PANEL:
Parameter of TK series HMI Contral Panel:
| MODEL | TK6050FH | |
| SPECS | Dimension | 151*96*36mm |
| Cutout size | 143*86mm | |
| Display size | 108*65mm | |
| Weight | Appox. 0.33 kg | |
| DISPLAY | Display | 5" TFT |
| Resolution | 800*480 pixels | |
| Brightness | 300cd/m2 | |
| Contrast ratio | 400:01:00 | |
| Backlight | LED | |
| Backlight time | 60,000 hours | |
| Display color | 65536 colors | |
| Touch type | 4-wire resistive panel | |
| STORAGE | ROM | NOR Flash 16MB |
| RAM | 64MB (HMI when stores historical data, optional ferroelectric is required) | |
| CPU | 32bit CPU 408MHz | |
| INTERFACE | Download port | Type-C, RS232, RS485 |
| COM port | 1 RS232, 1 RS485 | |
| Optional | 1 WIFI (occupy default RS485 port) | |
| Protocol | Support MODBUS, free port and common PLC communication Protocol | |
| OTHER | Calendar | Yes |
| Input Voltage | 12-24VDC±10%<150mA @ 24VDC | |
| Consumption | 85mA/24V | |
| Protection Class | IP65 (front panel) | |
| Temperature | Ambient environment: 0～50℃ Storage environment: -20～70℃ | |
| Humidity | 20%～90% RH | |
| Certification | CE | |
| Software | CoolMay TPwords HMI programming software | |
Product Features:
Packaging:
The products will be under testing for 1-3 days and packed with carton box .
By courier, door to door
For samples, the package will be delivered by DHL/UPS/FedEx/EMS
express. Usually it will take 3-7 days to your location.
Post service
If you are not hurry but need economical delivery, we can go with
packet channel. The delivery time depends on your location.
Air shipping or by sea
If bulk order, the packages will be delivered by air shipping or by
ship.
Maintenance and service
FAQ
1) Are you a manufacturer or trade company?
We are manufacturer of PLC,HMI,HMI PLC combo and other industrial
products for over 16 years, we have engineers for study & design
and workers for produce and operate etc, we could support you
one-stop products and service.
2) Do you have a CE certificate?
Yes for the products we exported, we could offer the CE for your
Customs.
3) How long about the delivery?
It depends on the order details, and usually, we could support the
delivery within 2-7 working days after payment confirmed.
4) Payment terms:
We accept TT Bank Transfer, Paypal, Credit Card on Alibab, Western
Union ect.
|
