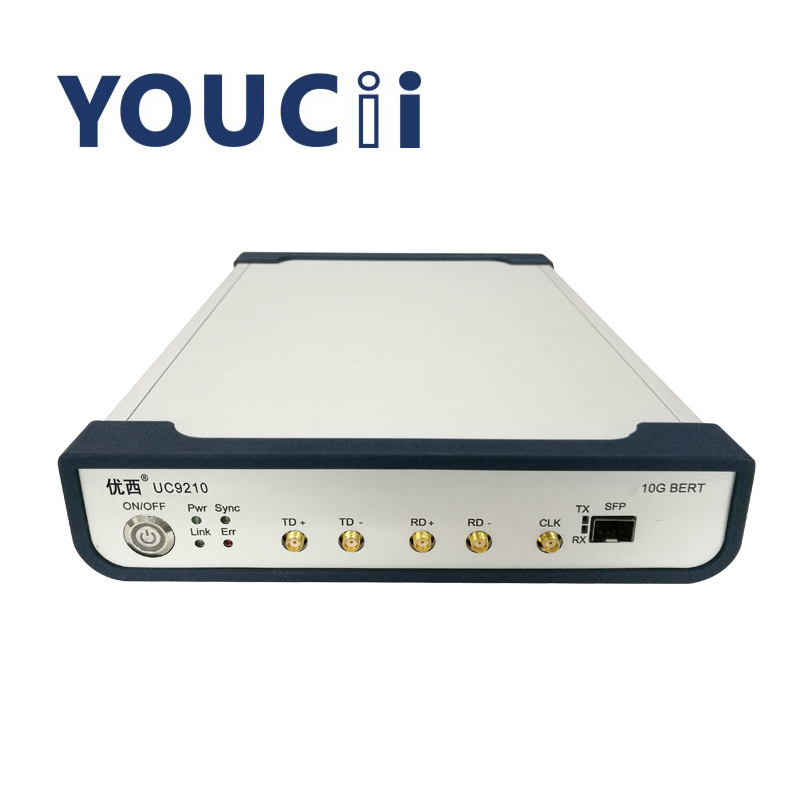

10G Full Rate BERT Tester One Electric And One Optical Dual Channel

10G Full Rate BERT One Electric And One Optical Dual Channel

UC9210A 0.622 Gbps 1.25 Gbps 2.125 Gbps Optical Modules BERT Tester One SFP Optical Channel

Performance character:
One SFP optical channel and One electric channel, Two channels synchronous input and output, Error Code testing can be independent.
Support for continuous error detection and timing error detection.
Support Full Rate from 622M up to 11.7Gbps；
Support code type: PRBS7 / PRBS 9 / PRBS 15 / PRBS 23 / PRBS 31
One channels low jitter clock output, the optical channel and the electric channel share one clock, the two channels clock synchronization.
Communication Mode USB HID or USB-COM.

Technical parameters

Ac Power Supply Requirements

The instrument complies with overvoltage class II regulations. The operating voltage is 100 ~240V AC voltage, frequency range 48-66Hz, operating voltage 115V When, the maximum consumption current is 230mA; Operating voltage 230V, the most
The maximum consumption current is 120mA.

The power cord

According to international safety standards, the instrument is equipped with a 3-core power cord that meets national standards. Only connect the power cord Plug into a power outlet with ground protection.

Power indicator

The power indicator lights up when the instrument is powered on.

Communication Interface Description

There are two communication ports on the back panel of the instrument, namely USB interface and RS232 interface.

The USB interface

USB interface is a standard 4-core B-type interface, which can be connected to the instrument and PC, and the instrument can be controlled by monitoring software.

FAQ
Q: Are you a factory manufacturer?
A: Yes we are manufacturer with 13 years experience in this industry and supplied many good quality products.
Q: Where is your main market?
A: Asia, Europe, America, Middle-East, Africa and other countries and regions.
Q:What is your minimum order quantity (MOQ)?
A: As a standard policy, we accept MOQ of 1set, and mixed items available, it still needs to confirm with our sales according to different product lines.
Q: Can I customize the size and color of the case?
A: Yes. We can discuss it .
Q: Can I buy some samples first before main orders? Is the sample fee refundable?
A: Yes, sample fee and shipment fee should be paid in advance .
Q: How long is the Production Lead Time?
A: 5 days for stock products, different products have different delivery times, according to the actual situation.
