OEM Cooled Camera Module With MWIR MCT 1280x1024 12um Infrared Detector

EYAS1212 is a high resolution analog-digital cooled infrared module based on 1280x1024 formats 12μm pitch IR FPA.

This AD module includes a proximity board that provides the FPA timing, and the sensitive power supplies. In addition, the Camera Link interface outputs 16bit raw data which highly simplifies the integration of the detector to the system.

Therefore, EYAS1212 AD module makes it easy for OEM customers to carry out fast acceptance test on GST C1212M 1280x1024@12μm cooled infrared detector, start rapid secondary development and shorten their development period of cooled infrared modules or complete infrared thermal cameras or systems based on cooled infrared detectors.

Equipped with high performance signal processing circuit, EYAS series cooled AD module is applicable to all MCT&T2SL cooled infrared detectors by GST.

High Performance Cooled Infrared Detector
• High thermal sensitivity with best NETD＜18mk

Easy to Develop & Integrate
• Cameralink interface output 16bit raw data, serial port control
• Integrated structure that has consistent dimension with detector

Capture High Speed Moving Target
• Output frame frequency is adjustable at 1~100Hz

The EYAS1212 thermal imaging module is widely used many areas such as Remote Monitoring System, Flight Vision Enhancement System, Multi-sensor Payload etc.

1. What is a cryocooler used for?
Cryocoolers are machines that keep sensors extremely cold so that thermal images can be taken on long-term missions. In many high-end applications, the sensors that capture images require extremely low temperatures.

2. What are the main factors to measure the quality of Cryocooler?
Long battery life and reliable operation are main factors to measure the quality of a cryocooler. GSTiR cryocooler has a wide operating temperature range and excellent reliability. Its MTTF (Mean Time to Failures) has reached to 10,000 hours, which meets 24*7 boot operation requirements.

3. What is MTTF?
MTTF (Mean Time to Failure) measures a part’s reliability. It shows you how long on average a part lasts before it breaks and you have to replace it. On a basic level, it tells you about the quality of the parts you’re buying. The longer they last, the more value you’re getting from them.

COMPANY INTRODUCTION

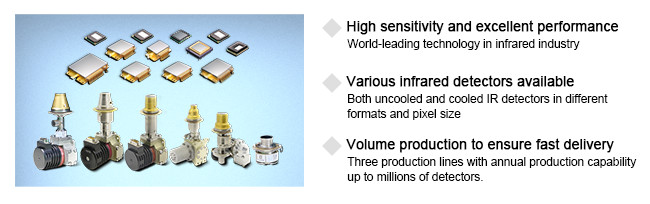

Global Sensor Technology is the world leading infrared detector manufacturer and service provider with more than 10 years of industrial experience. It is willing to provide customers all over the world with high performance cooled uncooled thermal imaging detectors, infrared camera modules and share its professional application experience.
